High Accuracy_Tiny Laser Range Finding Sensor_JRT

150m Golf Rangefinder Sensor USB

Golf Rangefinder Sensor with 150m has been widely used to industries. The resolution of our BA6A laser distance snesor is 1mm, with measuring range from 0.03 to 150 metres.  If users needed, we can also connect USB, RS232, Bluetooth, RS485 laser distance sensor for them.

Feedbacks:
Customer to Emma Wang:
Jxx & Emma,
Thanks to both of you for fighting the shipping dragons that are guarding our little laser range finders as if they were diamonds. To our project, they are diamonds, so thank you again.
Dxx

Technical Parameters:
Range: 0.03 m -150 m
Invisible measuring: 620nm-690nm
Measuring accuracy: +-3 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth

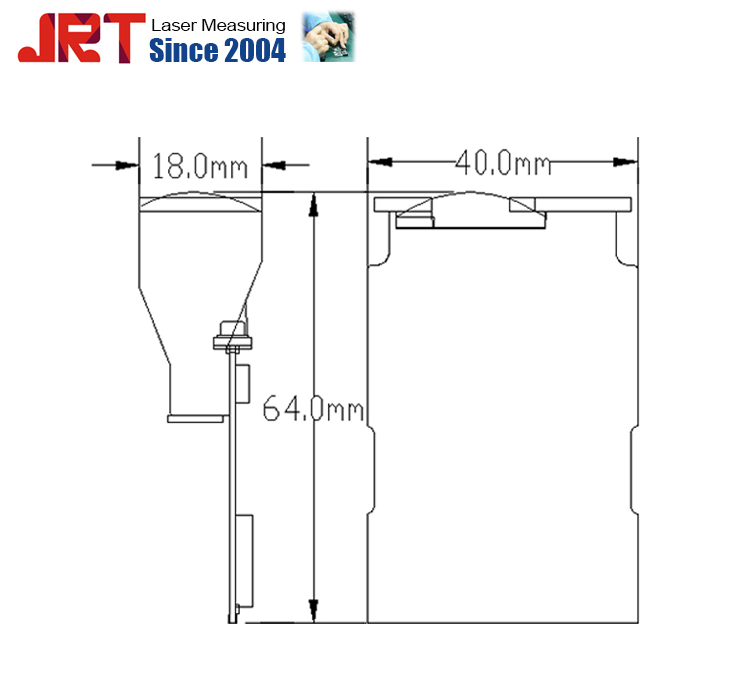

Size: 64*40*18mm
Voltage: DC2.0~3.3V
Electrical Level: TTL/CMOS
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

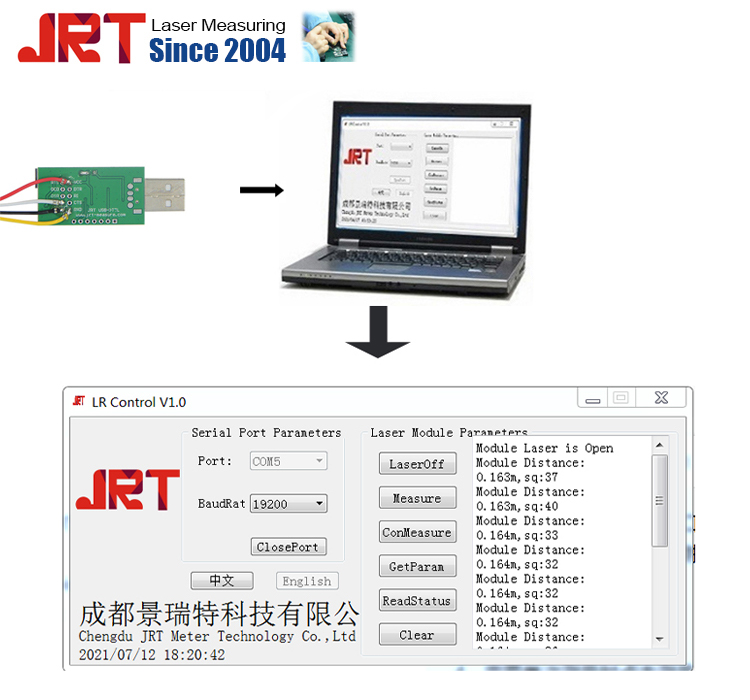

How to test the150m usb laser rangefinder sensor?

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.

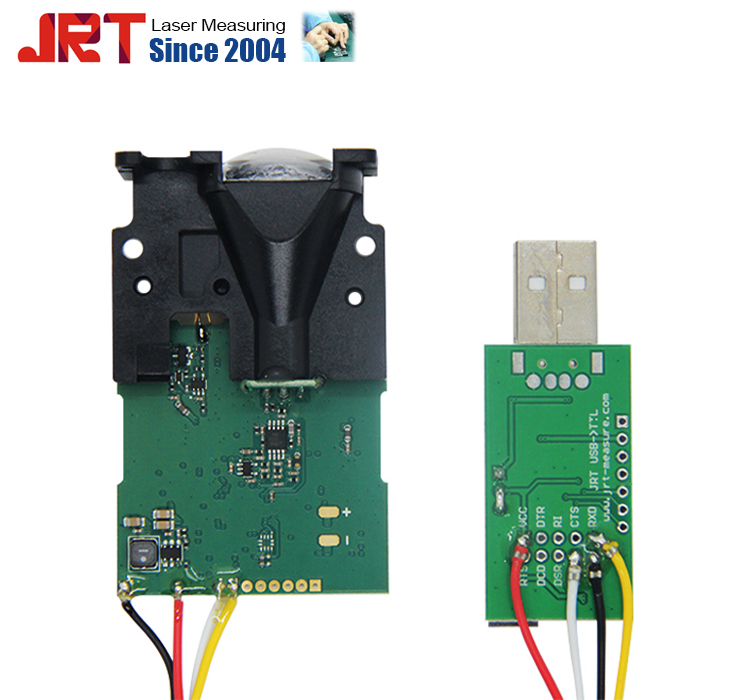

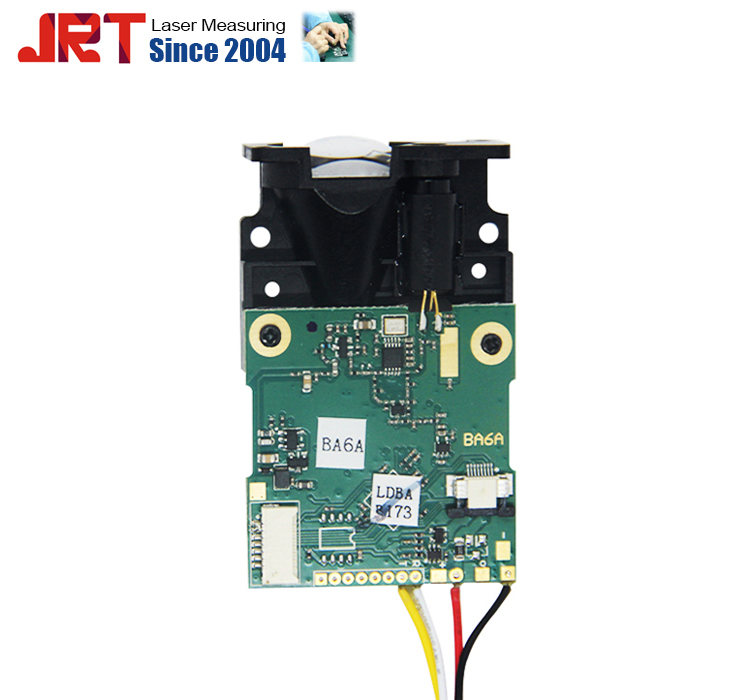

More Detailed Pictures

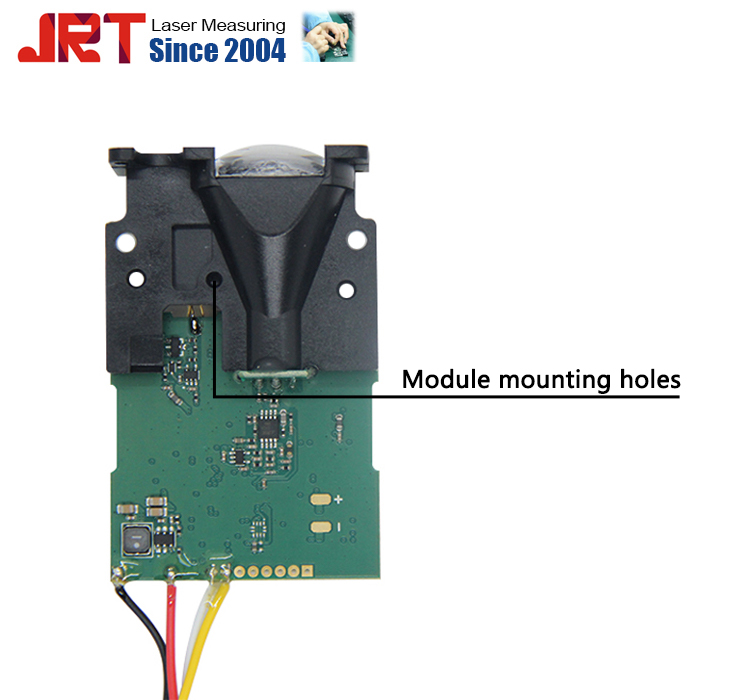

How to install the distance sensor?

Why Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 150m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor , Tof LiDAR Sensors.
