Multifunctional electric instrument

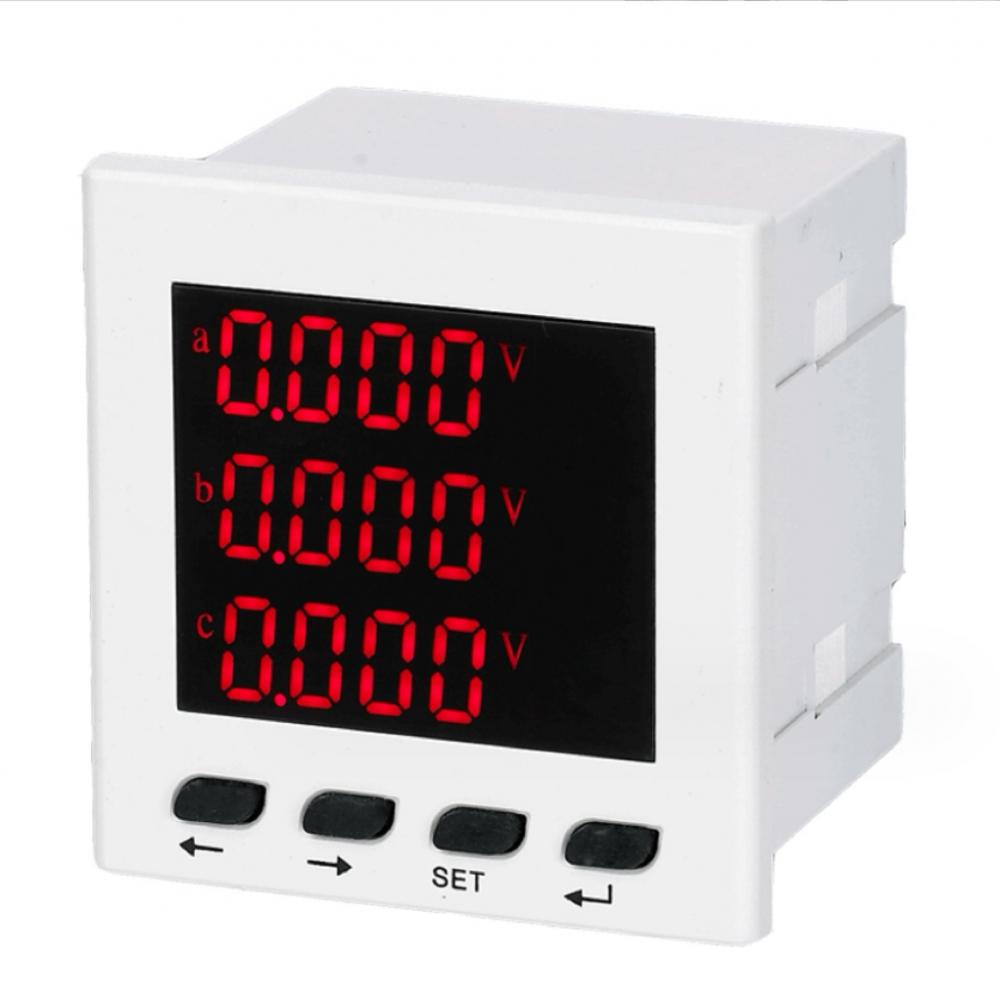

Digital display multifunctional power instrument

  Digital display multifunctional power meter is an instrument used to measure and monitor power system parameters. It has a digital display that can visually display voltage, current, power, power factor, frequency and other power parameters.
Performance Requirement:

1. Basic error: should meet level 2.0,
Acceptance error limit: Under the specified reference conditions and meeting the requirements of technical regulations, our bureau will accept 50% of the error limit specified in the verification regulations.
Error limit during operation: Meet the technical specification requirements under the specified reference conditions
2. Limit of error change caused by other influencing factors: The additional percentage error change caused by changes in the influencing factors relative to the reference conditions given in the regulations should not exceed the limit specified in the regulations

Working conditions:
1. Standard reference voltage: 220V
2. Standard reference current: 5A, 10A, 15A, 20A
3. Maximum current: 4 times or more of the rated current, and operate at 1.2 Imax for 1 hour. The digital instrument should not be damaged
4. Standard reference frequency: 50Hz

Digital meter model number	Shape code	Face frame size	Opening size	Total meter length
42quadrate	120	120×120	111×111	85
6quadrate	80	80×80	76×76	85
61quadrate	72	72×72	67×67	85
microgroove	48	96×48	91×45	85
microsquare	45	48×48	45×45	85
9quadrate	96	96×96	91×91	85
