industry automation laser distance sensor
5 month ago
Industrial Long Range IP67 Protection Phase Distance Sensor, high accuracy, high frequency, high stability laser distance measuring sensor.Communication Port Supports TTL, UART, USB, RS232, and RS485.
|
Product Name
|
IP Protection Phase Distance Sensor
|
|
Protection Grade
|
IP67
|
|
Resolution
|
±2mm
|
|
Range of Measurement
|
0.03-100m
|
|
Measuring Time
|
≥0.3s
|
|
Laser Class
|
Class II
|
|
Laser Type
|
635nm, <1mW，Red visible laser
|
|

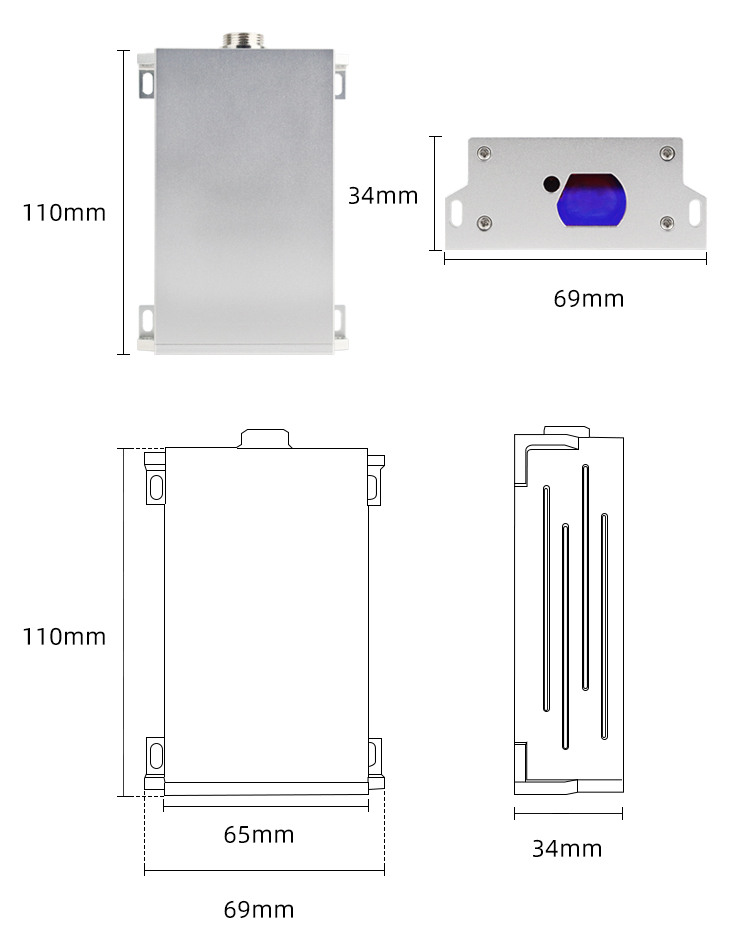

Size
|
110*69*34mm
|
|

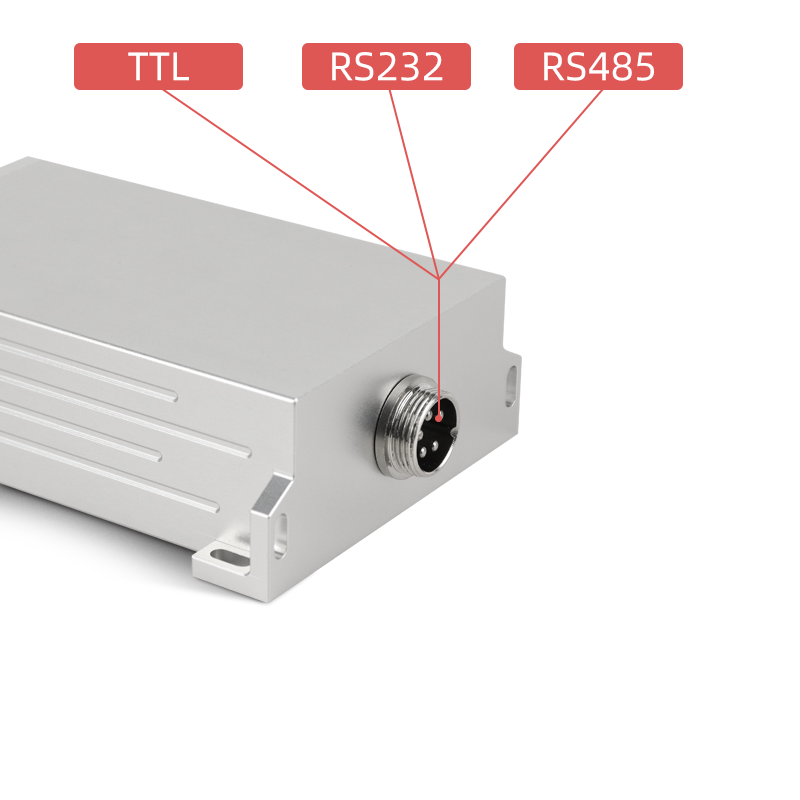

Data Interface
|
TTL/RS232/RS485/4-20mA
|
|
Weight
|
405g
|
|

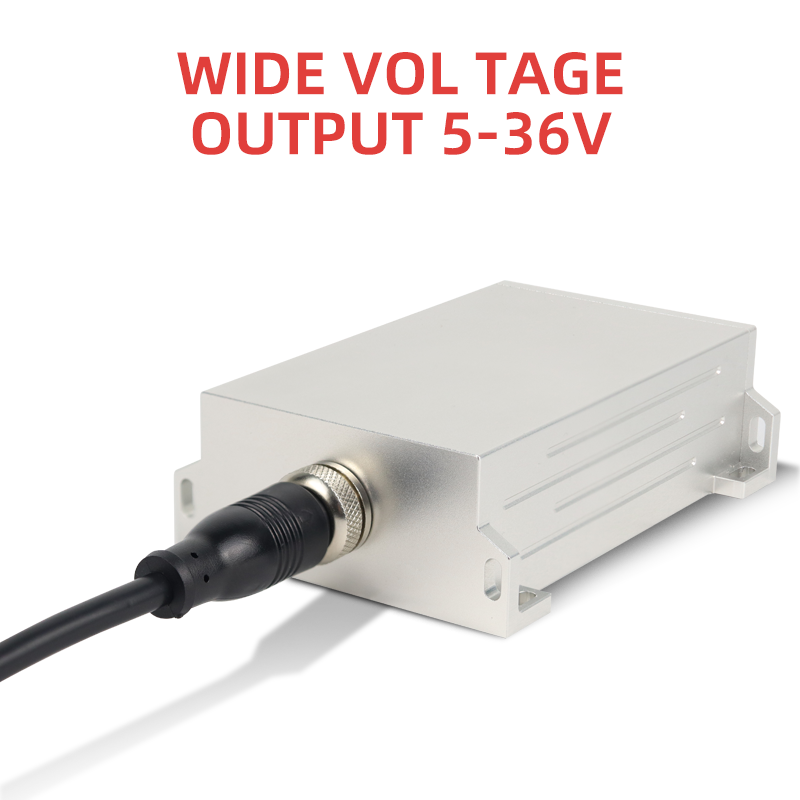

Voltage
|
DC6~336V
|
|
Operating Temperature
|
-20~+60℃ (Can be customized)
|

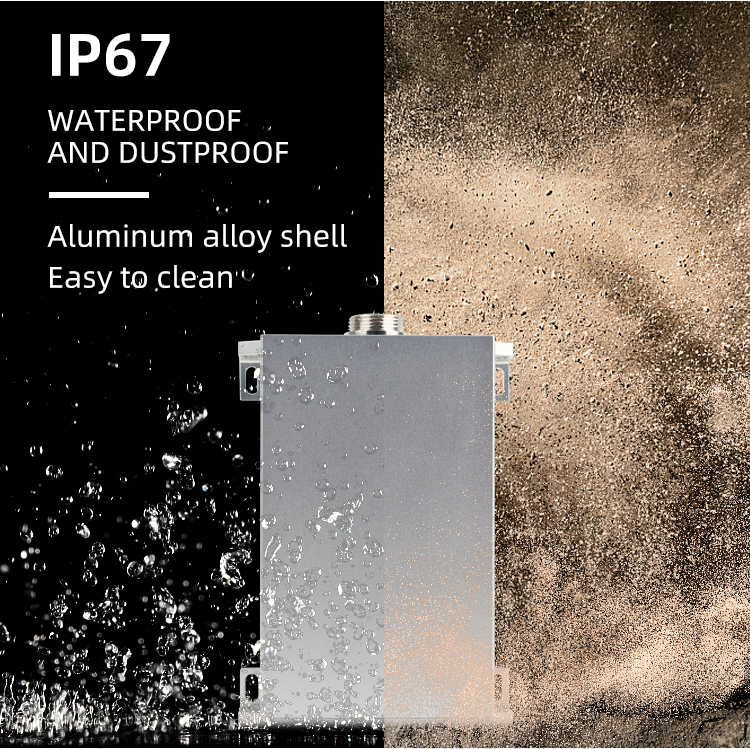

IP67 Protection Phase Distance Sensor:Industrial Long Range IP67 Protection Phase Distance Sensor, high accuracy, high frequency, high stability laser distance measuring sensor.The IP67 standard refers to the protection safety level. IP stands for Ingress Protection Rating (or International Protection code). IP67 in the 6 refers to the dust can not enter the object of the whole diameter can not exceed the clearance of the shell; 7 refers to normal temperature and pressure, when the shell is temporarily immersed in 1M deep water will not cause harmful effective.
The IP67 standard refers to the protection safety level. IP stands for Ingress Protection Rating (or International Protection code). IP67 in the 6 refers to the dust can not enter the object of the whole diameter can not exceed the clearance of the shell; 7 refers to normal temperature and pressure, when the shell is temporarily immersed in 1M deep water will not cause harmful effects.

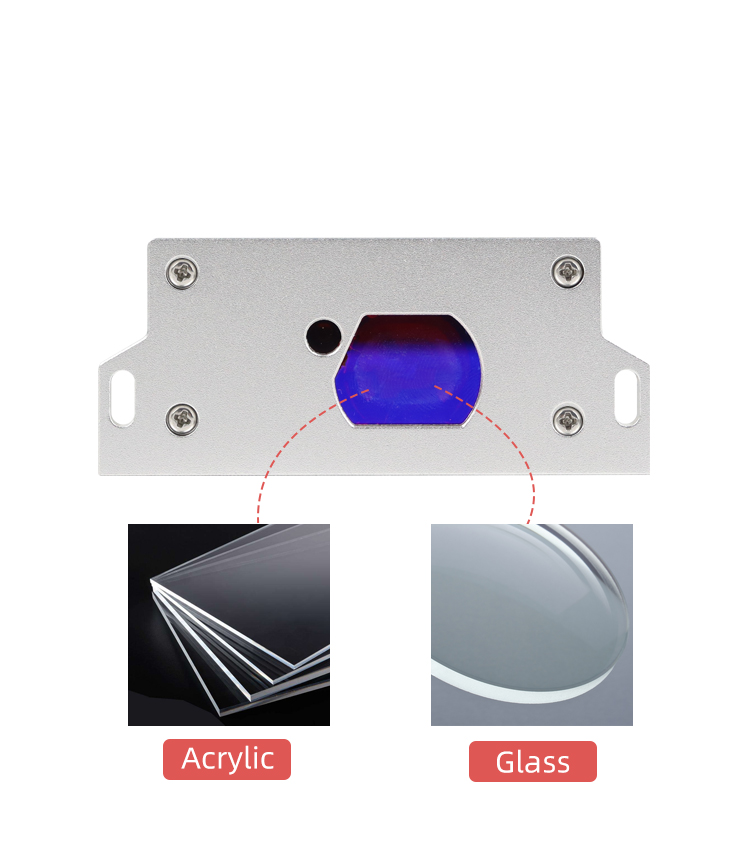

Acrylic lenses are used by default, and glass lenses can be customized for different application scenarios.
If you need Long Range Laser Distance Sensor, we have Pulse Ranging Sensor.
We have different kinds of ranging modules, such as:IP Protection Sensors,TOF Laser Distance Sensor,2D 3D radar Sensor and so on.
