IP67 Case RS485 Sensor LiDAR for Drones
IP67002-b2102231 is a high protection level up to IP67. This is a wide range of LiDARs measuring 100 meters. Customers used our for their intelligent measurement solutions, like monitoring the drones height, cars distance detecting etc. How about you? Would you like to know more applications?
If need more help, please contact us ASAP, we will sssist you.
FQAs may help you:
1. Question: Hello, we are currently building a new product,the product will be used for measuring and set up of car’s suspension.Can you please recommend the best matching sensor from your side?
Answer: Sure, please tell us more of your requirements(distance,interface etc.), so we would like to select for you.
2. Question: Can you share test results of your products regarding distance accuracy?
Answer: That's ok, please tell us your email.
That's helpful for our discussion.
Thanks.
Why Us
Chengdu JRT Meter is the factory of laser measure modules sensors since 2004. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.
Product pictures

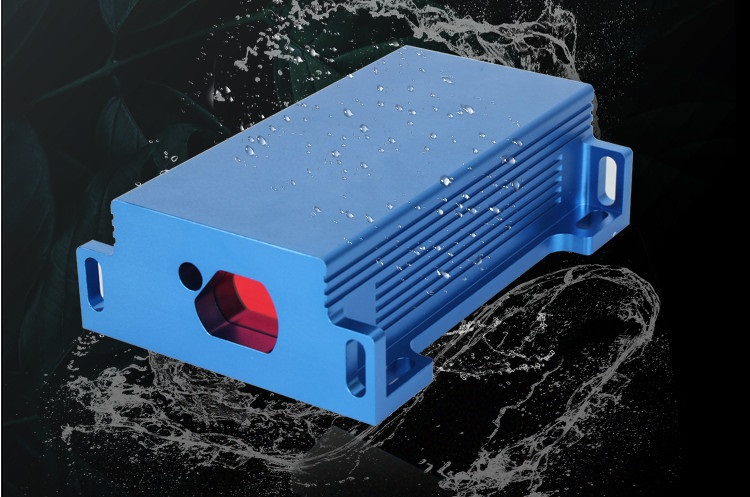

IP67 LiDAR Sensor Front

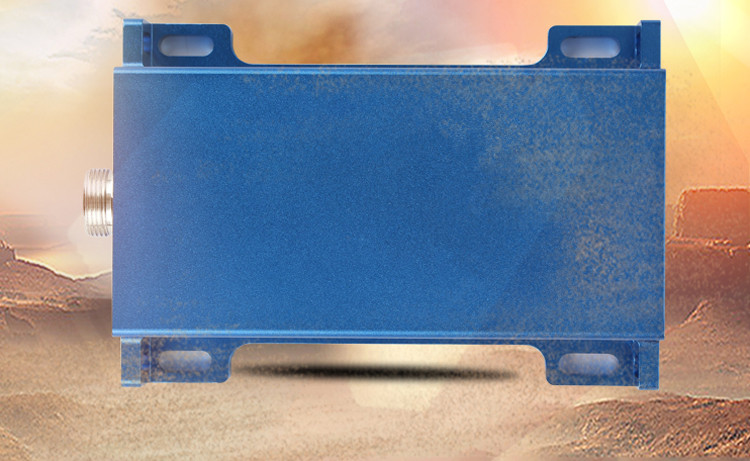

IP67 LiDAR Sensor Back

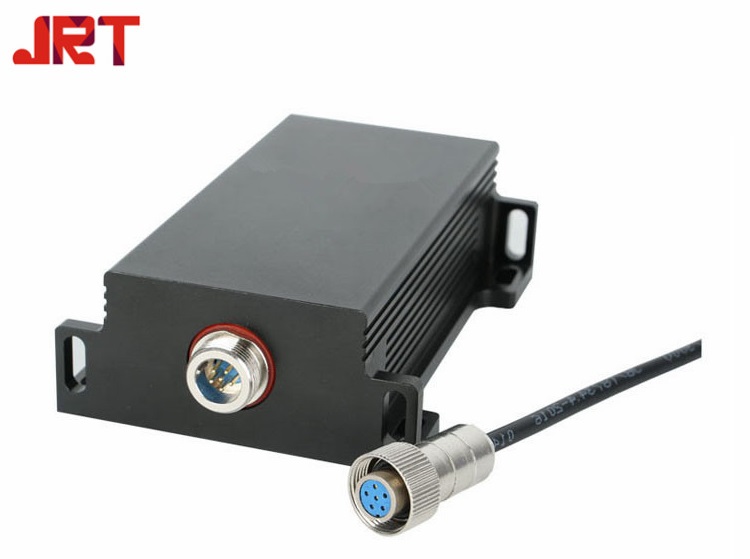

IP67 LiDAR Sensor Connectors
Technical Datasheet
Range: 0.03 meters - 100 meters(150 max need customize)
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-3 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 122*84*37mm
Working temperature: -10 ~ 50 degree
Storage temperature: -25 ~ 60 degree
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customize
IP67 LiDAR Sensor Diagram

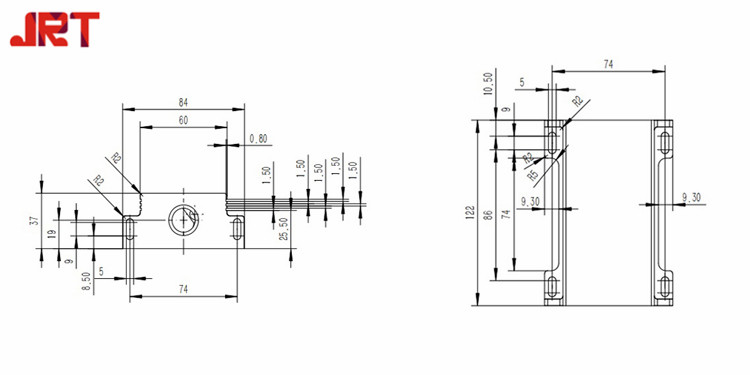

IP67 LiDAR Sensor Size

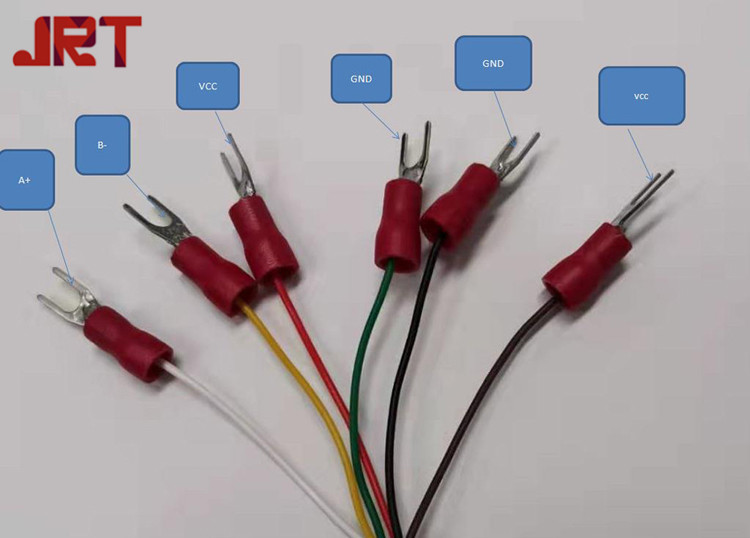

IP67 LiDAR Sensor Wires
How to order JRT laser distance sensor?
