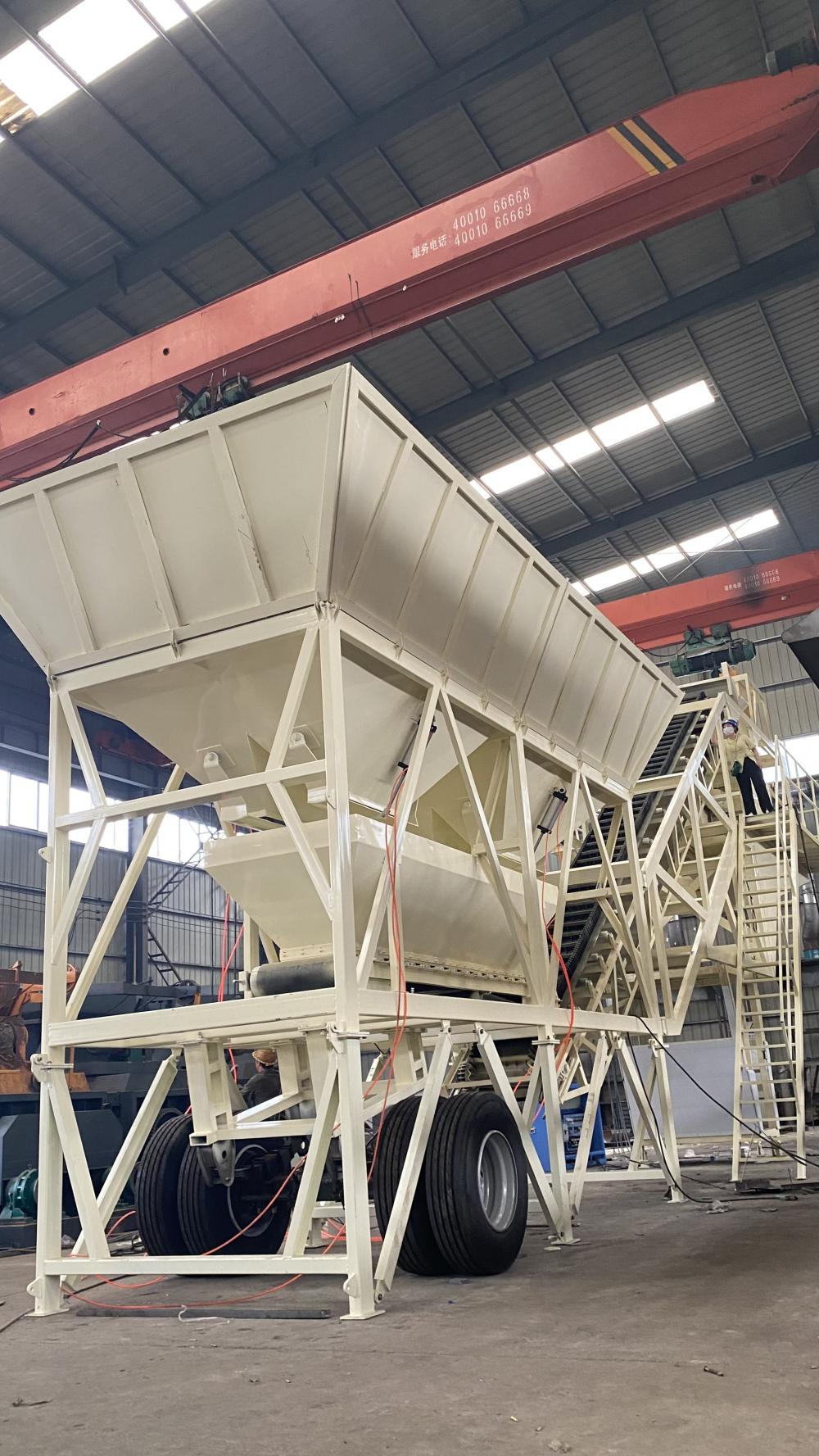

Small Productivity 25cbm/hour Concrete Batching Plant
High Efficient 25cbm/hour concrete batching plant is a small concrete mixing equipment which named as 25cbm/hour batching plant. It is a semi-automatic concrete mixing machine composed of feeding system, batching system, mixing system, electrical control system and steel structure components. 25cbm/hour new type concrete batching plant is developed with the latest technology at home and abroad. It is suitable for customer’s needs of small construction sites, precast plants and commercial concrete plants, and also used for concrete supply for high mobility projects such as railways and highways.
|
Technical Parameters |
||
|
Model |
HZS25 |
|
|
Global Parameters |
Max productivity (m3/h) |
25 |
|
Discharging height(m) |
1.5-4.2 |
|
|
Working cycle time(s) |
72 |
|
|
Outline dimension(mm) |
11693×13060×17245 |
|
|
Total power(kw) |
57.25 |
|
|
Concrete Mixer |
Model |
JS500 |
|
Batcher |
Model |
PLD800 |
|
Pneumatic system |
Air compressor |
1.0–7 |
|
Discharge pressure(MPa) |
0.8 |
|
|
Displacement (m3/min) |
1.67 |
|
|
Motor power（kw） |
5.5 |
|
|
Measurement system |
Aggregate weighing accuracy |
±2% |
|
Cement weighing accuracy |
±1% |
|
|
Water weighing accuracy |
±1% |
|
|
Additive weighing accuracy |
±1% |
|
Our company is specialized in producing large and medium-sized construction machine, and adhere to the management idea of "quality achieves the dream".
Our company have more than 40+years experience on import and export business of construction machinery
