2S200-20 Stainless Steel Solenoid Valve
2 year ago
2S200-20 3/4 Inch Water Control Solenoid Valve 220VAC
Product introduction
This is a water control equipment, 3/4 inch stainless steel water solenoid valve, 2/2 way normally closed type, 20mm orifice size. And it has various voltage for you to choose, such as 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, etc. It can change direction quickly and has large flow. Its valve diaphragm sealing materials have NBR, EPDM, VITON with high temperature type. Compact, small and lightweight are its advantages and it is easy to install and dismantle.

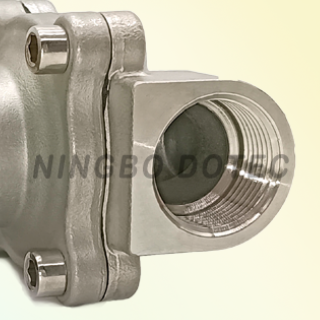

Stainless Steel valve body
The body of 2S200-20 is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.

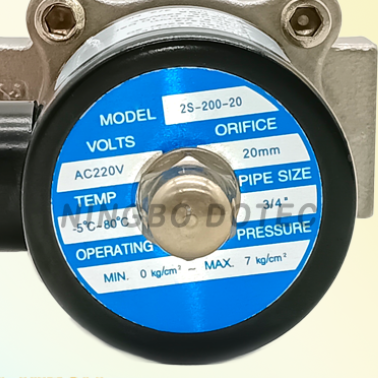

Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.

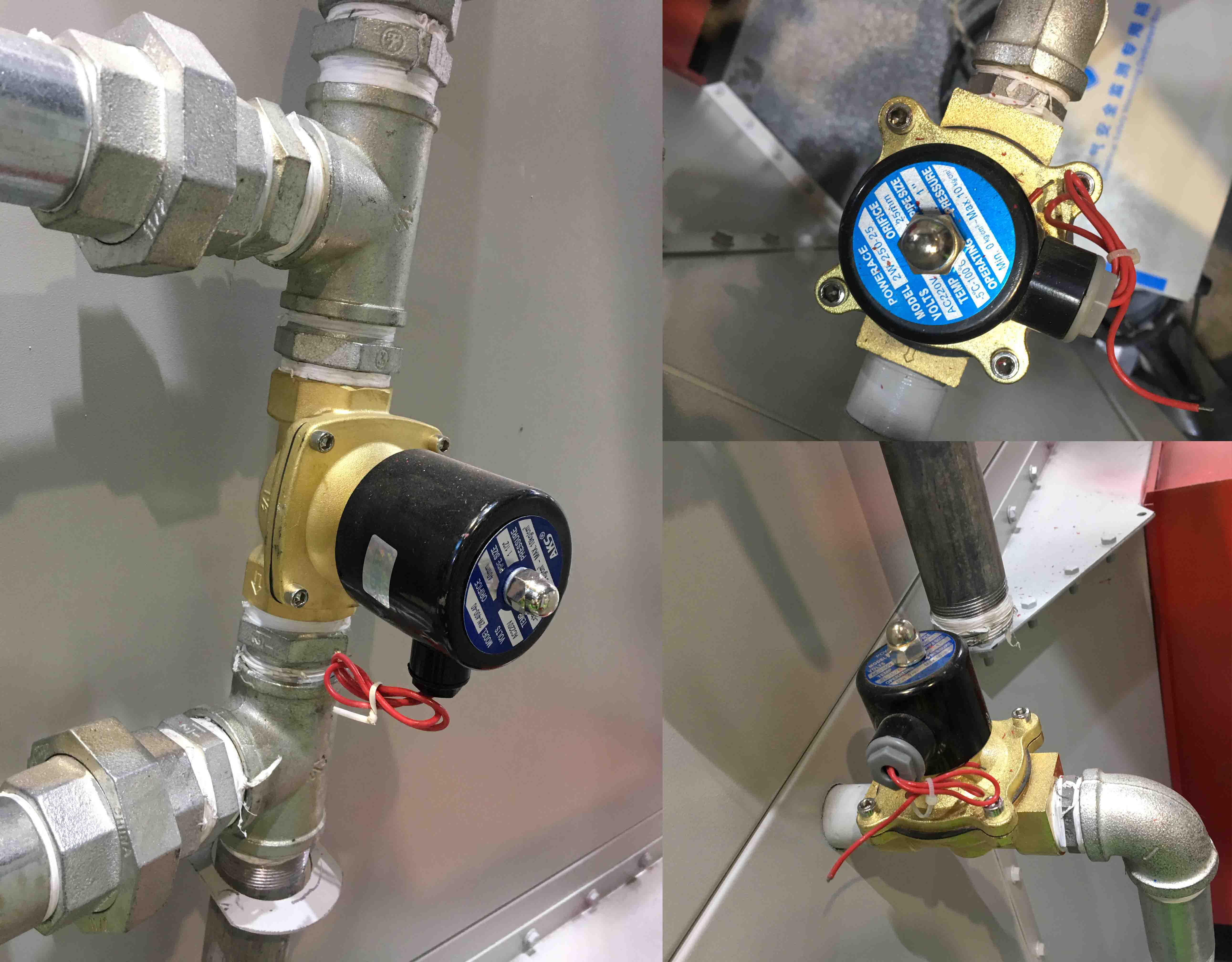

Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
Port Size (Inch) |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
|
Orifice Size (mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

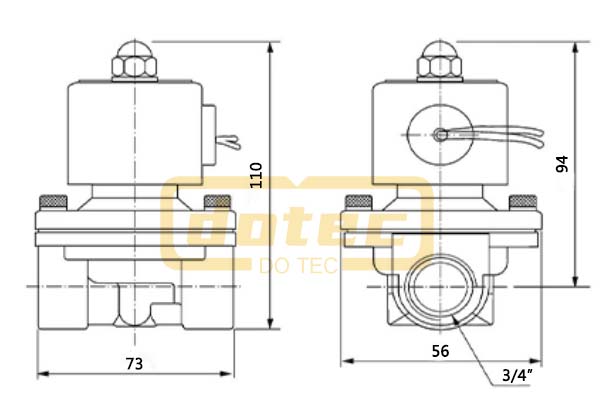

2S200-20 Dimension
