jacquard machine

S&S is China’s leading high speed electronic jacquard loom machine manufacturer. The S&S SEJ168S-2688 electric jacquard has high cost effective performance. It is a type of automated jacquard machine in highly advanced manufacturing facilities to weave numerous fabric quality such as flat fabrics, trademark weaving, bedding, design fabrics, curtain cloth, sofa cloth, rugs, terry, sari, garment fabric, ling fabric, silk fabric, shawls, blankets, stolls and many more. This model of electronic jacquard machine is applied to various types of factories which make fabric and textile production. It is easily synchronised with power loom machine, rapier loom, air jet loom, water jet loom, shuttle loom and projectile loom.

Applicable to：

Rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom with any reed width.

Weaving Products:

Label, tie, upholstery fabric, curtain fabric, shading fabric, sofa cloth, bedding cloth, towel, carpet, velvet, garment fabric, sari fabric, silk fabric, lining fabric etc.

Hooks: 2688

Shed Opening: 55-120mm

Max Speed: 850 rpm

Advantageous Features：

1. The low power axial-flow fans ensure stable working condition to electronic system.

   Sealed fuselage, optimised filtration and ventilation system can effectively prevent flying flowers into the system.

2. Hollow type of core parts with light inertia, high speed and low torque are more suitable for making large and heavy design fabrics.

3.  All main driving components of digital jacquard machine are standard parts. The transmission efficiency of chain is as high as 96%. The bearing capacity and service life of enforced self-lubricating chain of jacquard weaving loom is 5 times than that of ordinary chain. The casting wallboard has a good mechanical properly. It helps to decrease the vibration and reduce the noise.

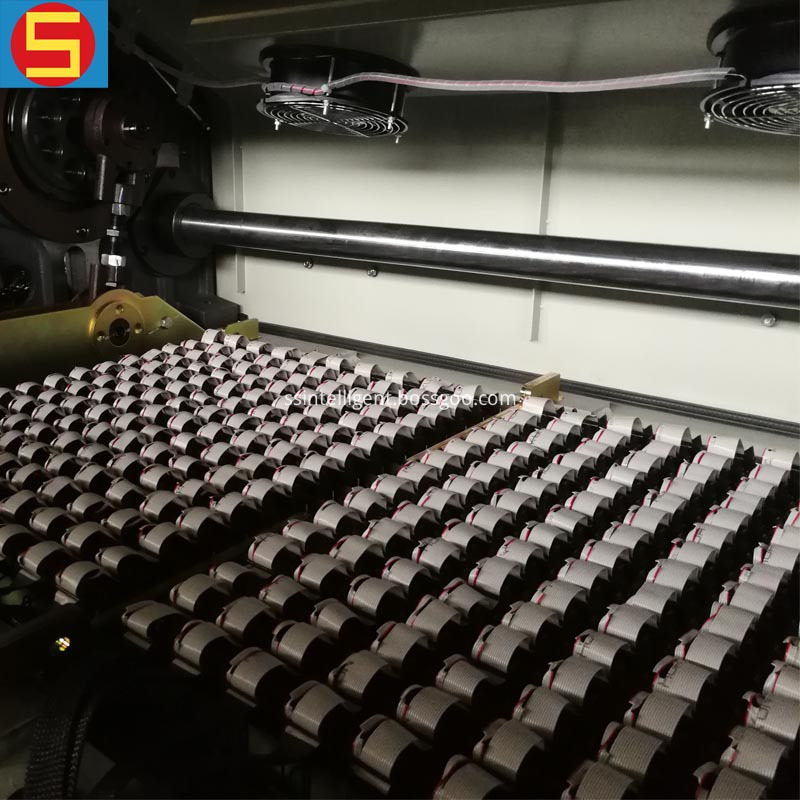

4. The core hook components of the jacquard loom machine use sealed and low-power consumption electromagnet.It saves energy and has high efficiency. All digital jacquard looms adopt high quality harness which have extreme wear-resistance and corrosion resistance. There are two types of pulley you could choose to use in the hook component. One is pulley with bearing, another is pulley without bearing. The bearing capacity of pulley with bearing is better and it is more suitable for high speed weaving.

5. The maintenance of  the electronic jacquard weaving loom is very easy because it has the most concise shedding mechanism and    the fewest parts. The maintenance cost is also much lowered.

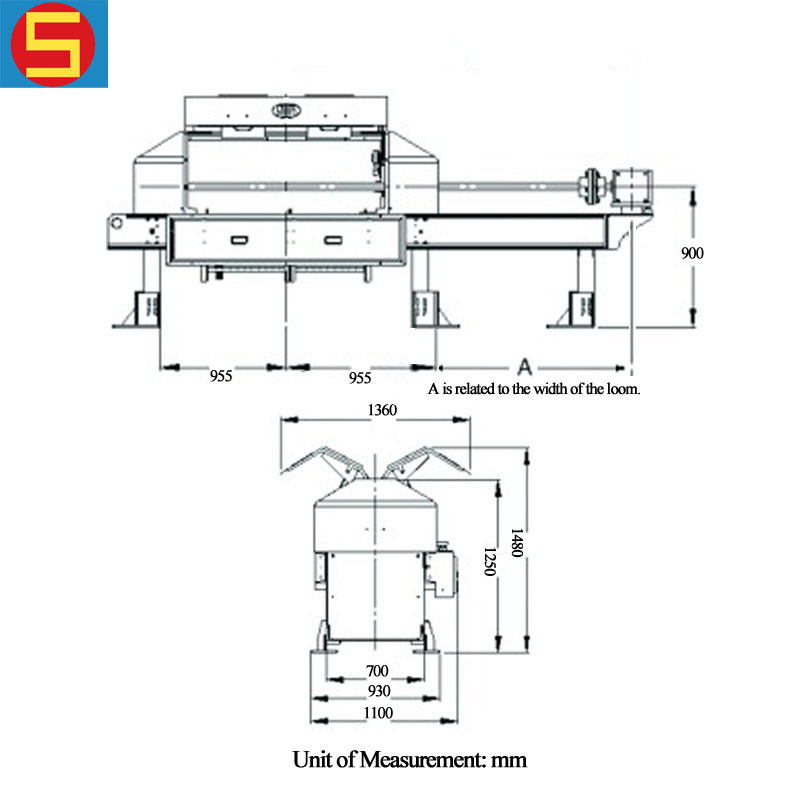

Size Parameter：
