2S250-25S Stainless Steel Solenoid Valve
2 year ago
2S250-25S 1" NC Water Solenoid Valve 220VAC
Product introduction
The 2S250-25S is a 1" diaphragm water solenoid valve, normally closed, the valve body made of high quality stainless steel, port size: 1", orifice size: 25mm.The working medium is air, water, oil, gas. The valve diaphragm material must also be compatible with the media. NBR, EPDM, VITION, and PTFE are common options. Solenoid Coil satndard voltage: 24V, 110V, 220V, etc. Other special AC/DC can be made to client's order. It's compatible with a varity of media such as air, gas, liquids, fuel and so on.
Stainless Steel valve body
The body of 2S250-25S is made of stainless steel and has a thick wall for longer service life. The smooth thread of fine machining ensures continuous operation is not easily damged, making it safer and more reliable.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out easily during operation.
Wide application
Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
Main technical parameters
|
Model |
2S160-10S |
2S160-15S |
2S200-20S |
2S250-25S |
2S350-35S |
2S400-40S |
2S500-50S |
|
Port Size (Inch) |
3/8'' |
1/2'' |
3/4'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
|
Orifice Size (mm) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
4.8 |
12 |
24 |
29 |
48 |
||
|
Material |
Stainless Steel |
||||||
|
Seal |
NBR, EPDM, VITION |
||||||
|
Voltage |
12VDC, 24VD, 24VAC, 110VAC, 220VAC |
||||||
|
Fluid Viscosity |
20 CST below |
||||||
|
Working Media |
Water, Air, Oil, Gas, etc |
||||||
|
Pressure |
0 to 10 bar |
||||||
|
Operation |
Directing Acting |
||||||
|
Function |
Normally Closed |
||||||
|
Temperature Range |
NBR: -5 to 80℃; EPDM: -5 to 120℃; VITON: -10 to 150 |
||||||

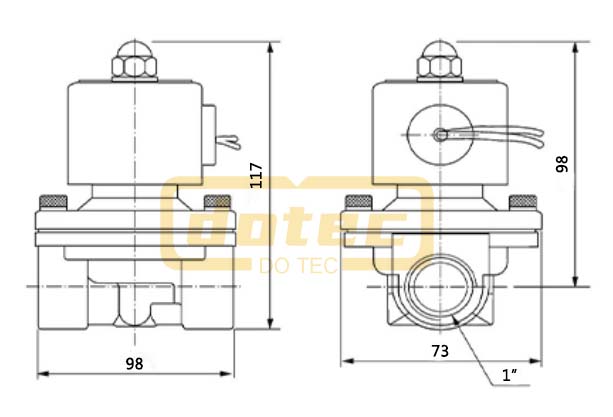

2S250-25S Dimension
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
