pipe cage welding
2 year ago

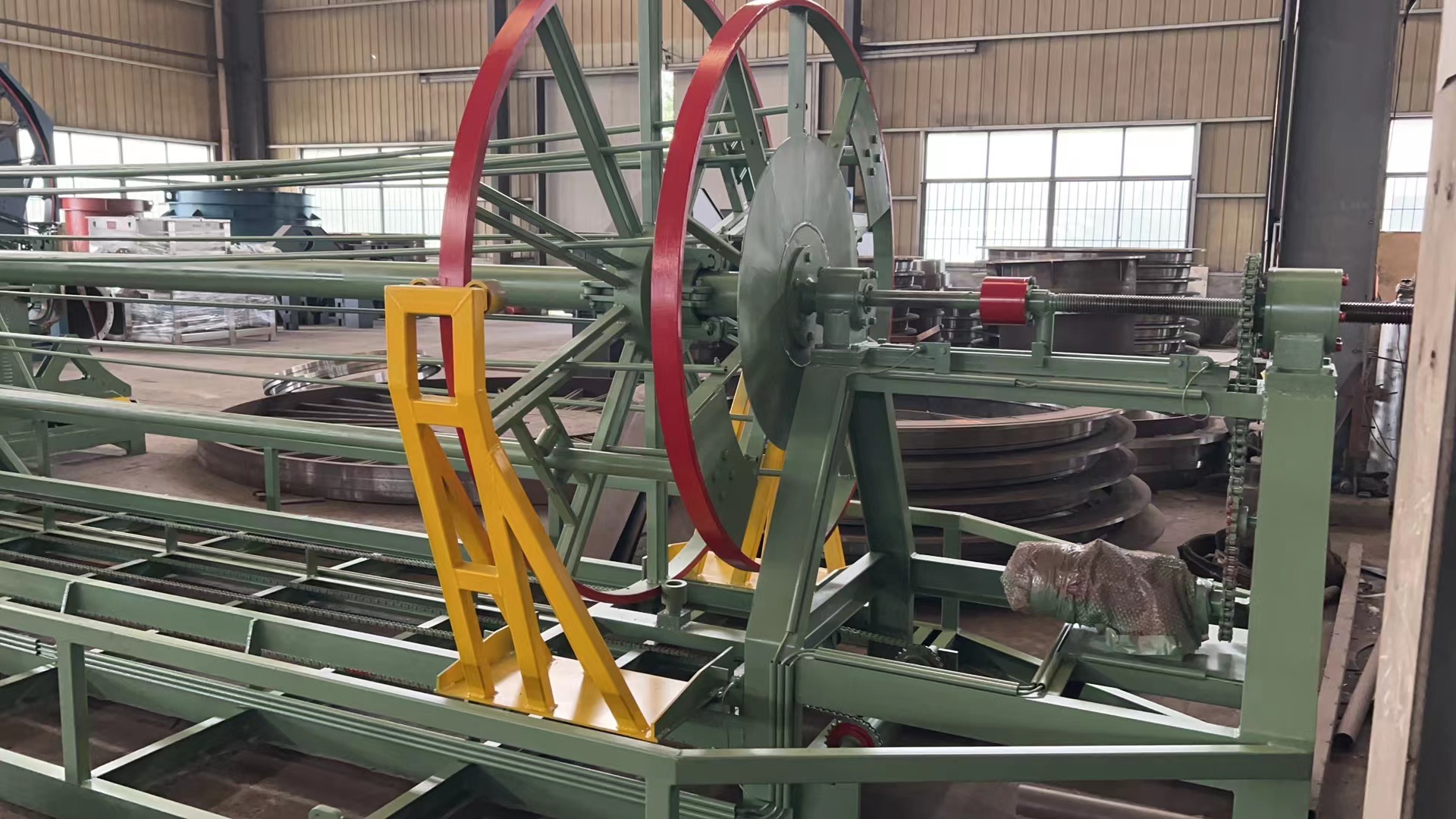

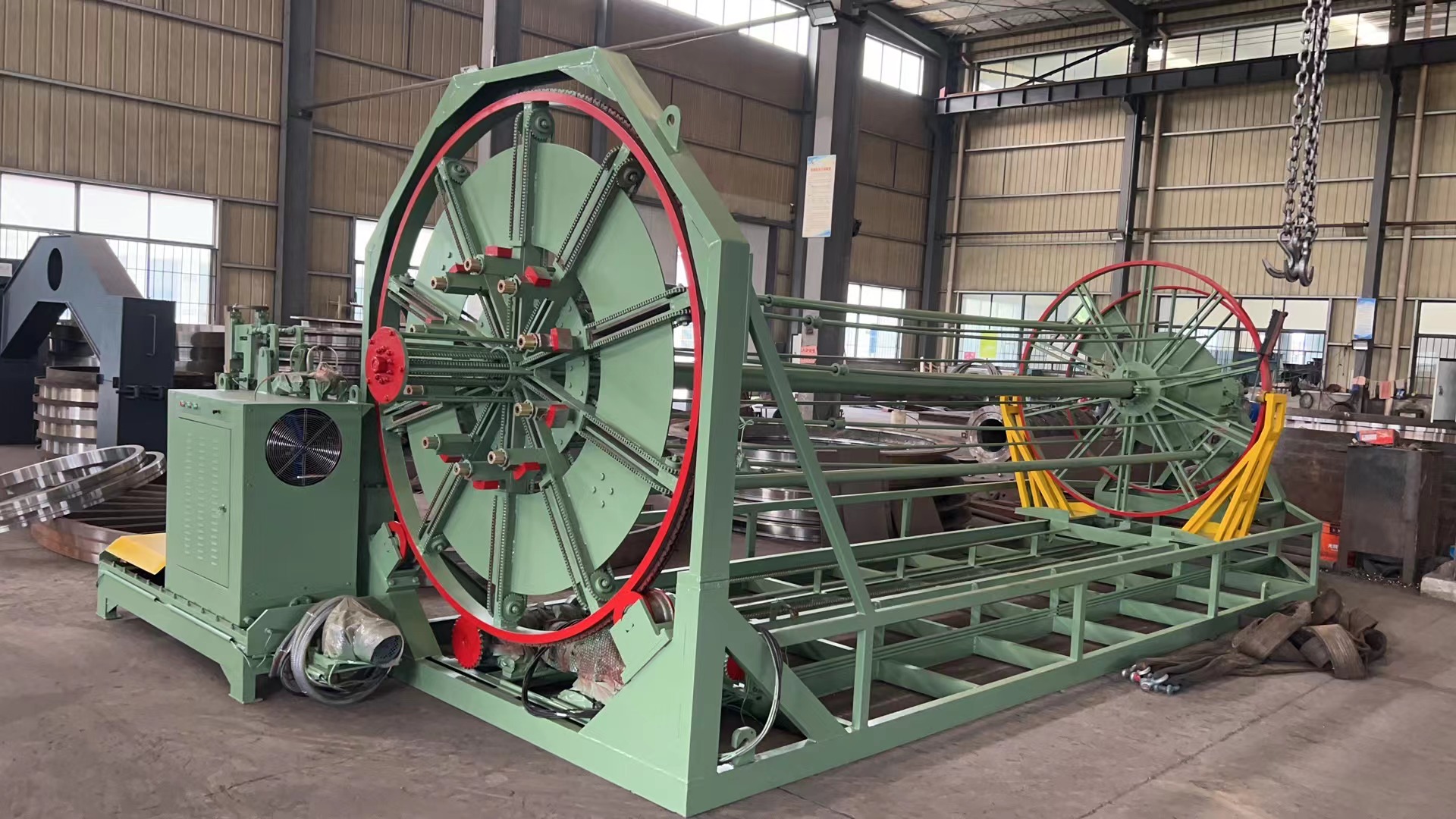

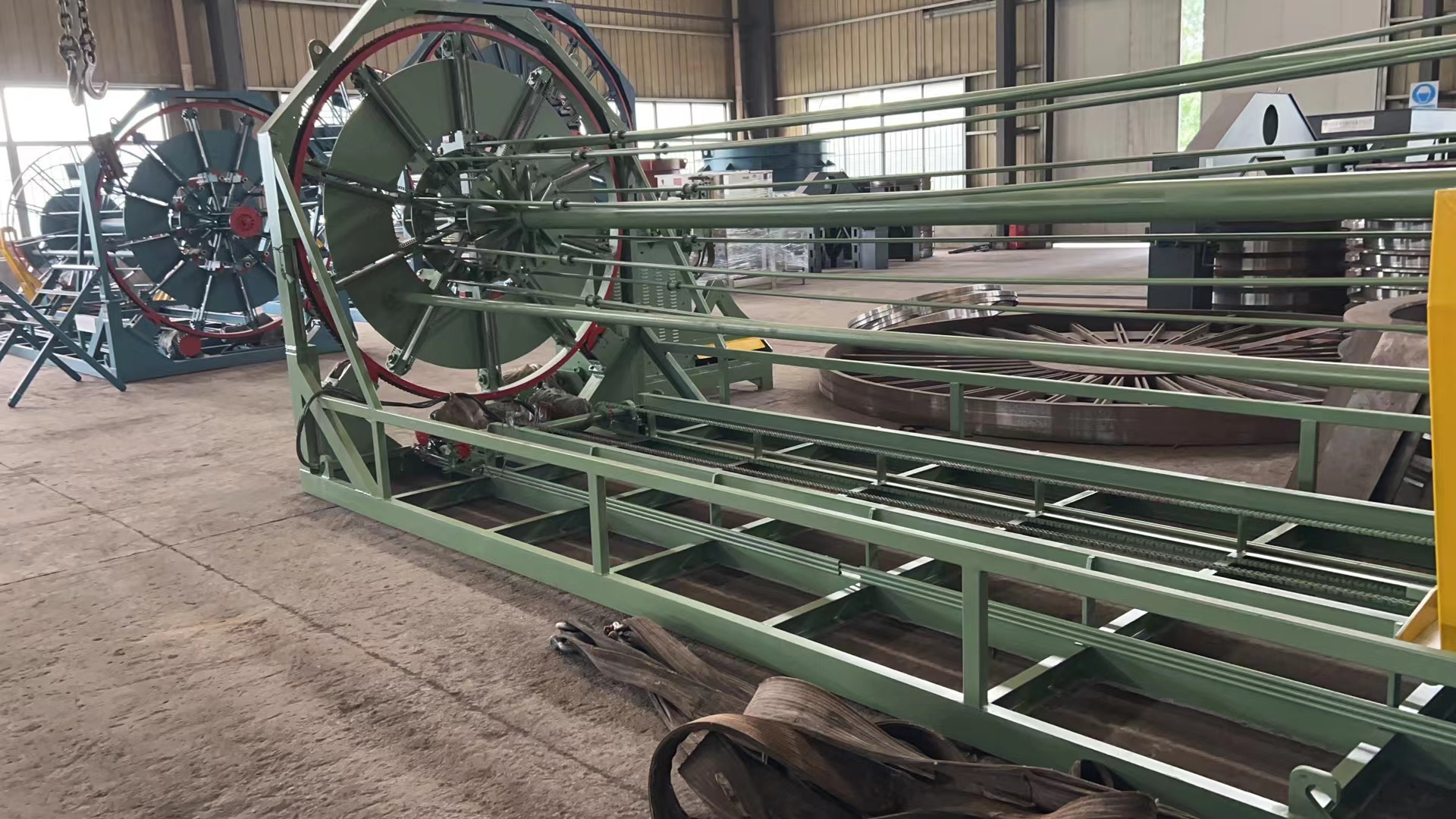

The concrete pipe wire caging machine consists of a frame or structure where the manufacturing process takes place. It typically has a rotating table or platform where the steel wires are placed and formed into the desired shape. The machine also includes various mechanisms for bending, cutting, and welding the steel wires to create the cage structure.
To use the machine, operators load the steel wires onto the rotating platform and adjust the settings to achieve the desired cage dimensions. The concrete pipe wire caging machine then automatically bends the wires into the required shape, cuts them to the appropriate length, and welds them together to form the cage structure. Once the cage is complete, it can be removed from the machine and used for reinforcing concrete pipes.
TheConcrete Pipe Welding Machine is commonly used in the construction industry for the production of various types and sizes of reinforced concrete pipes. It offers high efficiency and accuracy in manufacturing the steel cages, ensuring the quality and strength of the concrete pipes.
| main parameters | PGHJ /CPGHJ |
| Diameter of pipe | 300~3000mm |
| Length | 1000~4000mm |
| Diameter of longitudinal bar | 4~6m,8~12mm |
| Spiral wire | 3~6mm |
| PC wire | 12,18,24,32,36,48 |
| Pitch | 40~160mm adjust |
| Welding way | Single round or nugget |
| Power | 75-200KVA |
| Speed | 3-10min/pcs |
| Code | 480,812,1216,1620,2024 |
| Weight | 5~15T |
spun concrete pipe cage welding machine adopt foreign equipment of advanced structure, electrical automation control action, full digital control circuit welding, using push bar, fully automatic digital continuous variable diameter, frequency conversion speed synchronization, ring stiffened and pitch of arbitrary adjustable.
Thoroughly overcome the seam welder production specifications of the original less (single only 1-2 diameter specifications), high labor intensity, low production efficiency, covers an area of big, complicated operation, splash, welding, high failure rate, low automation and shortcomings.Can produce 300 - 4000 mm, length less than 5000 mm, all kinds of flat steel skeleton, tongue-and-groove, socket.
