Y-clevis and tongue composite insulator
6 month ago
Technical Data
| Rated voltage(KV) | Rated mechanical tension load(KN) |
Structure height(mm) H |
Min nominal creepage distance(mm) |
1min power frequency wet withstand voltage (kv) | Full wave lightning impulse withstand voltage(peak value) |
| 27 | 70 | 350 | 725 | 100 | 200 |
| 24 | 70 | 455 | 825 | 115 |
190 |

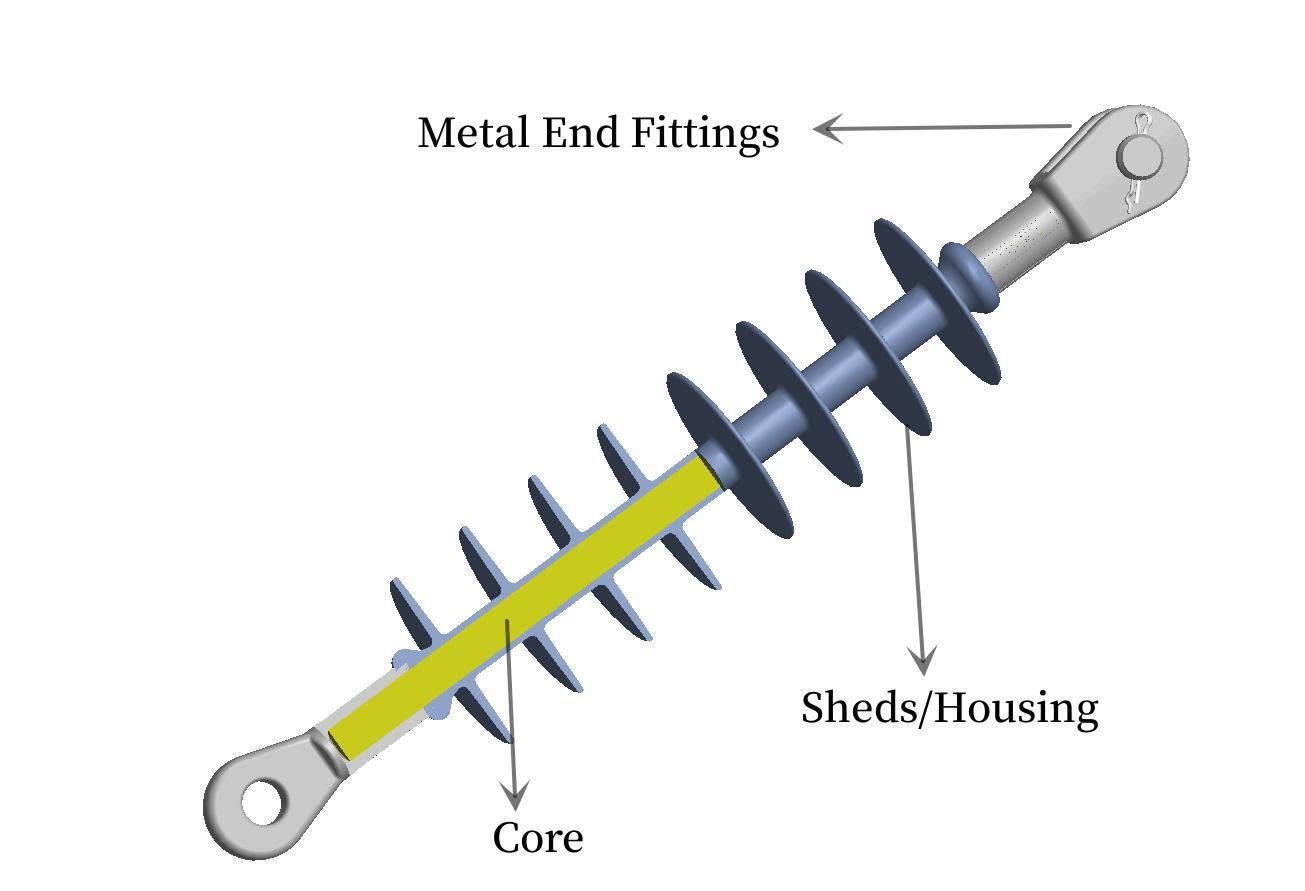

Materials of Products:

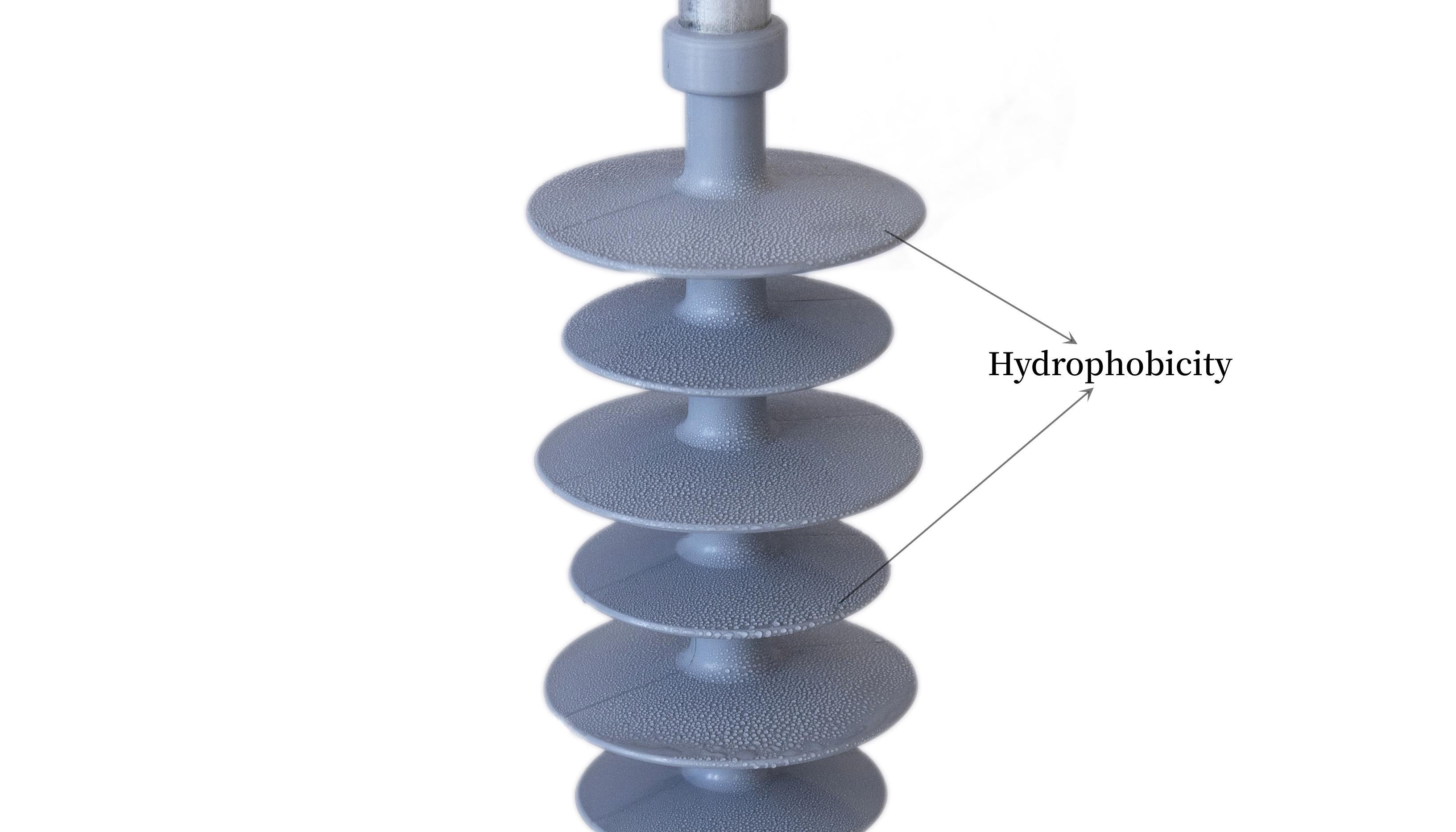

1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.

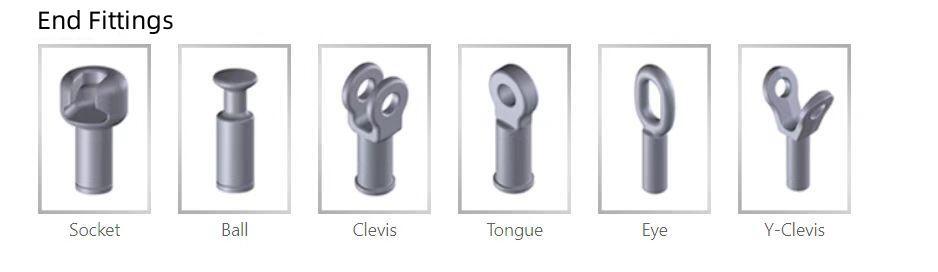

3).Hot dip galvanized cast steel for metal fittings.
4).1000hours aging test & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
