diesel （40）concrete mixing pump

2 year ago

6 0 

Zhengzhou XinFeng machinery manufacturing Co. Ltd

2 year

Product details

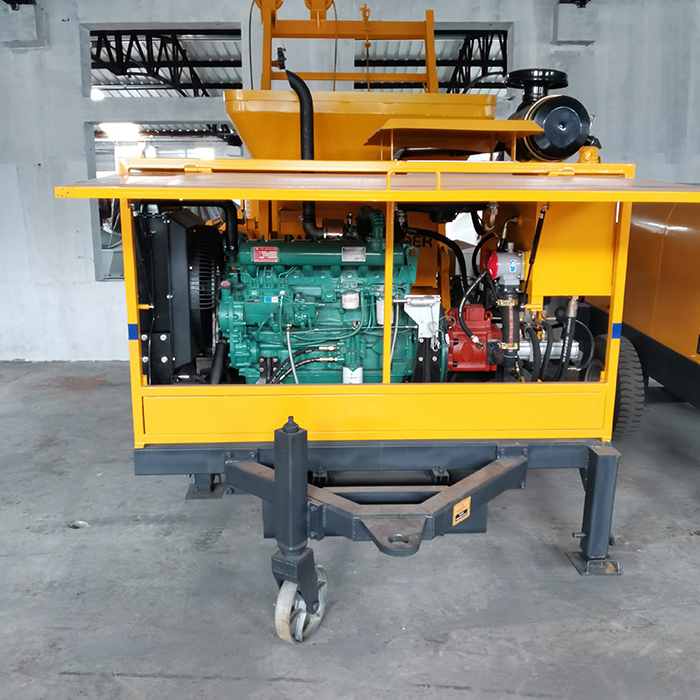

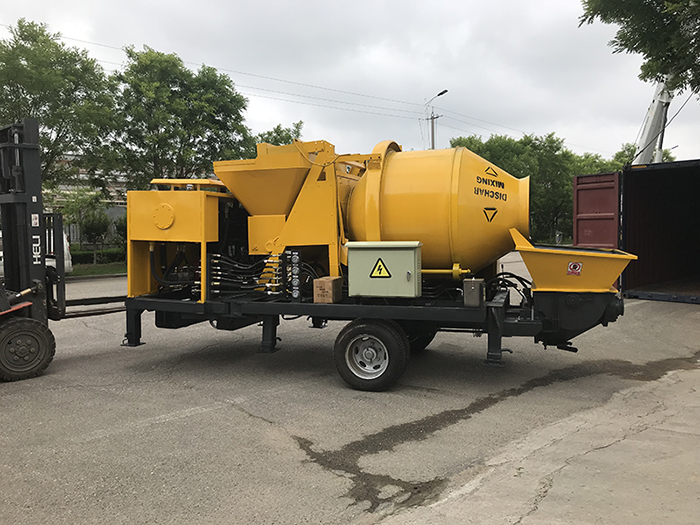

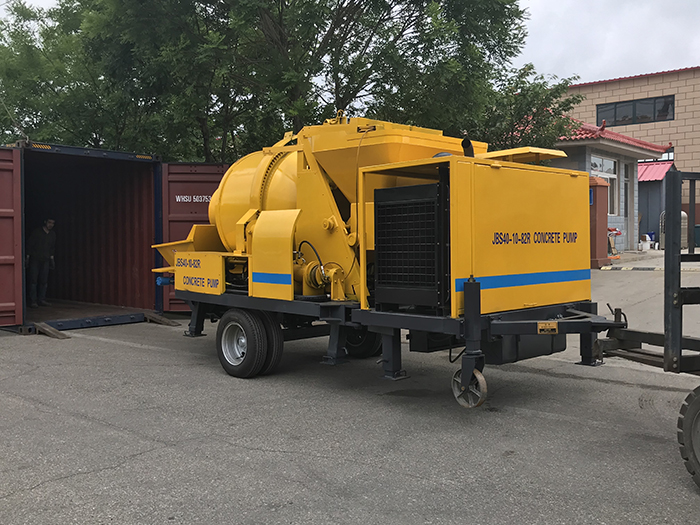

The Concrete Mixing Pump is a mobile construction machine that can produce and pump concrete by combining a concrete mixer and concrete pump into one kit.

It's a great choice for conveying concrete in large construction projects, thanks to its smart and intuitive electronic systems that make it easy to use.

The Concrete Mixing Pump combines concrete production and conveying, allowing for continuous transportation of concrete from site to site. With the use of pressure to transport concrete through pipes, concrete mixing pump enable rapid and continuous horizontal and vertical conveying of concrete, significantly improving construction project efficiency.

Items		Units	Parameters	Parameters	Parameters
Items		Units	JBS40	JBTS30	JBS40-10-84R
Whole performance of machine	Max. theo. concrete output	m³/h	40	30	40
	Max.concrete throughput	m³/h	15	15	15
	Mixer rated feed capacity	m³	0.65	0.65	0.65
	Mixer rated discharge capacity	m³	0.45	0.45	0.45
	Max.concrete pumping pressure	MPa	10	10	10
	Distribution valve type		S Valve	S Valve	S Valve
	Concrete cylinder diameter×stroke	mm	Ф180×1000	Φ140/845	Ф180×1000
	Hopper capacity	L	700	700	700
	Outlet diameter	mm	Ф150	Ф100	Ф150
Power system	Diesel engine model		Weichai deutz	Weifang 66kw	Weifang yuxing
	Electrical engineering power	kw	82	66	84
	Rotate speed	r/min	2200	1800	1900
Winding motor power		kw	Hydraulic motor	hydro-motor	Hydraulic motor drive
Stir the motor Power		kw
Water pump motor power		kw
Hydraulic system	Circuit type		Open circuit	Open circuit	Open circuit
	Pumping system pressure	MPa	32	32	32
	Mixing system pressure	MPa	6-8	6-8	6-8
	Capacity of oil tank	L	350	350	350
The biggest transportation is away from vertically (/Level)		m	90/300	120/300	90/300
Other parameters	Max. aggregate diameter	mm	Scree: 40	Scree:≤20	Scree: ≤40
	Aggregate allowed for mixer	mm	60mm	60mm	60mm
	Inside diameter of delivering pipe	mm	Ф125	Ф80	Ф125
	Dimensions：length×width×height	mm	6000x2300x3150	6000x2300x3150	6000x2300x3150
	Total weight	kg	5800	5000	5500

84R (30)700-700
