Multi-functional Installation robot WSR-600M

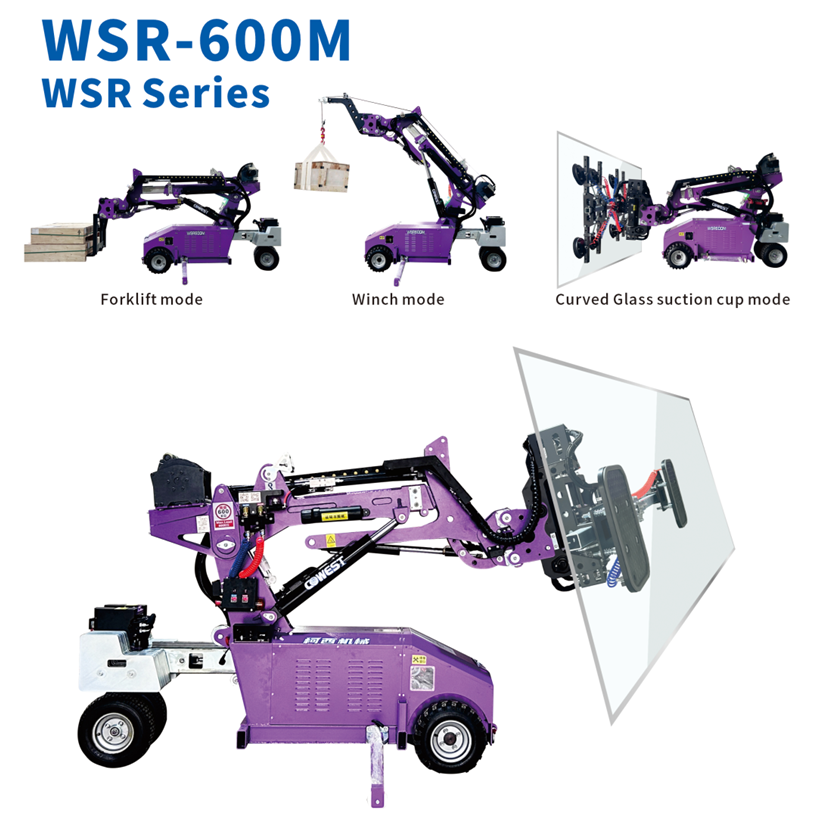

The WSR-600M is a multi-function machine that changes what it does rather than what it lifts. One chassis carries three quick-change attachments: a suction cup head for glass panels, a forklift head for material handling, and a winch head for lifting loads that are not flat. The head is changed on the machine, so the same carrier moves from a glass job to a loading job without a second machine on site.



In suction cup mode it lifts up to 600kg to a 3800mm lifting height with 950mm of arm extension, which covers shopfront glazing, partition glass, interior fit-out and light curtain wall work. The head carries two 400×700mm aluminium suction cups on dual pumps and dual vacuum circuits, the same long-format cup principle as the WSR-800LA in a smaller size, so the load is spread across the panel width instead of being held at two small points. Three load curves of 600kg, 425kg and 250kg are published with the machine, so the capacity at your own panel weight and reach can be read off the curve before you order.



Every movement is electric and wireless remote controlled across six functions, and the extended counterweight design keeps the machine compact enough to work indoors and through a standard doorway on a multi-storey site.









Electric control of: lifting, extension, rotation, tilting, side shifting and side turning. Forklift, winch and suction cup heads are options, and the attachment head is customisable.



1. Three quick-change attachments on one carrier. The suction cup head handles glass panels, the forklift head handles material loading and unloading, and the winch head handles loads that are not flat. The head is changed on the machine rather than replacing it, so one carrier covers glass installation, site loading and general lifting instead of three machines on the same job.



2. 600kg to 3800mm, with the load curve published. Three load curves of 600kg, 425kg and 250kg are published with the machine, so the rating for your own panel weight and reach can be read off the curve before you order instead of being taken on trust. The same 600kg rating applies across all three attachments, so the head is chosen for the job without changing the machine class.



3. Extended counterweight design keeps the machine compact. The counterweight is extended rather than made larger, which keeps the machine size down without losing stability, so it works indoors, through a standard doorway and on a multi-storey site where a bigger machine cannot go.



4. Two long-format aluminium suction cups, not small round cups. The 400×700mm cups spread the load across the panel width, so a single large panel is gripped without several small cups fighting a heavy glass edge. The suction frame also articulates fully: 0-135° tilting, 360° endless rotating, ±50mm side shifting and 90° side turning on both sides, all electrically operated, so one operator can set a panel square to the opening without a second person guiding it.



5. Electric, wireless remote control across six functions: lifting, extension, rotation, tilting, side shifting and side turning, so the operator stands clear of the load at all times and no movement needs a second person on the panel.



6. AC24V front wheel driving with 15% uphill capability, so the machine is driven and positioned under power on site ramps and uneven ground without being pushed or winched into place.



7. Customisable attachment head beyond the three standard heads, so an attachment can be built for a load that is not a glass panel, not a pallet and not a flat plate.



8. DC12V-140Ah × 2 battery packs with AC110V-220V charging, so the machine can be charged on the same supply as the site rather than needing a special charger.



The WSR-600M is a multi-function carrier with three quick-change attachments: suction cup head for glass, forklift head for material handling and winch head for non-flat loads, all rated to 600kg. In suction cup mode it lifts to 3800mm with 950mm of arm extension on two 400×700mm aluminium long-format cups with dual pumps and dual vacuum circuits, and three load curves of 600kg, 425kg and 250kg are published with the machine so the capacity for your own panel can be confirmed before you order. The extended counterweight design keeps the machine compact enough for indoor and doorway work, every movement is electric and wireless remote controlled, and one operator handles the whole cycle. It is CE certified, backed by a 1-year warranty including the battery, and supplied as a complete unit with charger and remote control. Send us your heaviest load, the load dimensions and the height you need to reach, and we will confirm the mode and the capacity from the load chart and record a video of the machine handling a load of that specification.





1. What are the three attachments, and which one do I need?
The suction cup head is for glass panels, the forklift head is for loading and unloading material from the carrier, and the winch head is for lifting loads that are not flat. All three are quick-change and all three are rated to 600kg, so the attachment is chosen for the job without changing the machine class. If your load is none of these three, the attachment head is customisable — send us the load and we will confirm what can be built.



2. What size of panel can the suction cups hold?
Two 400×700mm aluminium long-format cups are fitted, on dual pumps and dual vacuum circuits, which suits large rectangular panels rather than small square units. Because the cups are long-format rather than small round cups, the load is spread across the panel width, which is what makes a 600kg rating workable on a single panel. Send us the panel dimensions and we will confirm the cup layout and the capacity together.



3. How much can it lift, and how does the load change?
Up to 600kg to a 3800mm lifting height with 950mm of arm extension. The maximum load accords the length of the extended arm, and three load curves of 600kg, 425kg and 250kg are published with the machine. Send us the load weight, the load dimensions and the reach you need, and we will read the rating off the curve for you.



4. Can this machine work indoors or through a doorway?
The extended counterweight design allows for a smaller machine size: the counterweight is extended rather than made larger, which keeps the machine compact without losing stability. That matters on multi-storey sites and interior fit-out, where a bigger machine cannot enter the room or pass the door. Please confirm your doorway width and the access route with us, and we will check the machine against it.



5. How is the machine operated, and what is the warranty?
Every movement is electric and wireless remote controlled across six functions: lifting, extension, rotation, tilting, side shifting and side turning, so one operator handles the whole cycle. AC24V front wheel driving with 15% uphill capability means it is positioned under power rather than pushed. The machine uses most common hardware parts, so parts can be bought locally rather than shipped from us, and if it breaks down we guide the repair by video and repair instruction. One year quality guarantee including the battery; if it breaks down within one year we send the parts free of charge.
