Product details

Ultrasonic welding PET baler is a baling equipment that uses ultrasonic welding technology to connect and fix PET belts. It is widely used in various industrial packaging scenarios due to its high efficiency, environmental protection and firmness.

Core features of ultrasonic welding technology

1. No glue or heating elements are required: high-frequency vibration is used to friction weld the joints of the PET tape, avoiding the use of traditional heaters or chemical adhesives.

2. Strong and reliable welding: the welding point has high strength and can withstand large tension and impact, which is suitable for bundling heavy loads.

3. Environmental protection and energy saving: no smoke, exhaust gas or waste is generated during operation, which meets environmental protection requirements.

The features of PET baler

1. Efficient operation

-Fast welding: Ultrasonic welding has an extremely fast response speed, and welding and bundling can be completed in just a few seconds.

-Fully automatic/semi-automatic selection: Many devices support fully automatic bundling, reducing manual participation and improving efficiency.

2. Strong applicability

-Can bundle goods of various shapes, such as round, square or irregular items.

-The width and thickness of PET straps have a wide range of adaptability, and the equipment can be adjusted to meet different needs.

3. Precision and consistency

-The precise location of the welding points ensures consistent quality every time.

-The tension control function can adjust the tightness of the strapping according to the needs of the items.

4. Strong durability

-The combination of PET straps and ultrasonic welding technology allows the bundled items to remain stable during transportation and storage.

-PET straps are UV-resistant and corrosion-resistant, making them suitable for long-term use indoors and outdoors.

Specifications of core component-PET baling machine head

DGR-IIIA(C) Ultrasonic Welding Fully Automatic PET Strapping Machine Head
Power Source	Daily Maintenaance
Voltage: AC380V Belt feeding motor and retracting motor: 2.2kw Ultrasonic gerator: 3kw Pneumatic parts: pressing-belt-wheel cylinder, pressing-belt-head cylinder, pressing-belt-tail cylinder, flanging cylinders, ultrasonic compression cylinder cases. Pressure: 4-6bar Instantaneous gas consumption: Max 0.9L/s	As per general equipment maintenance
Strapping Speed	Belt Spec
General working time of head in strapping process is 9.8 secs/belt.	Width: 19mm, 25mm,32mm, Thickness: 0.8-1.2mm
Belt Connection	Applicable Environment
Using ultrasonic waves for hot melt welding at overlapping PET belts.	Normal temperature environment, suitable for ultrasonic welding.
Belt tension	Applicable Objects
Max.10000N (adjustable)	Galvanized coils, cold rolled coils, steel pipe piles, profile piles, bar piles, sheet piles, aluminium ingot piles, steel ingot piles, pipe piles, wood piles, waste piles, etc.
Consumable Accessories List	Strength of Steel Belt Joint
Feeding-belt wheel, belt cutter	The connection strength accounts is greater than 90% of the PET belt itselt.
Machine Maintenance
Suggest providing minor maintenance every 6 months and major maintenance 1 year.

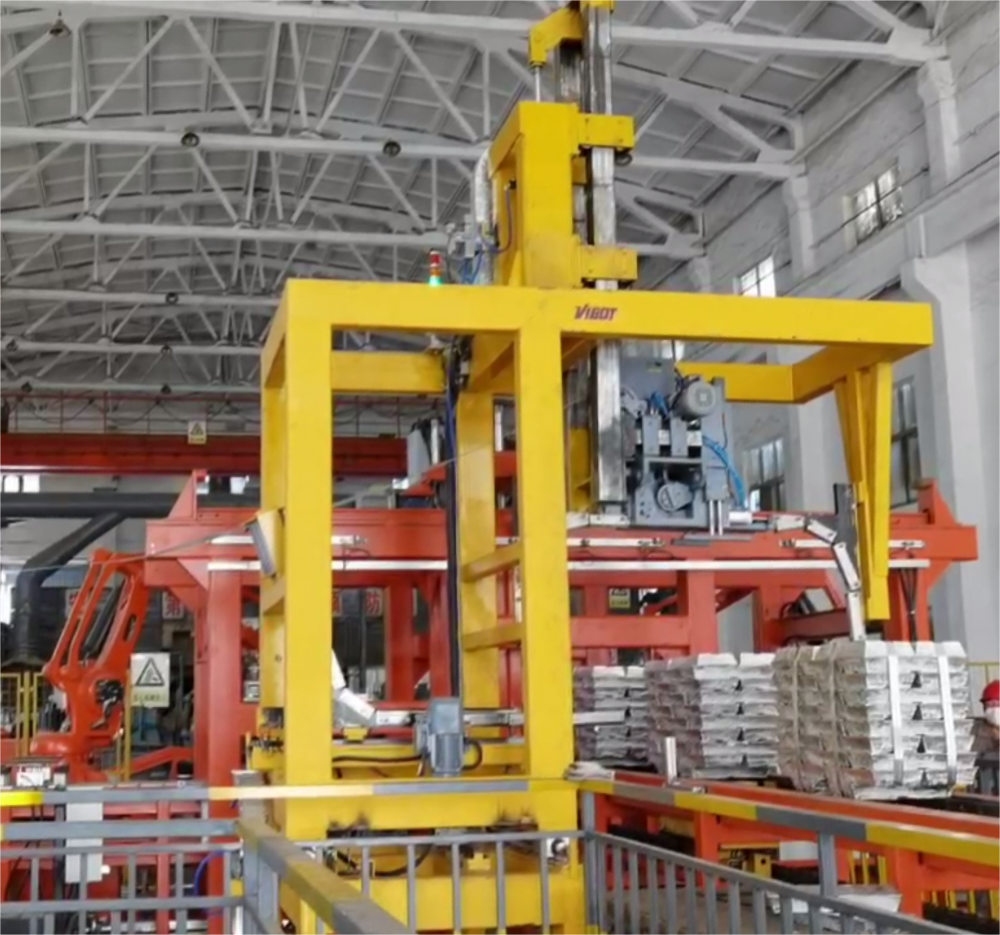

Jacking rotating zinc ingot strapping machine
