9.5mm fiberglass poles/fiberglass rod
2 year ago
The technology is suitable for the manufacture of solid or hollow profile channels, pipes, tubes, bars and flat bars. There are two common pultrusion (Fiberglass cloth )processes:
Resin Bath Pultrusion (RBP) Process
Resin injection pultrusion (RIP) process.

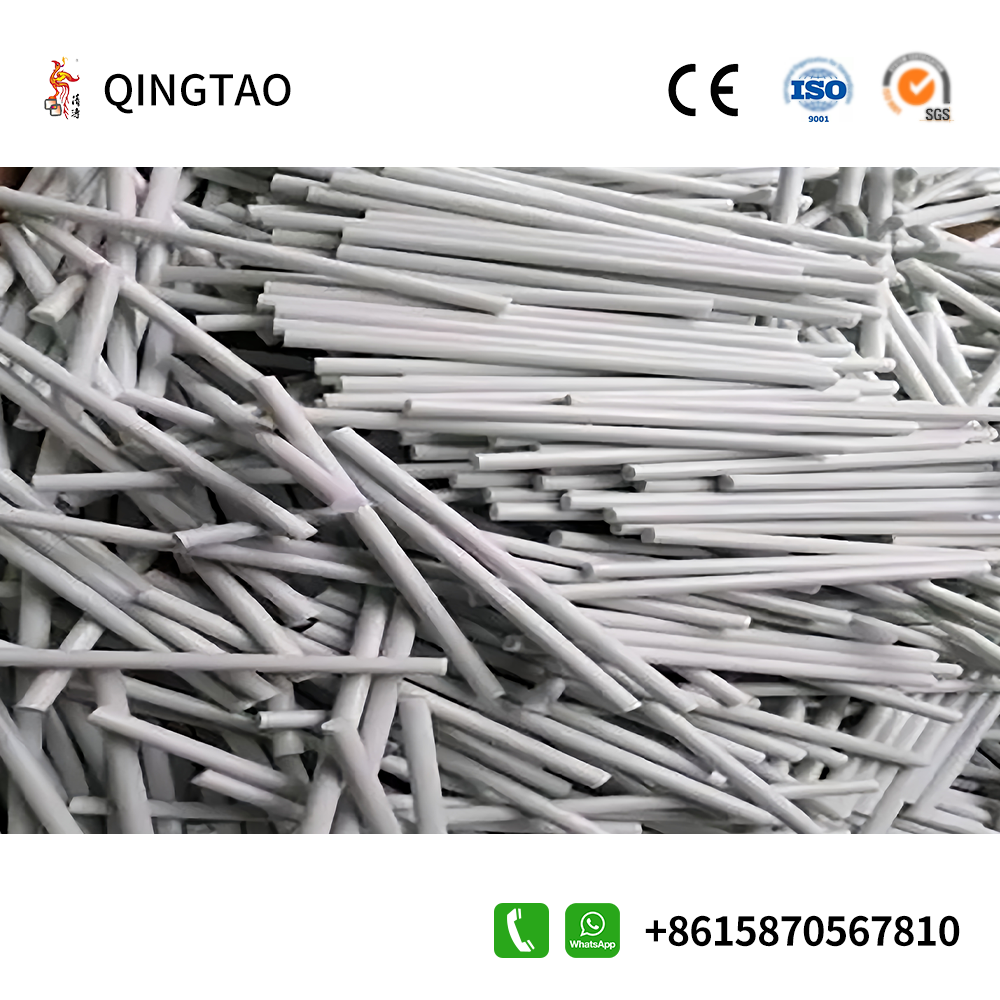

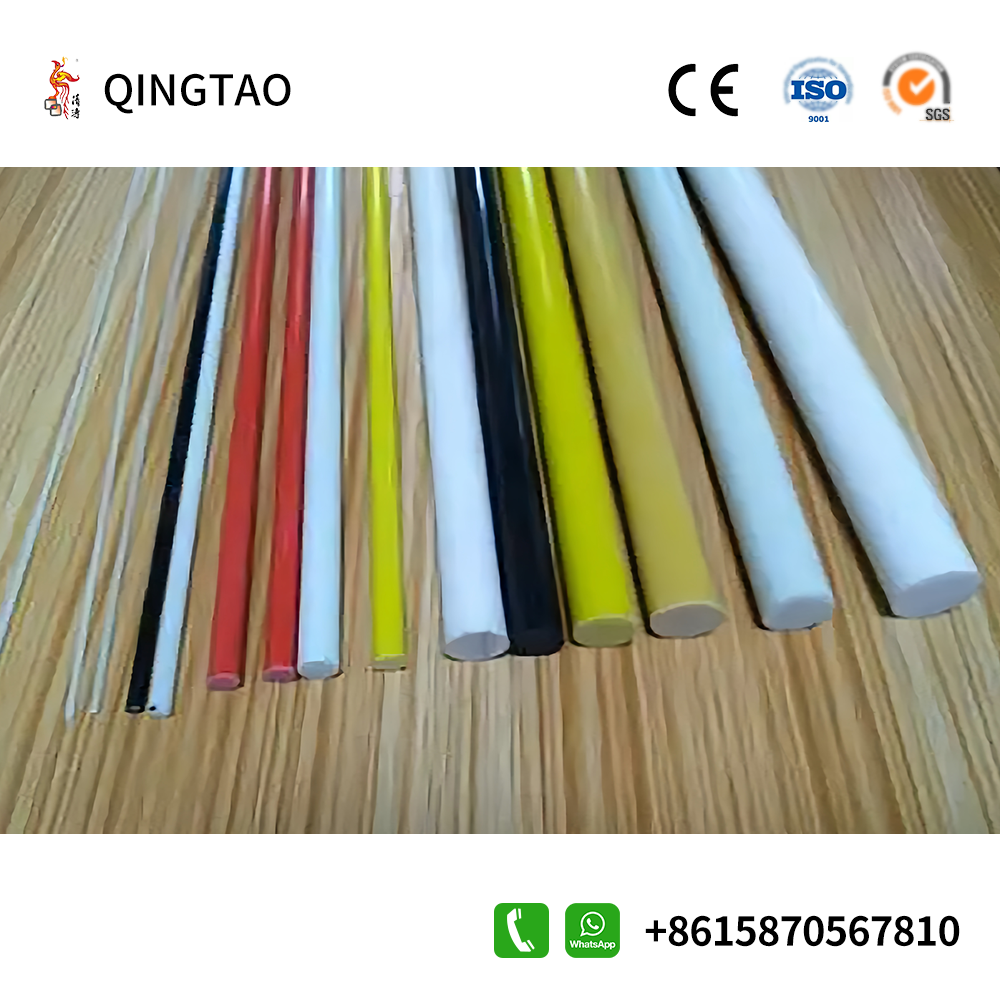

Glass fiber rod 0.374 is a kind of fiberglass composite material that is pultruded and then over-molded. It is a thermosetting elastic material made of continuous glass fiber roving and resin under the traction and molding of a pultrusion molding machine; the resin-rich layer on the surface makes it have good Anti-corrosion, it has light weight, high strength, good elasticity, stable and precise dimensions, and has outstanding (Fiberglass cloth) feature such as insulation, non-thermal conductivity, flame retardant, beautiful appearance and easy maintenance. It is an ideal substitute for steel and other materials in projects with corrosive environments. The best products of materials, and are widely used in: optical cable reinforcement core, sports equipment products, flagpoles, car hood poles(Fiber glass), tent poles, grain machine booms, curtain poles, sign poles, exhaust fan columns, car antennas, construction and bridge reinforcement, Mechanical (Fibreglass mat) transmission shafts, golf clubs, yard fences, kite frames, aluminum film balloon frames, umbrella frames, support blanket frames, aircraft model(Fiber glass rod) frames, luggage frames, fishing gear accessories, etc., the specifications are 2.5mm~~~90mm (generally commonly used specifications ), special specifications can be molded and produced according to clients needs.
Fiberglass Rod | |||||||
Diameter | Weight | Diameter | Weight | ||||
mm | inch | g/m | lb/ft | mm | inch | g/m | lb/ft |
2 | 0.079 | 6 | 0.004 | 17.5 | 0.689 | 481 | 0.323 |
3 | 0.118 | 14 | 0.009 | 18 | 0.709 | 509 | 0.342 |
3.2 | 0.126 | 16 | 0.011 | 19 | 0.748 | 567 | 0.381 |
4 | 0.157 | 25 | 0.017 | 20 | 0.787 | 628 | 0.422 |
5 | 0.197 | 39 | 0.026 | 22 | 0.866 | 760 | 0.511 |
6 | 0.236 | 57 | 0.038 | 24 | 0.945 | 905 | 0.608 |
6.35 | 0.25 | 63 | 0.043 | 25 | 0.984 | 982 | 0.66 |
7 | 0.276 | 77 | 0.052 | 25.4 | 1 | 1013 | 0.681 |
7.5 | 0.295 | 88 | 0.059 | 26 | 1.024 | 1062 | 0.714 |
8 | 0.315 | 101 | 0.068 | 28 | 1.102 | 1232 | 0.828 |
8.5 | 0.335 | 113 | 0.076 | 30 | 1.181 | 1414 | 0.95 |
9.5 | 0.374 | 142 | 0.095 | 32 | 1.26 | 1608 | 1.081 |
10 | 0.394 | 157 | 0.106 | 35 | 1.378 | 1924 | 1.293 |
11 | 0.433 | 190 | 0.128 | 36 | 1.417 | 2036 | 1.368 |
12 | 0.472 | 226 | 0.152 | 38 | 1.496 | 2268 | 1.524 |
12.7 | 0.5 | 253 | 0.17 | 40 | 1.575 | 2513 | 1.689 |
14 | 0.551 | 308 | 0.207 | 45 | 1.772 | 3181 | 2.137 |
15 | 0.591 | 353 | 0.237 | 50 | 1.969 | 3927 | 2.639 |
15.7 | 0.618 | 387 | 0.26 | 50.8 | 2 | 4054 | 2.724 |
16 | 0.63 | 402 | 0.27 | 76 | 2.992 | 9073 | 6.097 |
16.5 | 0.65 | 428 | 0.287 | 100 | 3.937 | 15708 | 10.555 |
If there are any differences in parameters, staff will inform you during consultation |
