Diaphragm Repair Kit M75 M25 for 3'' Turbo Pulse Jet Valves
Product introduction
The Turbo type M75 Replacement is perfect to replace and repair 3'' Turbo F-Series, D-Series, and E-Series Pulse Valves, like FP65, FM65, SQP75, SQM75, SQP100, SQM100.
One set contains 2 diaphragms and 2 springs, packaged in plastic bag. Different materials of the diaphragm determine different performances. And we also produce pulse valve solenoid coils, pulse valve solenoid armature and pulse jet valves. We have other Turbo type pulse valve diaphragm to choose from, M25, M40, M50, etc.
M75 Dimension
Order Code.
|
Ordering code
|
Fitted valve code
|
Valve port size
|
Material
|
|
M25
|
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 |
1''
|
NBR
|
|

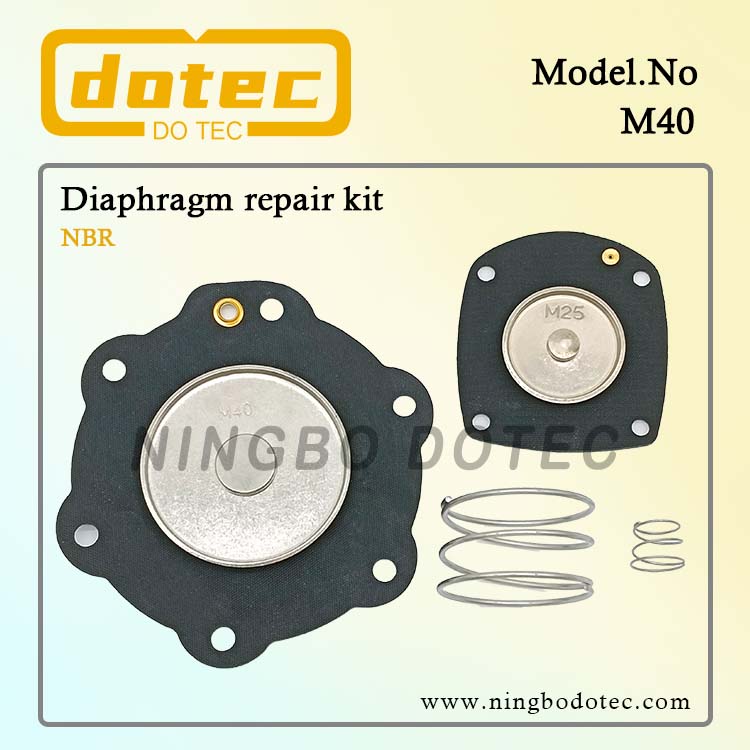

M40 & M25
|
FP40, FM40, DP40, DM40, EP40, EM40
|
1-1/2''
|
NBR
|
|

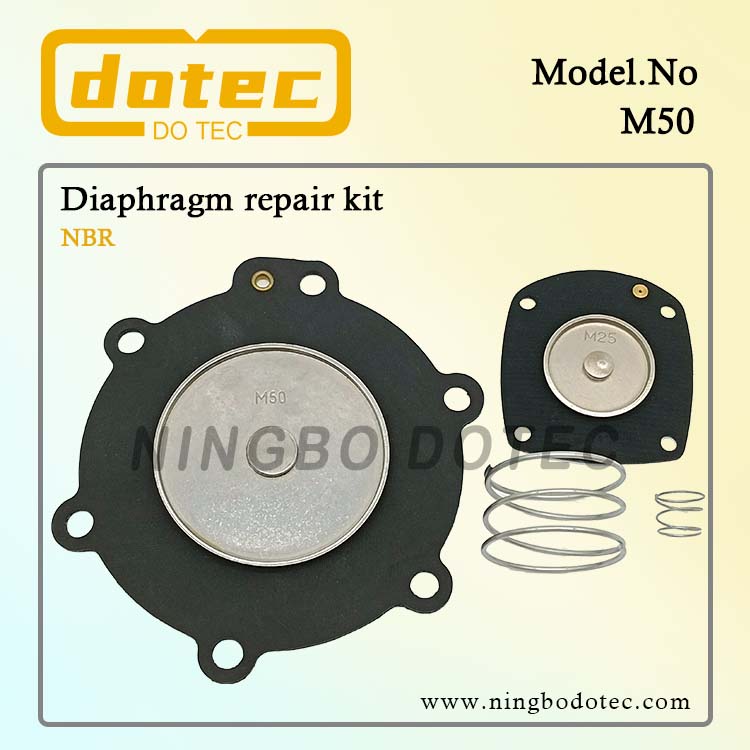

M50 & M25
|
FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65 |
2''
|
NBR
|
|
M75 & M25
|
FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN |
3''
|
NBR
|
|
Tips: EPDM, FKM all available.
|
|||
NBR Material Diaphragm
The material of M75 diaphragm is NBR, which has good thermal aging resistance and can withstand operating temperatures from -10 to 80℃.

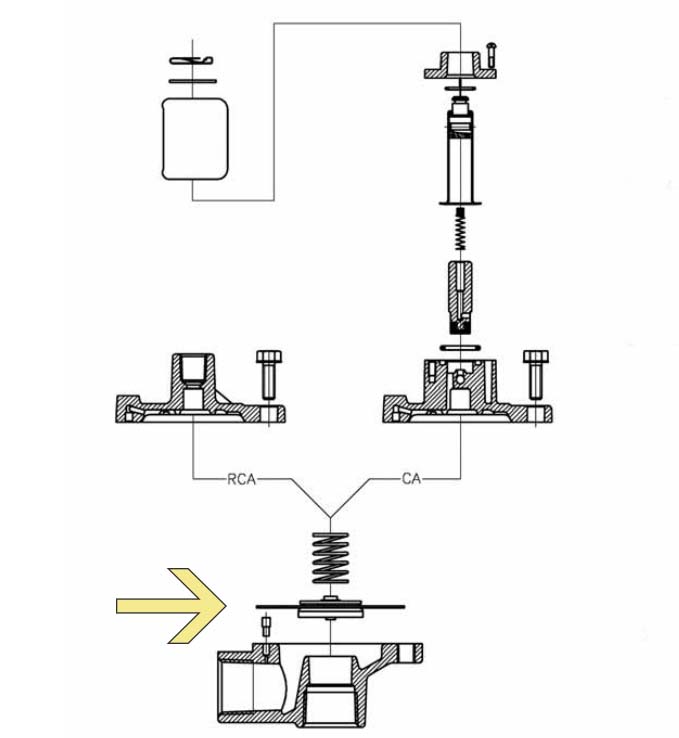

The Role Of The Diaphragm In Valves
The diaphragm is highly flexible and force to control the opening and closing of the valve. It primarily controls, obstruct or isolate the flow of fluids and acts as a flow control device.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
About Us
Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Focus on customer needs
◆ Create the perfect fit
