CMI700 for cooper thickness

Description Hitachi 95M Cu thickness tester:

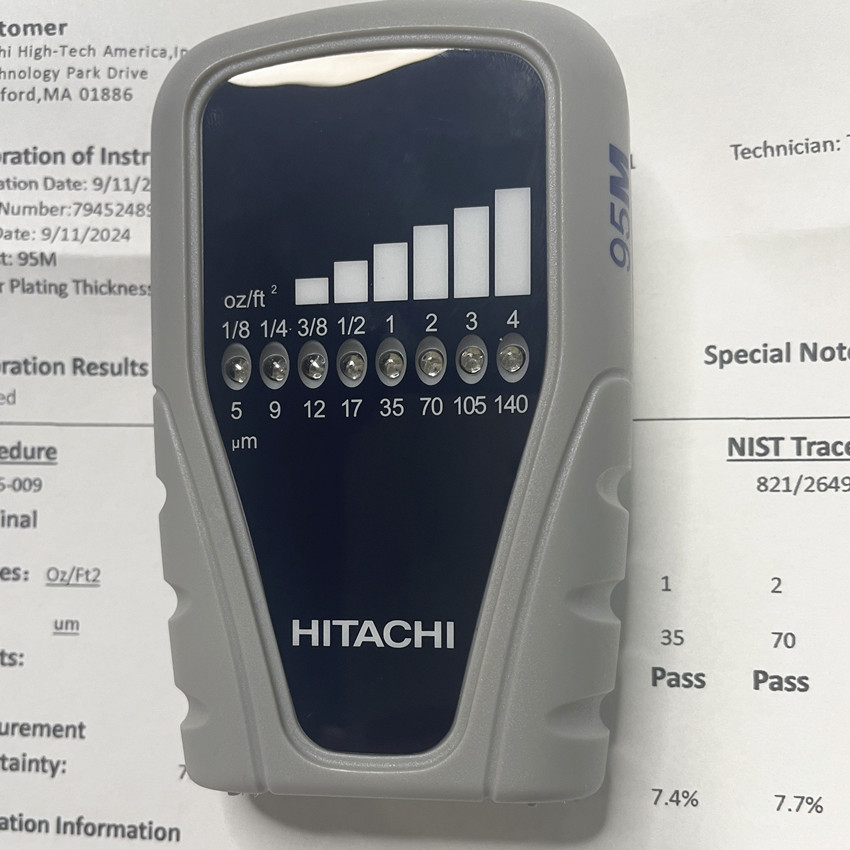

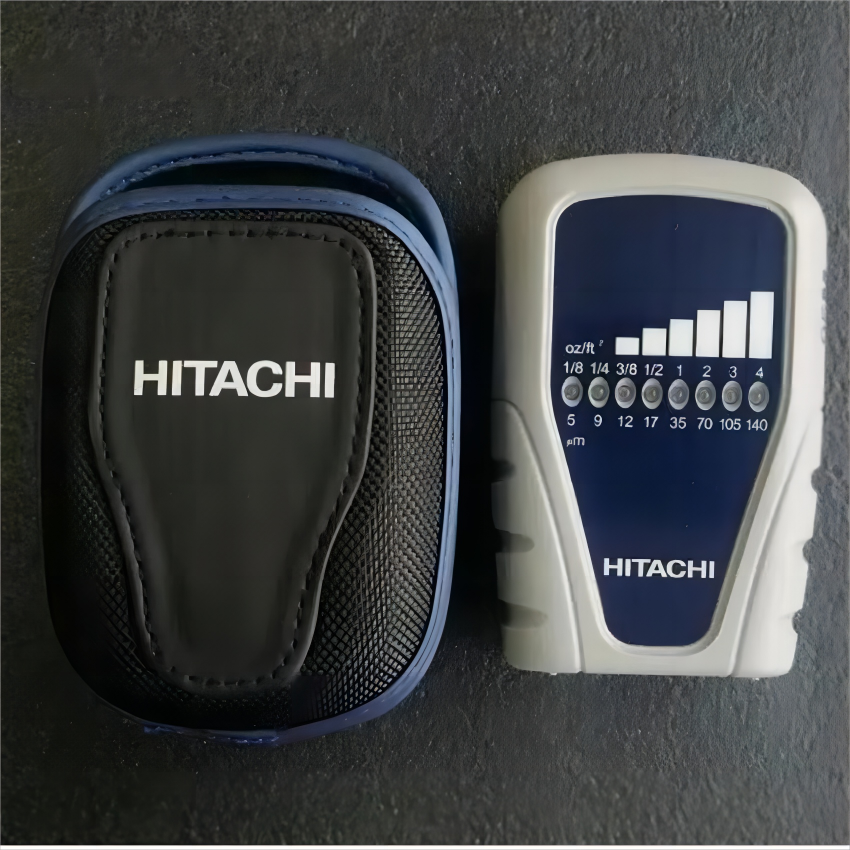

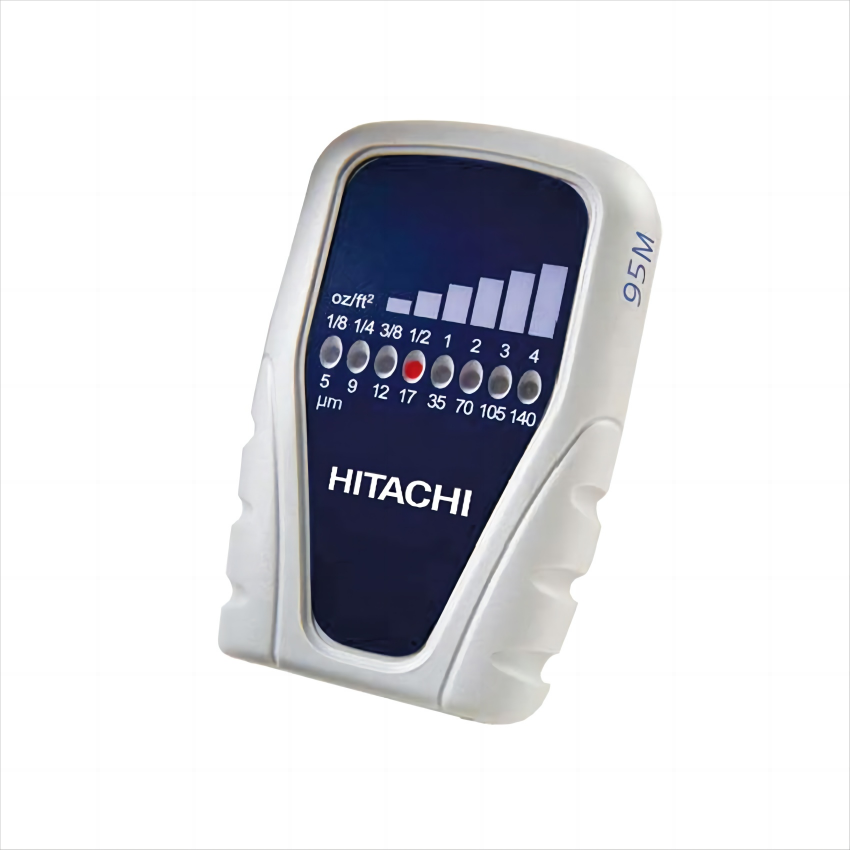

95M is a battery-powered handheld thickness gauge designed for measuring copper foil thickness of CCL. It can measure copper foil on regid, flexible, single or multi-layer PCB.

It is equipped with an ultra-soft contact probe to avoid copper foil scratches. The probe is placed on the surface of the copper foil to begin measureing, at the same time you can see the Cu thickness indication, it's non-destructive detection, which can measure the thickness of the copper foil on the CCL in less than 1 second, ranging from 1/8 to 4.0 ounces per square foot (5-140 microns).

The 95M are factory tuned and do not require any standard pieces. It is easy to use, just place the soft probe of the product on the surface of the copper foil and you can see the indication of the thickness of the copper foil. Avoid high recycling costs - quickly and accurately identify specific copper foil thicknesses

Feature of 95M

1.It is an industry-recognized rugged, easy-to-use and affordable handheld thickness gauge that sorts copper foil sheets by thickness measurement

2.Non-destructive inspection - The new 95M features an ultra-soft contact probe to avoid scratches on the surface of the copper foil

3.Durable and easy to operate

4.Pre-factory calibration, no need for standard film

5.Low battery reminder
