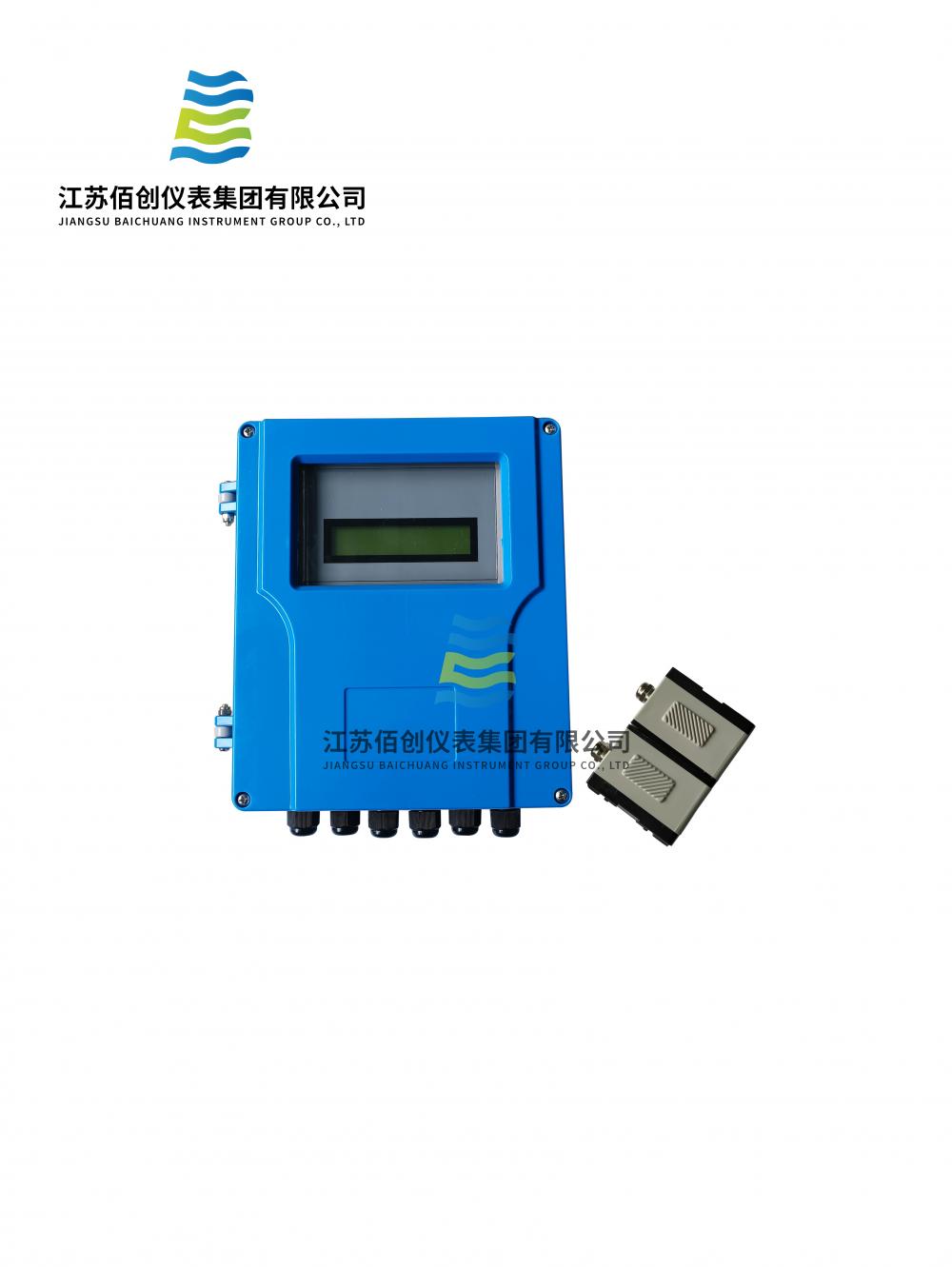

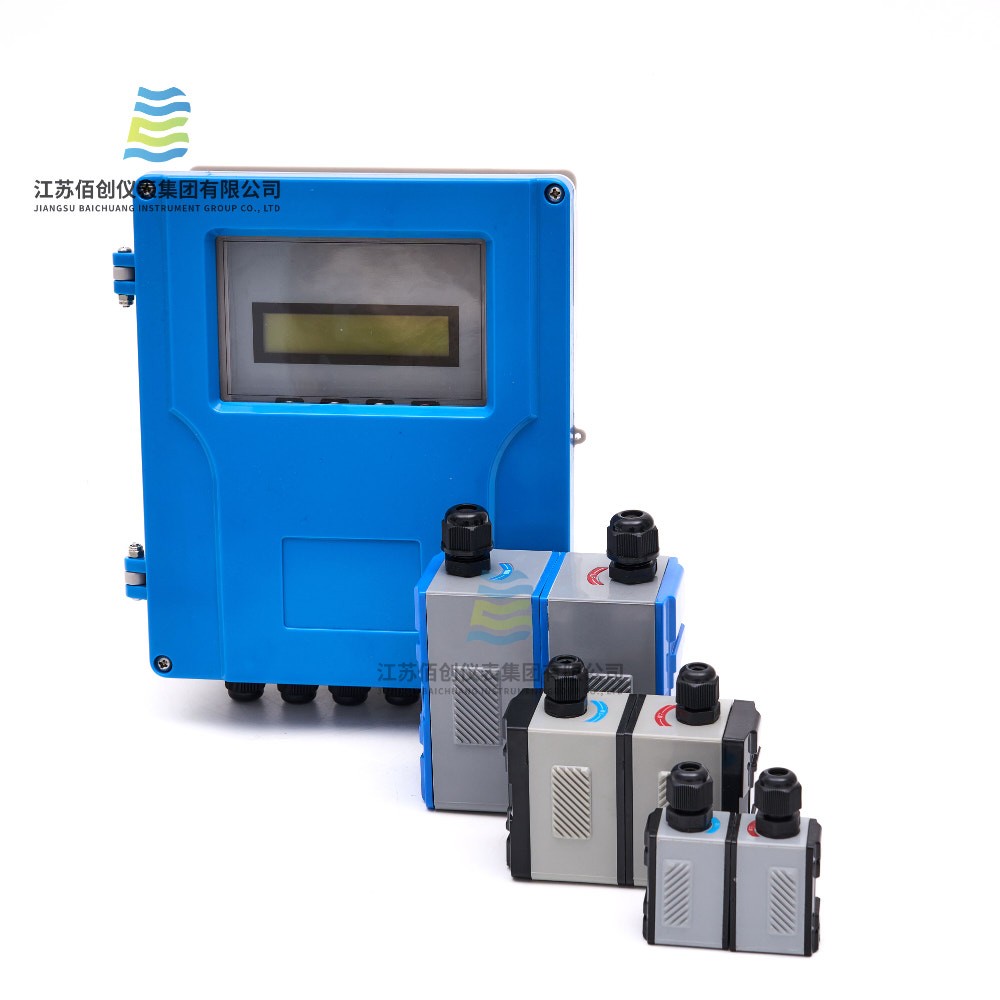

External clip-on ultrasonic flowmeter

1. Measurement accuracy: Level 2

2. Working power supply: 8-36V DC or 85-264V AC

3. Temperature range: 0-90℃; 0-160℃

4. Temperature difference range: 0-75℃

5. Environmental grade: Class B or Class C

6. Optional output: 1 standard isolated RS485 output; 1 isolated 4-20mA or 0-20mA output; dual isolated OCT outputs (OCT1 pulse width is programmable between 6-1000ms, default 200ms); 1 bidirectional serial output General interface for line peripherals, which can directly connect multiple external devices such as 4-20mA analog output board, frequency signal output board, thermal printer, data logger and other external devices in series

7. Other functions: Automatically memorize the previous 512 days, the first 128 months, and the first 10 years of positive and negative net cumulative traffic; automatically memorize the first 30 power outage times and traffic and realize automatic or manual replenishment, and can be added through the MODBUS protocol read out

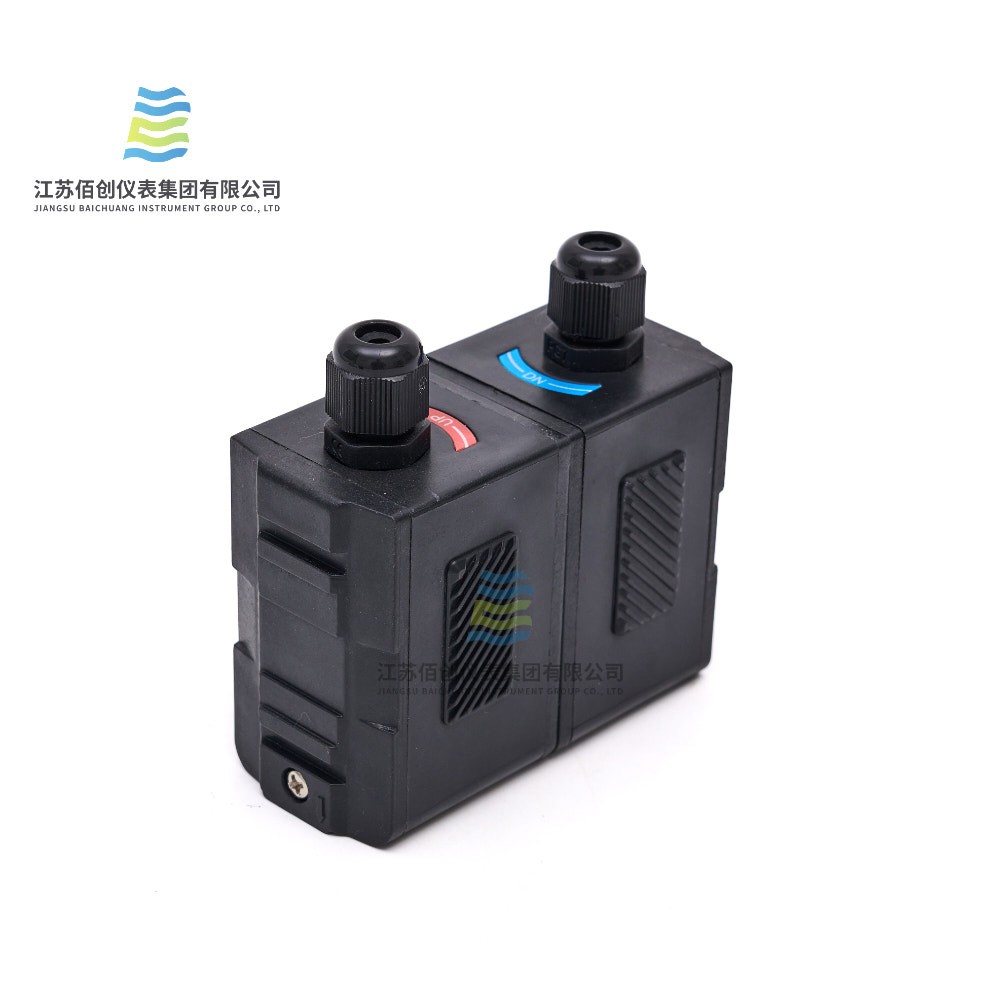

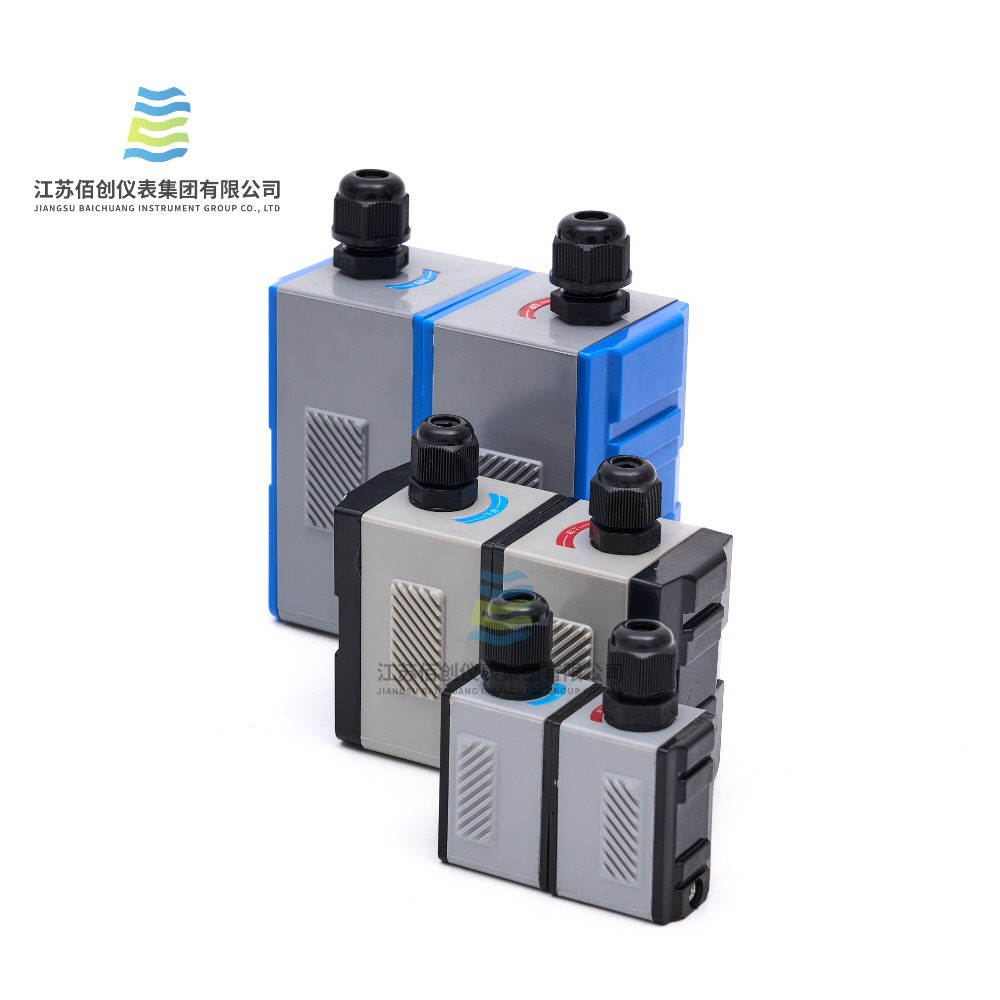

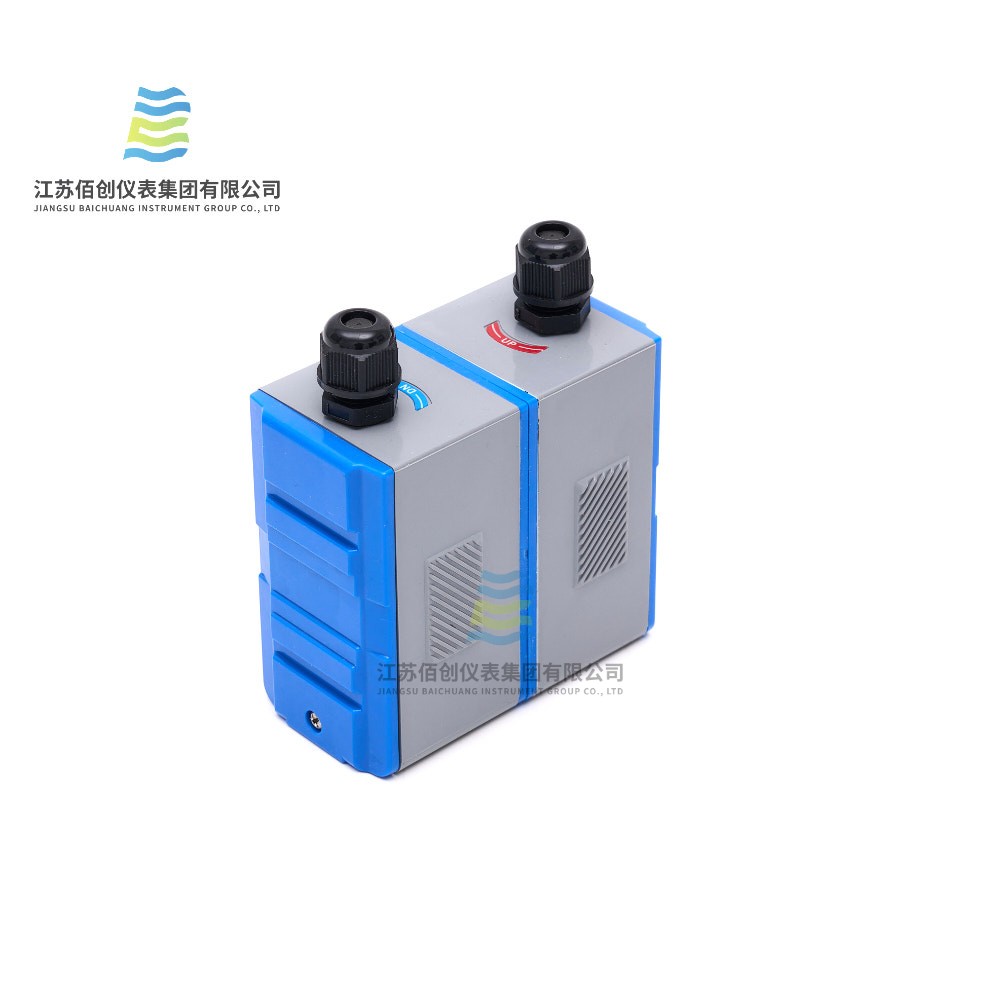

8. Flow sensor: external clamp type

9. Temperature sensor: PT100

Our company's main products include Electromagnetic flowmeter、Ultrasonic cold or heat flowmeter、Open channel flowmeter、Electromagnetic cold or heat flowmeter.
