25T 12'' Universal hydraulic jack cylinder

Product Name: 25 ton 8 inch universal purpose single acting hydraulic cylinder

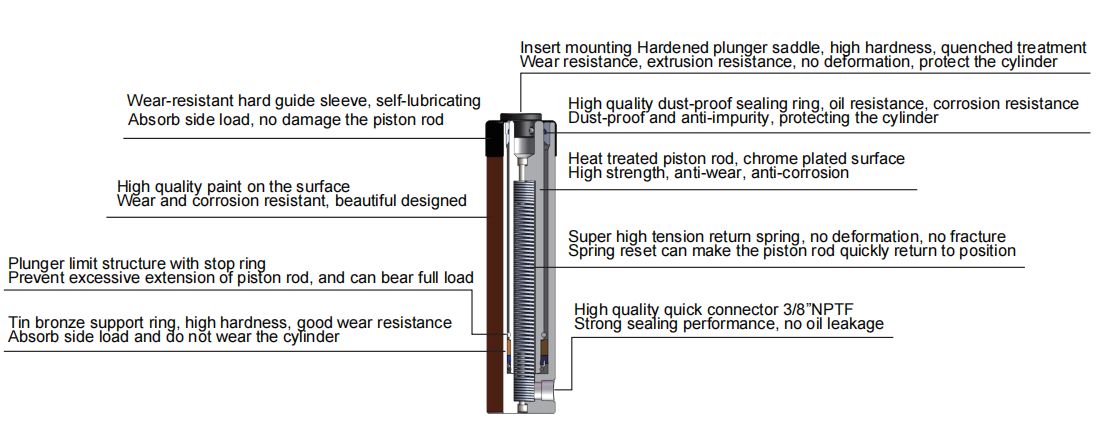

Our DY-RC series hydraulic cylinder is single-acting with spring return, ranging from 5 to 100 tons, with a cylinder stroke ranging from 15 mm to 200 mm. This cylinder is ideal for universal operations requiring high forces and compact dimensions. It features a robust design, manufactured from chromium-molybdenum steel with a hard chromium plated piston and large bronze bearings. The hydraulic cylinder includes a saddle, mounting threads, and a female coupler half for easy installation. It can be used together with a single acting hydraulic pump and other related tools.

Features:

· Operating pressure max. 70Mpa/10,000PSI/700 bar.

· Single-acting with spring return.

· Robust design with long piston bearings to withstand eccentric loading.

· Hard-chromium plated piston with replaceable, heat treated saddle.

Product Display

We are looking for distributors and agents worldwide. If you are interested in our products, please do not hesitate to contact us.
