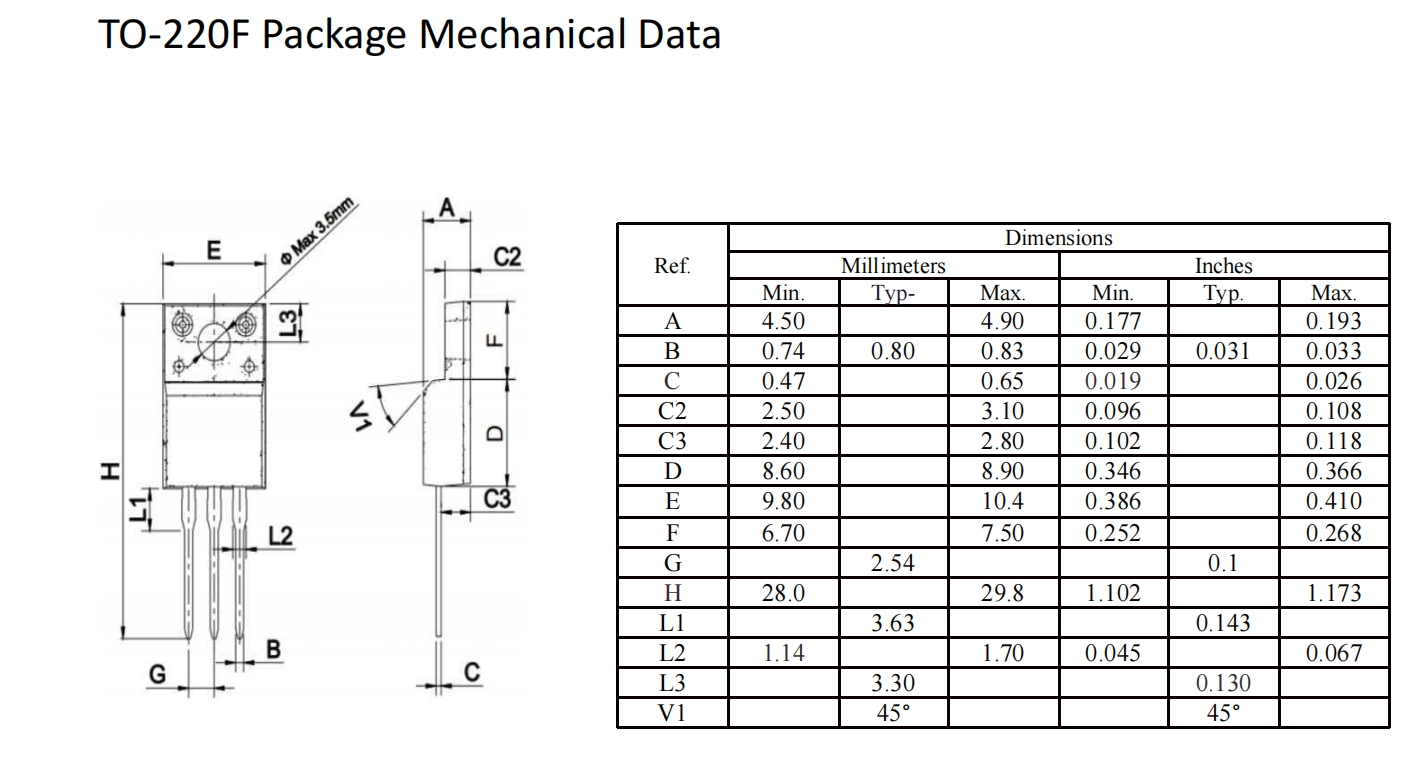

SCR S4050 TO220F

ABSOLUTE MAXIMUM RATINGS

Parameter

Symbol

Value

Unit

Storage junction  temperature range

Tstg

-40 ~ 150

℃

Operating junction temperature range

Tj

-40~ 125

℃

Repetitive peak off-state voltage

VDRM

1600

V

Repetitive peak reverse voltage

VRRM

1600

V

Non repetitive surge peak Off-state voltage

VDSM

VDRM +100

V

Non repetitive peak reverse voltage

VRSM

VRRM +100

V

Non repetitive surge peak on-state current

ITSM

420

A

RMS on-state current (180° conduction angle)

IT(RMS)

40

A

Average on-state current (180° conduction angle)

IT(AV)

25

A

I2t value for fusing (tp= 10ms)

I2t

880

A2 S

Critical rate of rise of on-state current

(I =2×IGT, tr ≤ 100 ns)

di/dt

150

A/μS

Peak gate current

IGM

4

A

Peak gate power

PGM

5

W

ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)

Symbol

Test Condition

Value

Unit

IGT

V = 12V R = 140Ω

MAX.

50

mA

VGT

MAX.

1.5

V

VGD

VD=VDRM Tj= 125℃

MIN.

0.2

V

IL

IG= 1.2IGT

MAX.

200

mA

IH

IT=50mA

MAX.

100

mA

dV/dt

VD=2/3VDRM Gate Open  Tj=125℃

MIN.

1000

V/μs
