Product details

Product Description

Description:

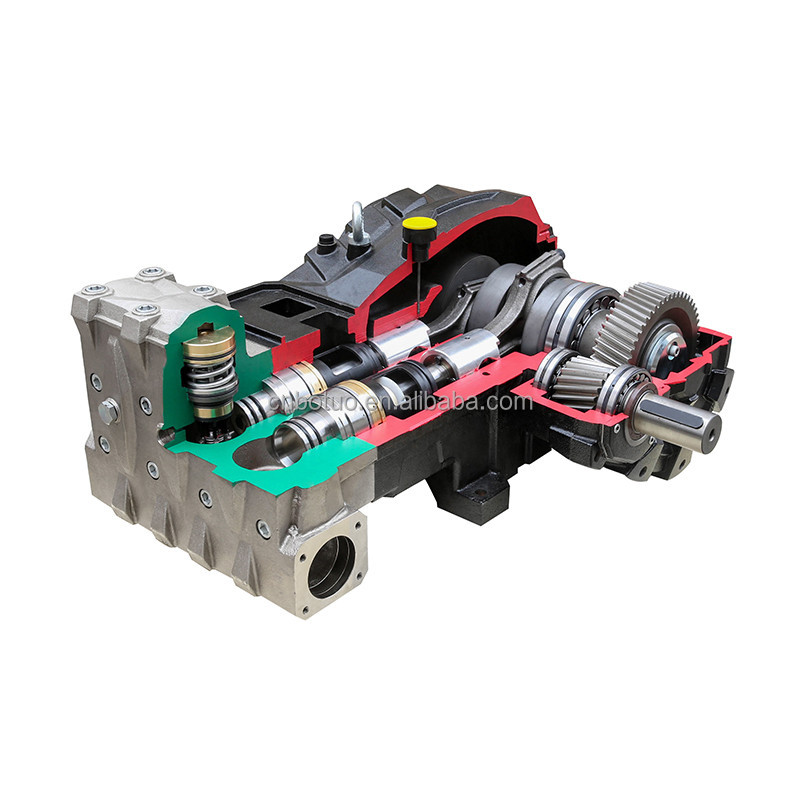

Triplex plunger pumps are self priming as it can draw liquid from a level below the suction flange even if the suction pipe is not evacuated. Plunger pumps are not tolerant to solid particles. In a reciprocating pump, a volume of liquid is drawn into the cylinder through the suction valve on the intake stroke and is discharged under positive pressure through the outlet valves on the discharge stroke.Pressure Jet Triplex plunger pumps have three synchronized plungers that discharge liquids at high pressure with minimum pulsation. Our high pressure triplex plunger pumps include both industrial triplex piston and triplex plunger pump designs.

Characteristics:

1.Crankcase precision die casting ,surface picking oxidation treatment.

2.The pump head is made of forged brass material which is reasonable and results in high -intensity pump operation.

3.The one - way valve is made of stainless steel to ensure superior impact resistance.

4.High and low pressure double water seal design.enhance pump performance and improve life.

5.The most popular ceramic plungers are now available for greater durability.

6.The high-strength crankshaft of the precision machining process is equipped with large-size tapered roller bearings to ensure high-load operation of the crankshaft in the crankcase.

Specifications

model	flow			pressure			power		speed
model		lpm	gpm	bar	psi	hp	kw	rpm
FGS40	183	48.4	400	5800	190	140	1500/1800/2200
FGS45	232	61.3	300	4350	181	133	1500/1800/2200
FGS50	287	75.8	250	3625	186	137	1500/1800/2200
FGS55	347	91.7	220	3190	181	133	1500/1800/2200
FGS60	413	109.1	200	2900	182	134	1500/1800/2200
FGS65	485	128.1	180	2610	189	139	1500/1800/2200
FGS70	561	148.1	100	1450	183	135	1500/1800/2200

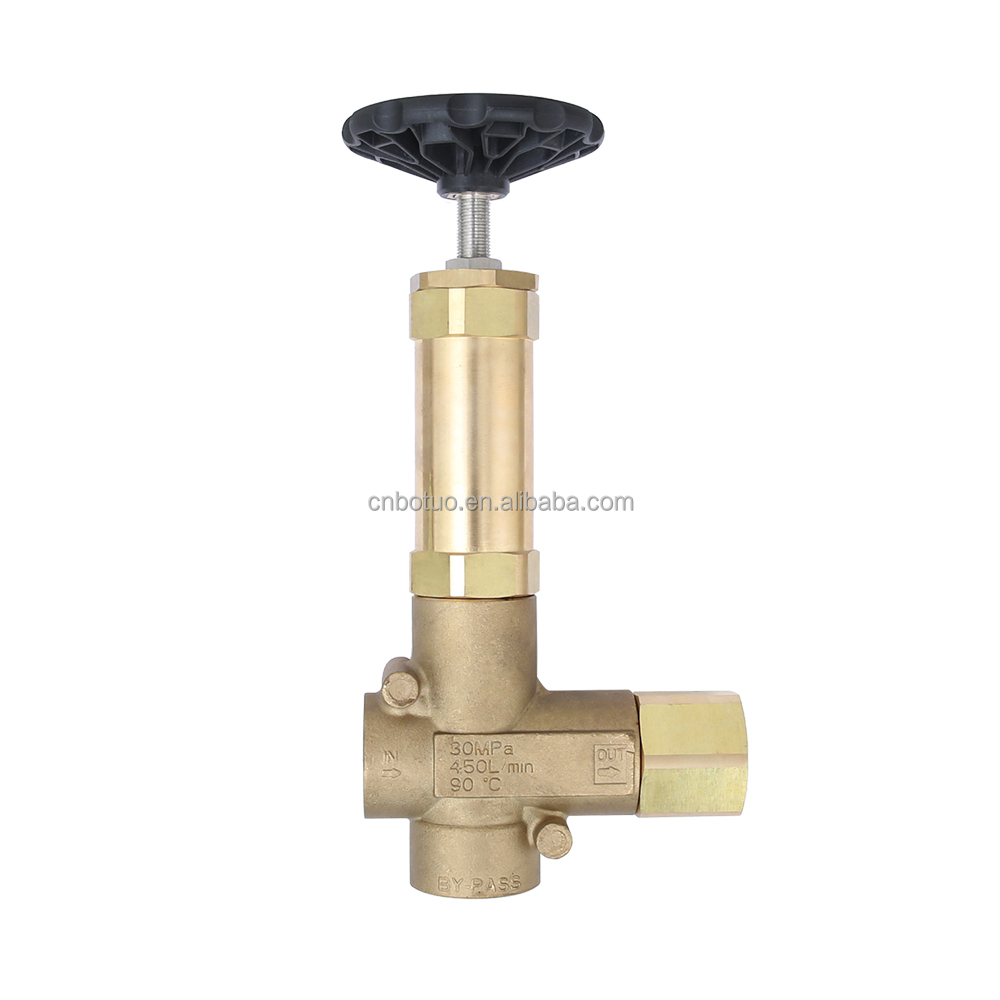

Unload valve : VRP450

Flow rate ( 450 lpm /118.88 gpm )

Max pressure (300 bar/4350 psi )

inlet ( G 1-1/4 )

outlet ( G 1-1/4 )

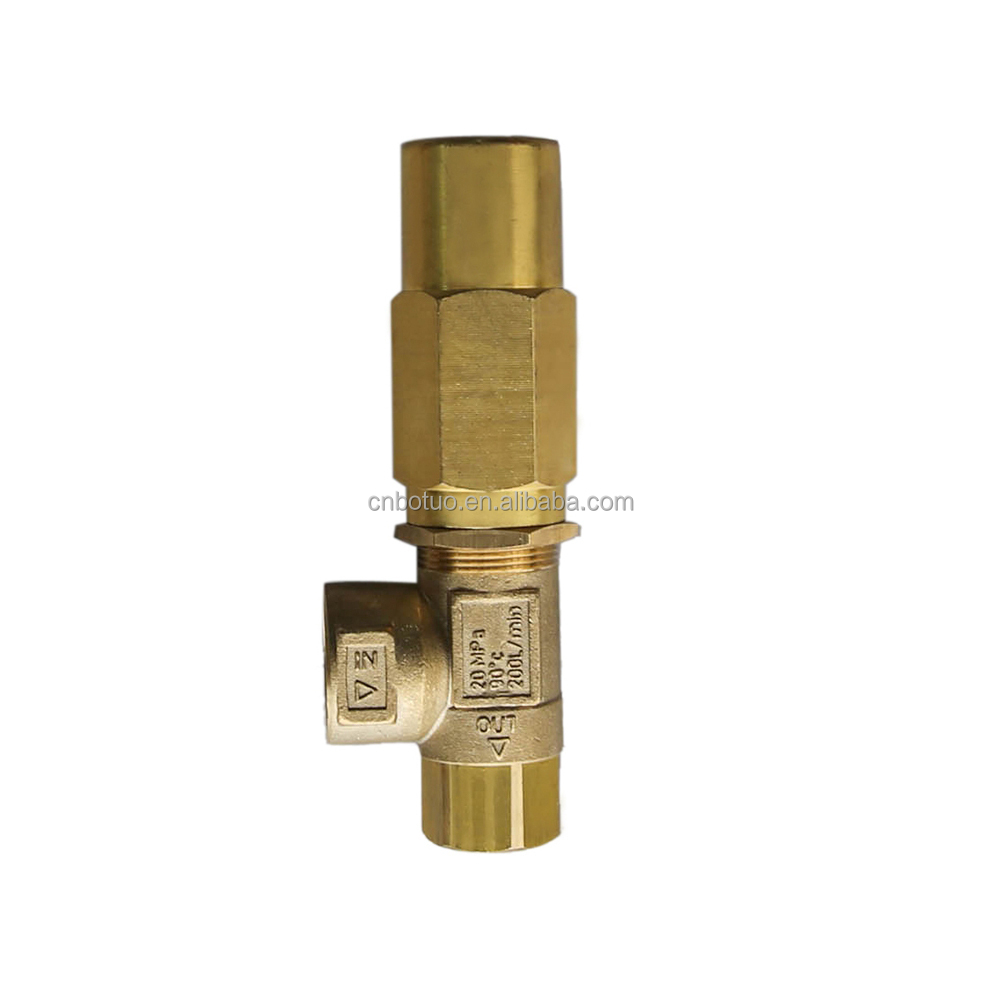

Safety valve : VS200

Flow rate ( 200 lpm /52.84 gpm )

Max pressure (250 bar/3625 psi )

inlet ( G 3/4)

outlet ( G 1/2 )

Applications

Application:

The high pressure plunger pumps are ideally for high pressure cleaning, street and drain jetting, heavy duty industrial systems, mining and drilling applications.
* High Pressure Cleaning.
* Car, Truck, Vehicles Washing
* Construction Site, Oil Field, Shipyard, Mining, Food Cleaning
* High Pressure Sewer Jetting
* High Pressure Street Cleaning
* Others

Product packaging

Our Advantages

1. Innovative & Unique
We are the trend-setter in China for this high pressure plunger pump, we create & design and then introduce it to the consumers, in China, only a few companies have the ability to manufacture this pressure pump, with the unique & special feature, we proudly introduce them to you too.

2. Cost-Effective & Profitable
Compared to other overseas companies, we have great advantage in pricing, and presently, very few Chinese companies involve in this pump, we are the really right supplier or partner for you. It will be a profitable cooperation to work with us.

3. Stability & Dependability
We grasp all the technology of this high pressure plunger pump, and we utilize the highest quality materials & components, plus the gear reduction box, which makes this pressure pump durable & reliable.

4. Superior Service & Support
The technical support & assistance is available anytime, the quick-response will be effected. We will also find the most
economical way to the spare parts requests.

Company Profile

Introduction:

Zhejiang Botuolini Machinery Co.,Ltd established in 2008, is a professional manufacturer of industrial & commercial Hign pressure pumps, high pressure washer equips and misting systems. The company registered capital is 4.65 million USD, and covers an area of more than 40,000 square meters, can realize 300,000 small pumps, 120,000 industrial pumps, 100,000 High pressure cleaners, complete set of cleaning systems 5,000 sets of annual capacity. The annual output value exceeds 45 million USD.

Exhibition

FAQ

Q: Can you do OEM?

A: Yes, we can do OEM products.

Q: Are you a factory or trading company?

A: factory. We are a new manufacturer and exporter of high pressure cleaning machines and accessories in China.

Q: What are your strengths?

A: Advanced production technology. Test equipment. Our experienced r&d team keeps innovating and improving products to meet market demand.

Q: How does your factory control quality?

A: We put "quality" first, and we are developing ourselves better through better service. All staff attach great importance to quality control from beginning to end.

Q: What kind of discounts do you offer?

A: The discount we offer depends on the quantity of your order. In short, the bigger your order, the bigger the discount you get.
