Medium Duty Industrial PU Caster Wheel
3 year ago

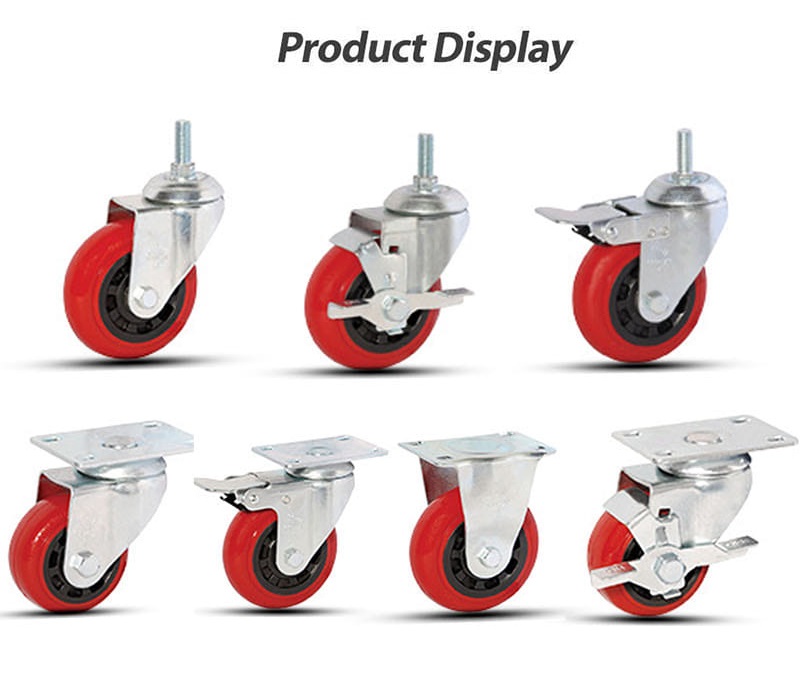

125mm Swivel TPU Castor Medium Duty Screw Casters
Specifications:
1) Wheel diameter: 2.5" 3 "3.5" 4" 5" Caster With Wear Resisting
2) Load Capacity: 80-125kg Wheel With Brake
3) Material: PU Caster Wheel
4) Bearing: with single bearing6001
5) Fixed / swivel (can be with side brake or total brake)
6) Color:Black and Red
Features: attractive appearance, wearing resisting, large loading capacity, noiseless,with elasticity in running
Usages: medical appliance, machine equipment, heavy duty industry, transportation, logistics, etc.
Available Sizes:
| Product name | Material | Plated finish | Wheel bearing |
Loading capacity (kg) |
Wheel diameter (mm) |
Wheel width (mm) |
Plate thickness (mm) |
Fork thickness (mm) |
Top plate size (mm) |
Hole centre (mm) |
Setting height (mm) |
| 2.5"-5" medium duty caster side brake (black) | TPU |
Zinc/ Chromium |
Double bearing 6001 |
80 | 65 | 30 | 3.5 | 2.5 | 92*64 | 72*46 | 90 |
| 93 | 75 | 30 | 3.5 | 2.5 | 92*64 | 72*46 | 105 | ||||
| 108 | 88 | 30 | 3.5 | 2.5 | 92*64 | 72*46 | 120 | ||||
| 115 | 100 | 30 | 3.5 | 2.5 | 92*64 | 72*46 | 130 | ||||
| 125 | 125 | 30 | 3.5 | 2.5 | 92*64 | 72*46 | 155 |
