SSAW Welded Steel Pipe

The production process of straight seam welded pipe is simple, with high production efficiency, low cost, and rapid development. The strength of spiral welded pipes is generally higher than that of straight seam welded pipes. Narrow billets can be used to produce larger diameter welded pipes, and billets of the same width can also be used to produce welded pipes of different diameters. However, compared to straight seam pipes of the same length, the weld length increases by 30-100% and the production speed is lower. Therefore, smaller diameter welded pipes mostly use straight seam welding, while larger diameter welded pipes mostly use spiral welding.Straight seam welded pipes are divided into longitudinal submerged arc welding (LSAW) and electric resistance welding (ERW).

Product Descripation

Outer Diameter	Round pipe: 21.3~219.1mm
Wall Thickness	Round pipe thickness: 1.5mm~18.0mm
Length	3-12M according to client requirement
Standard	EN10255, EN10219, EN10210, EN39, BS1387, ASTM A53, ASTM A500, ASTM A36, API 5L, ISO 65, JIS G3444, JIS3452, DIN 3444, ANSI C80.1, AS 1074, GB/T 3091
Material	Gr.A, Gr.B, Gr.C,  S235, S275, S355,  A36, SS400,  Q195, Q235, Q345
Certificate	ISO 9001:2008,SGS, BV, CCIC etc
Finish of pipe	Hot dipped galvanized with zinc 200~260g/m2; Pre-Galvanized with zinc 30~150g/m2 Painted with black/varnish lacquer; Oil on the surface to prevent rust; Bare pipe without painting: Epoxy painting/FBE coating/3PE coating
Marking	As per client requirement or mill standard Painting method: Spray white paint
Packing	OD not less than 273mm: Loose packing,piece by piece. OD less than 273mm: In hexagonal seaworthy bundles packed by steel strips. small sizes nested into big sizes.
Applications	Construction / building materials steel pipe Steel structure Scaffolding pipe Fence post steel pipe Fire protection steel pipe Greenhouse steel pipe Low pressure liquid, water, gas, oil, line pipe Irrigation pipe Handrail pipe
Techinical	ERW (high - frequency welded)
Trade Term	FOB, CFR, CIF, EXW, FCA
Delivery Time	15-45 days (based on quantity) after receiving advanced payment by T/T or LC .
Payment Term	T/T, LC

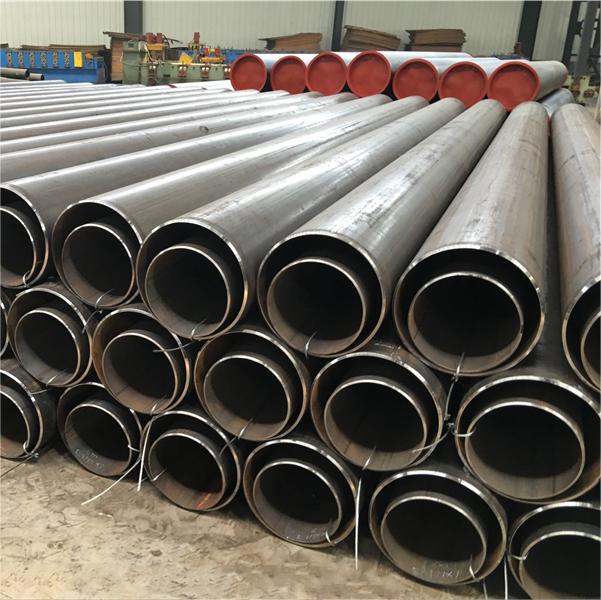

Detailed Photos

• All the pipes is high-frequency welded.
• Both inner and outer welded stab can be removed.
• Special design available according to requirement.
• Pipe can be necked down and punched holes and so on.
• Supplying BV or SGS Inspection if client need.

Packaging and Loading

• Wire rod covered with wooden plate for protection in transportation.
• Wire rod will be loaded in strong wooden packages.
• Every cartons loaded with good shoring and strengthening.
• Take container loading pictures and seal the container.
• Transportation speed is quick. And keep customer each step informed.
