Galvanized Steel Plate



Galvanizing, or galvanization, is a manufacturing process where a coating of zinc is applied to steel or iron to offer protection and prevent rusting. There are several galvanizing processes available, but the most commonly offered and used method is called hot-dip galvanizing.

Galvanized steel is among the most popular steel types because of its extended durability, having the strength and formability of steel plus corrosion protection of the zinc-iron coating. The zinc protects the base metal by acting as a barrier to corrosive elements, and the sacrificial nature of the coating results in a long-lasting and high-quality steel product.

This versatility makes it applicable to a variety of projects and industries, including agriculture, solar, automotive, construction, and so on. Below, we aim to provide a comprehensive description of how galvanized steel is processed, different galvanization methods, its benefits, and how it is used in these various industries.

Product Descripation

Product Name	Galvanized Steel Sheet
Standard	AISI, ASTM, BS, DIN, GB, JIS
Thickness	0.25-2 mm or as your request
Normal Width	1250mm 1500mm 1800mm 2000mm etc.
Length	Customers' Requirement
Technique	Hot dipped,hot rolled
Place of Origin	China
Suface Treatment	Galvanized
Price Terms	Ex-Work,FOB,CFR,CIF,FCA,etc
MOQ	5 Tons
Payment Terms	T/T
Place of Loading	Shanghai Port
Delivery Time	Shipped in 7-10 days,according to the specific order

Galvanized Steel Sheet Gauge Chart
Gauge	mm	Inches
8	4.27	0.1681
9	3.89	0.1532
10	3.51	0.1382
11	3.13	0.1233
12	2.75	0.1084
14	1.99	0.0785
16	1.61	0.0635
18	1.31	0.0516
20	1.01	0.0396
21	0.93	0.0366
22	0.85	0.0336
23	0.78	0.0306
24	0.7	0.0276
25	0.63	0.0247
26	0.55	0.0217
27	0.51	0.0202
28	0.47	0.0187
30	0.4	0.0157

Standard	GB/T 2518	EN10346	JIS G 3141	ASTM A663
Grade	DX51D+Z	DX51D+Z	SGCC	CS Type C
	DX52D+Z	DX52D+Z	SGCD1	CSTypeA.B
	DX53D+Z	DX53D+Z	SGCD2	FS Type A, B
	DX54D+Z	DX54D+Z	SGCD3	DDS Type C
	S250GD+Z	S250GD+Z	SGC340	SS255
	S280GD+Z	S280GD+Z	SGC400	SS275
	S320GD+Z	S320GD+Z	-	-
	S350GD+Z	S350GD+Z	SGC440	SS340 Class4
	S550GD+Z	S550GD+Z	SGC590	SS550 Class2

The steps in the galvanizing process are as follows:
1.The steel is cleaned in a degreasing solution
2.After being cleaned, the steel is pickled by being lowered into a vat of diluted hot sulfuric acid
3.The steel is then fluxed in an aqueous solution (typically zinc-ammonium chloride)
4.After the flux, the steel is galvanized through immersion in a vat of molten zinc
5.Afterward, the steel is inspected for consistency and a complete coating

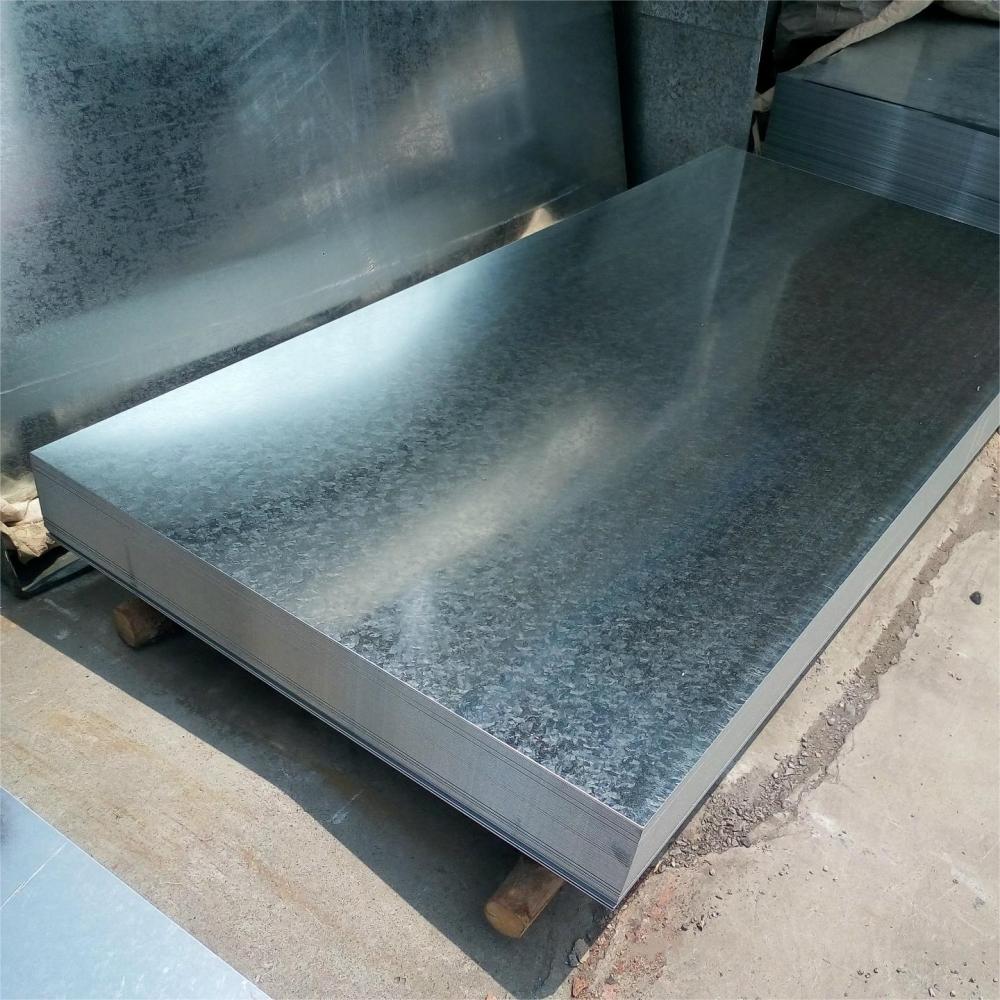

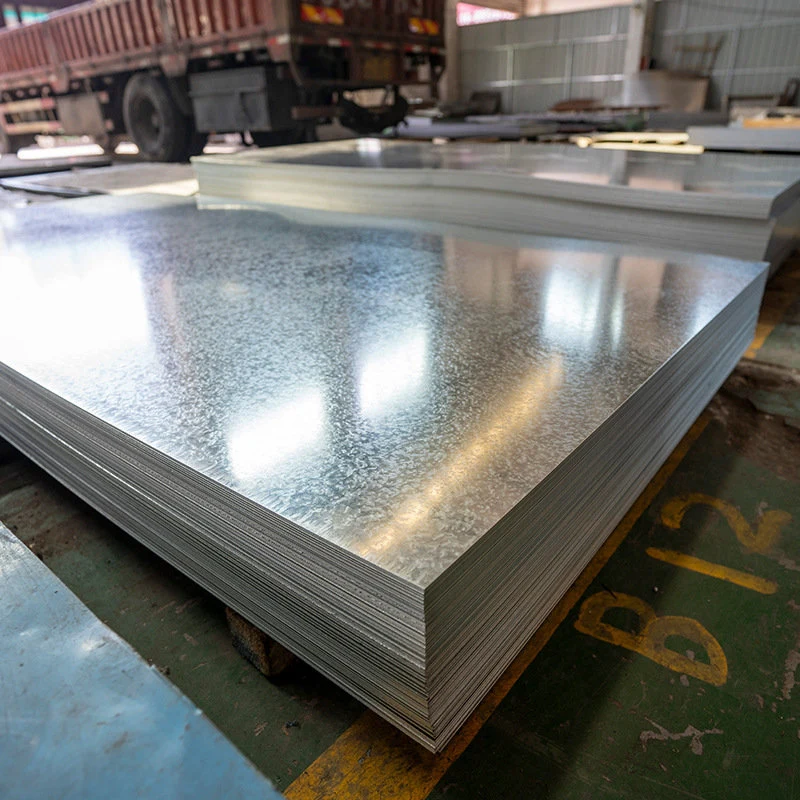

Detailed Photos

Packaging and Loading

• Wire rod covered with wooden plate for protection in transportation.
• Wire rod will be loaded in strong wooden packages.
• Every cartons loaded with good shoring and strengthening.
• Take container loading pictures and seal the container.
• Transportation speed is quick. And keep customer each step informed.

Applycation

• 1. Hot galvanized sheet is mainly used in agricultural machinery, grain storage and high-speed guardrail industries in life, and its outstanding feature is low cost and high added value.
• 2. Galvanized sheet is also used in building materials, home appliances, automobiles and other industries, because these industries are more or less involved in the support of steel structure, the emergence of galvanized sheet is a clever solution to this problem, I believe that in the future its demand will continue to increase.
• 3. Galvanized sheet in addition to the industrial production has a wide range of applications, it also plays an important role in modern buildings, factories, spatial structure, transportation and energy, etc. Galvanized sheet in these fields of application is mainly to play a protective film role, so that the external erosion of the object weakened.
