end feed copper fittings

45°Copper Elbow,Street Elbow

• Description：45°Copper Elbow,Street Elbow (Lead Free).Size from 1/4″ to 6-1/8″,including equal 45°elbow, Street 45°elbow
  45°Copper Elbow and Street Elbow is very similar as copper 90° elbow. The function & size range is also same.the products are all produced according to EN1254-1 and ASME B16.22.RUNDE Copper fittings widely used in drinking supply,cold and hot water supply, heating supply, fire protection,gas supply, industrial petroleum pipeline system etc.
  Suit Medium:Cold Water, Hot Water, Compressed Air, Gas, Oil Etc
  The copper fittings known as copper pipe fittings,copper pressure fittings and copper plumbing fittings, divided to end feed copper fittings(wrot joint copper fittings ) and solder ring copper fittings(presolder copper fittings).And the  quality of our EN1254-1 copper fittings can compare with yorkshire copper fittings(Pegler copper fittings) and connex copper fittings.our ASME B16.22 copper fittings also has exported to Mueller in U.S.The 45° Copper Elbow Street Elbow can change the direct pipeline to 45°. And we also have other fittings can change the direction to 90°  and 180°.


• Production Standard:
  1.EN1254-1/BS864-2(Copper And Copper Alloys-Plumbing Fittings)
  2.ANSI/ASME B16.22-2001(Wrought Copper And Copper Alloy Solder Joint Pressure Fittings)


• Material: C12200(Cu-DHP CW024A ，SF-Cu 2.0090 and TP2)
  Cu≥99.95% P0.015%-0.04% Impurity(P,Ag,Bi,Sb,As,Fe,Pb,Sn,S,Zn)≤0.1


• Application: Industrial or Residential Water and plumbing，drinking supply,cold and hot water supply, heating supply, fire protection,gas supply, industrial petroleum pipeline system etc.
  Suit Medium:Cold Water, Hot Water, Compressed Air, Gas, Oil Etc

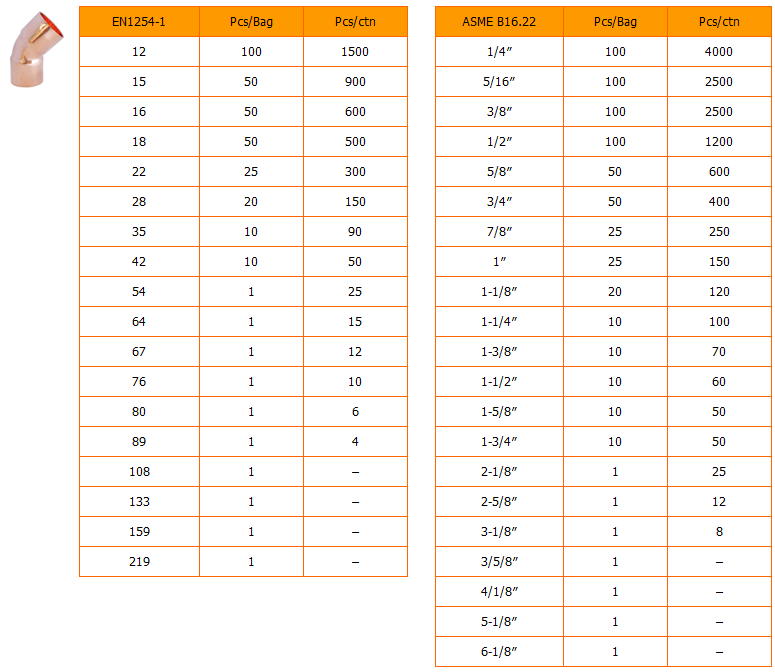

EN1254-1 Pcs/Bag Pcs/ctn 12 100 1500 15 50 900 16 50 600 18 50 500 22 25 300 28 20 150 35 10 90 42 10 50 54 1 25 64 1 15 67 1 12 76 1 10 80 1 6 89 1 4 108 1 – 133 1 – 159 1 – 219 1 –

ASME B16.22 Pcs/Bag Pcs/ctn 1/4″ 100 4000 5/16″ 100 2500 3/8″ 100 2500 1/2″ 100 1200 5/8″ 50 600 3/4″ 50 400 7/8″ 25 250 1″ 25 150 1-1/8″ 20 120 1-1/4″ 10 100 1-3/8″ 10 70 1-1/2″ 10 60 1-5/8″ 10 50 1-3/4″ 10 50 2-1/8″ 1 25 2-5/8″ 1 12 3-1/8″ 1 8 3/5/8″ 1 – 4/1/8″ 1 – 5-1/8″ 1 – 6-1/8″ 1 –
