Canghai double color flexo printing die cutting slotting machine
|
Model |
ZYKM2536 |
|
|
Max. machine speed(pcs/min) |
100 |
|
|
Max. feeding size (mm) |
2570×3600 |
|
|
Skip feeding size (mm) |
3100×3600 |
|
|
Max printing area (mm) |
2500×3600 |
|
|
Min. feeding size (mm) |
600×890 |
|
|
Max. Depth of slotting (mm) |
660 |
|
|
Registration precision (mm) |
≤±0.6 |
|
|
Printing plate thickness (mm) |
6 |
|
|
Thickness of paper (mm) |
2.5-12 |
|
|
Min. slotting interval (mm) |
Normal |
190×190×190×190 |
|
Reverse |
310×110×310×110 |
|
MACHINE FEATURES
*. This machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.
*. Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.
*. Adopt high quality material and assembly part.
*. The slot knife seat lateral movement uses the electric control, in fast and accurate.
*. Rubber roller automatic displacement device,prolong the service life .
*. Quick replacement rubber anvil is from abroad,it is easy for replacement and wear-proof.
*. Pull roller puick lateral moving mechanism.
*. Equipped with automatic paper stacking machine.

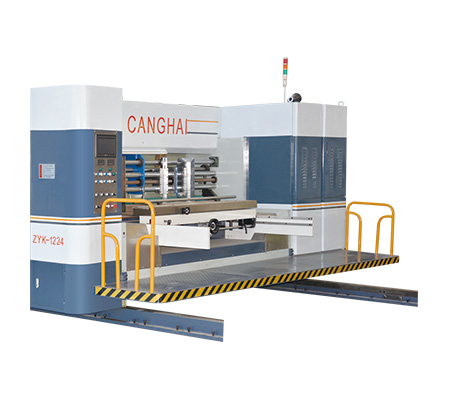

FEEDER:
*. Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
*. Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
*. Touch screen displays production speed and quantity.
*. Adjust the feed interval by manual.

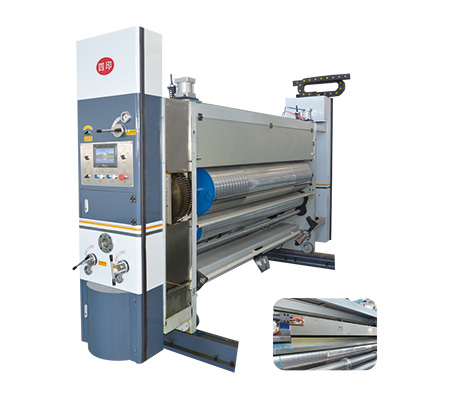

PRINTER:
*. Adopt hanging structure,,convenience and fast to set up.
*. Installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse
*. To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs,the anilox roller goes down to
*. Printing phase adopt PLC touch screen and 360 degree electric adjustment.
*. Pull roller quick lateral moving mechanism, self-locking gap adjustment device.

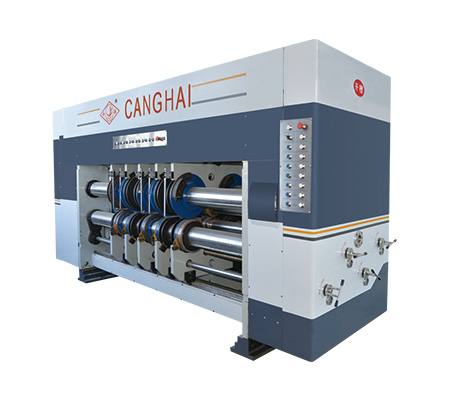

BIAX SLOTTER:
*. Unique double slotted structure, elimination of Collision between front and back tool, Processing of large size high carton box.
*. The slot knife thickness is 7-8 millimeter,which is from high quality alloy,tooth profile in sharp cutting, high wearable.
*. Spring type single slitting knife with glabrous slitting effect and cost saving.
*. Middle knife motorized moving device, fit for each production.

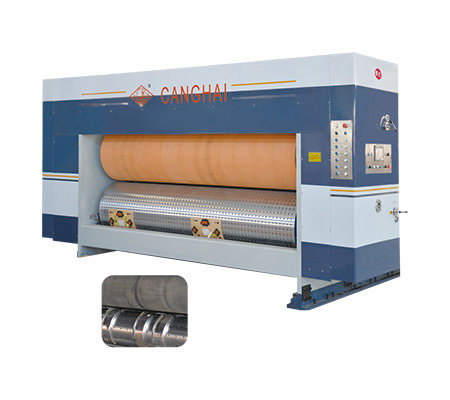

ROTARY DIE-CUTTER:
*. Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
*. Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
*. Machine with rubber amend device, the rubber roller can be used after many times amend.
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
2. Where is your company located? How can I visit there?
Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--25 years' experience: We have been in making die cutting machine carton box for 25 years.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
5. Whats your guaranty time?
We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
