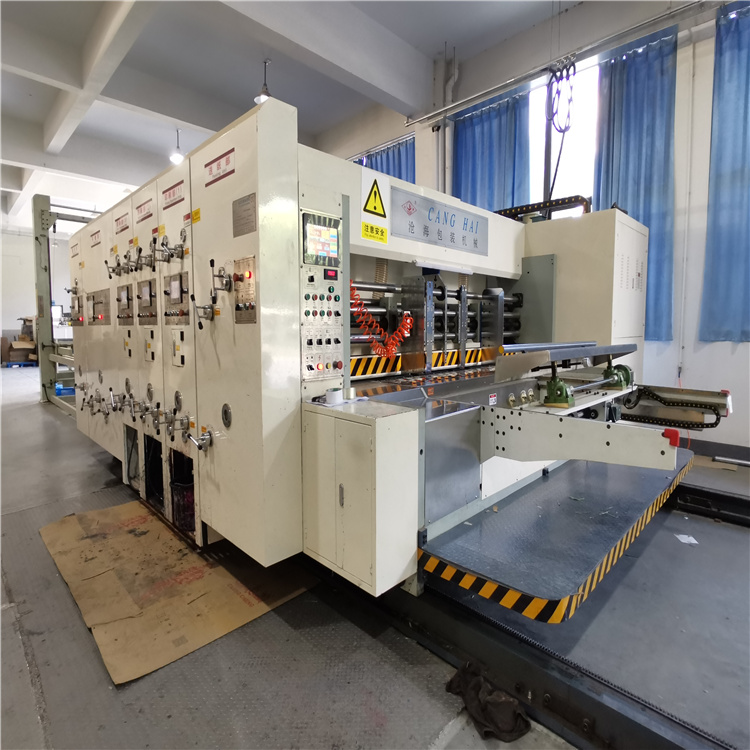

Canghai printing die cutting machine with stack
|
Model |
ZYKM2536 |
|
|
Max. machine speed(pcs/min) |
100 |
|
|
Max. feeding size (mm) |
2570×3600 |
|
|
Skip feeding size (mm) |
3100×3600 |
|
|
Max printing area (mm) |
2500×3600 |
|
|
Min. feeding size (mm) |
600×890 |
|
|
Max. Depth of slotting (mm) |
660 |
|
|
Registration precision (mm) |
≤±0.6 |
|
|
Printing plate thickness (mm) |
6 |
|
|
Thickness of paper (mm) |
2.5-12 |
|
|
Min. slotting interval (mm) |
Normal |
190×190×190×190 |
|
Reverse |
310×110×310×110 |
|
MACHINE FEATURES
*. This machine is designed and produced based on high quality, high speed, high efficiency, reliability and safety, with the advantages of quick changing order and easy operation.
*. Adapting imported PLC with touch screen control. It can save order, and accelerate the changing order speed.
*. Adopt high quality material and assembly part.
*. The slot knife seat lateral movement uses the electric control, in fast and accurate.
*. Rubber roller automatic displacement device,prolong the service life .
*. Quick replacement rubber anvil is from abroad,it is easy for replacement and wear-proof.
*. Pull roller puick lateral moving mechanism.
*. Equipped with automatic paper stacking machine.

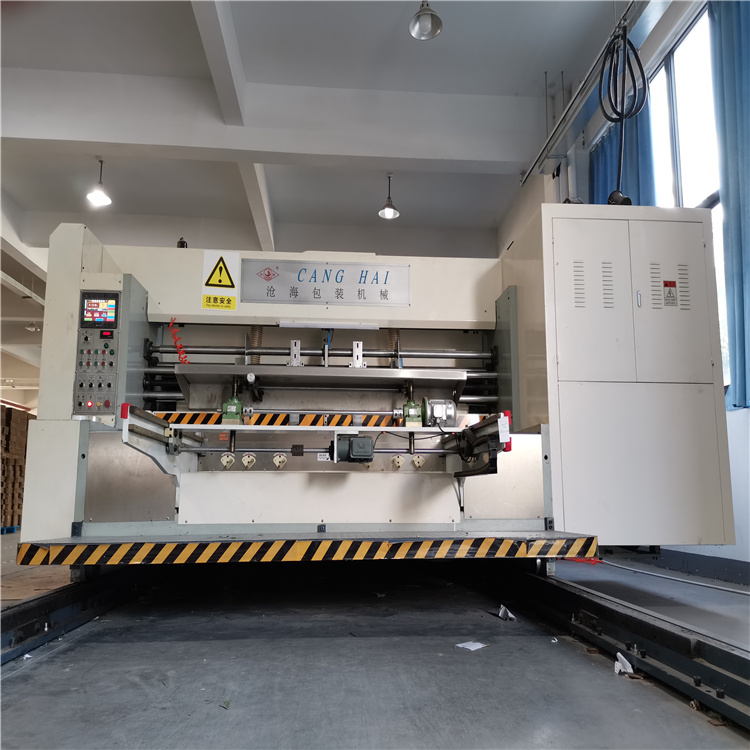

FEEDER:
*. Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
*. Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
*. Touch screen displays production speed and quantity.
*. Adjust the feed interval by manual.

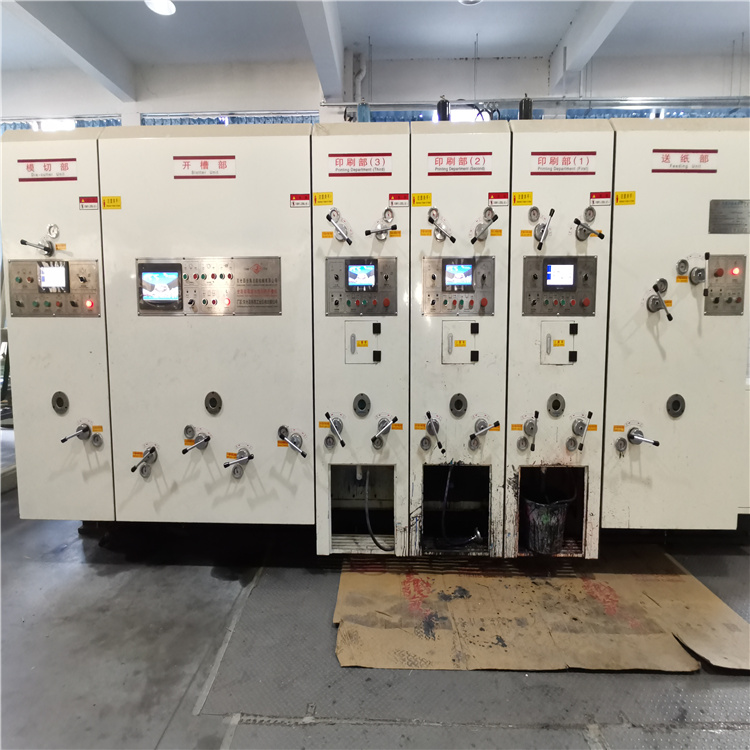

PRINTER:
*. Adopt hanging structure,,convenience and fast to set up.
*. Installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse
*. To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs,the anilox roller goes down to
*. Printing phase adopt PLC touch screen and 360 degree electric adjustment.
*. Pull roller quick lateral moving mechanism, self-locking gap adjustment device.

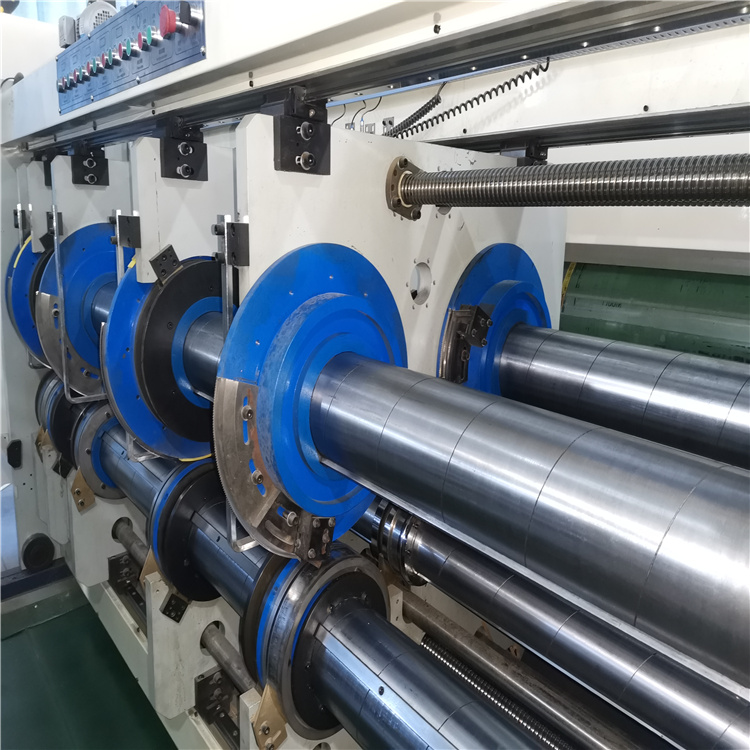

BIAX SLOTTER:
*. Unique double slotted structure, elimination of Collision between front and back tool, Processing of large size high carton box.
*. The slot knife thickness is 7-8 millimeter,which is from high quality alloy,tooth profile in sharp cutting, high wearable.
*. Spring type single slitting knife with glabrous slitting effect and cost saving.
*. Middle knife motorized moving device, fit for each production.

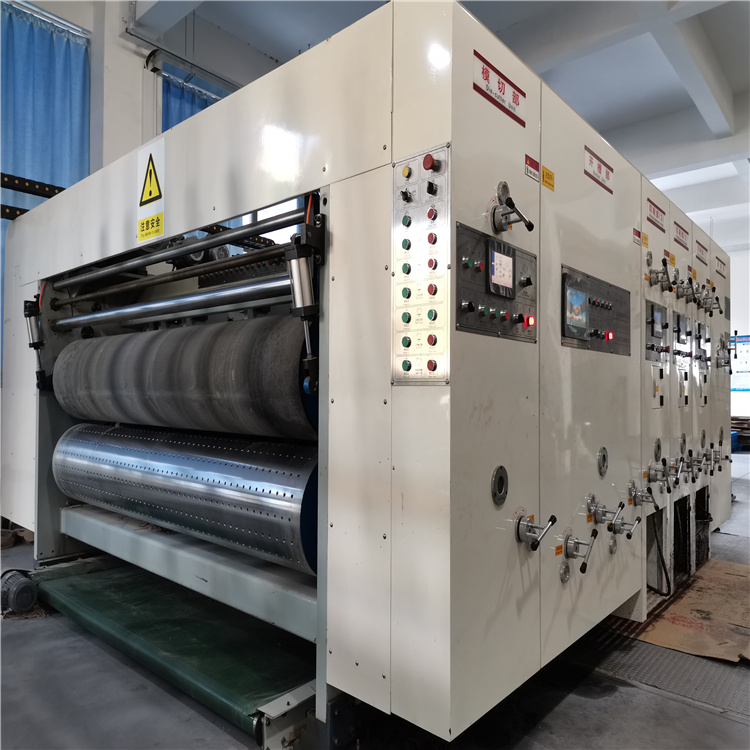

ROTARY DIE-CUTTER:
*. Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
*. Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
*. Machine with rubber amend device, the rubber roller can be used after many times amend.
