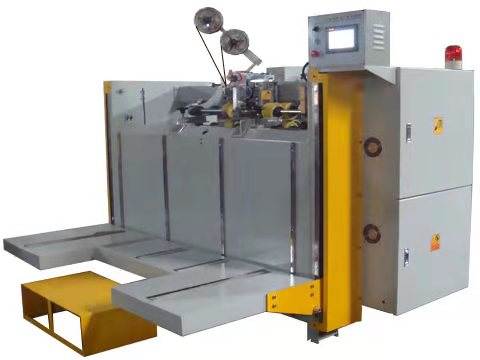

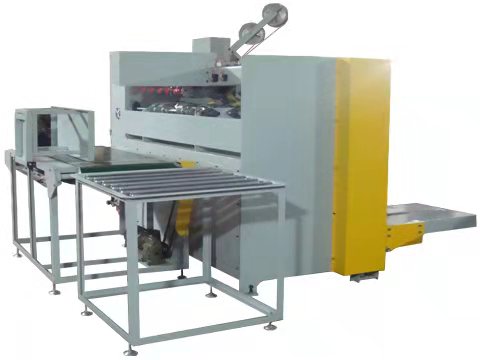

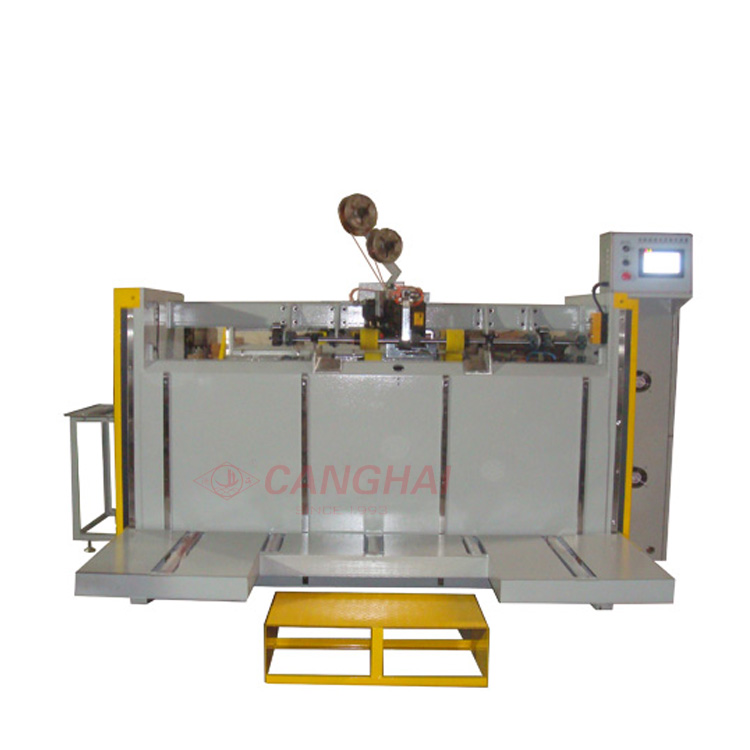

China Cangzhou-made semi-automatic corrugated box stitcher machine for the carton factory1
3 year ago
Carton box stapling nail servo stitcher stitching machine
1.Japan Mitsubishi four-servo drive, accurate precision, reduced mechanical transmission parts, which can effectively reduce the failure rate of machinery.
2. The entire control system adopts Omron PLC control system.
3. All contactors in the control box adopt the German Siemens brand.
4. The relay and circuit breaker adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.
5. The bottom mold and blade are made of Japanese alloy tungsten steel (wear-resistant).
6. The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.
7. It only takes one minute to change the size of the carton and adjust the nail distance of the carton, which greatly saves time and is easy to operate.
8. There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99).Then pack and bundle.
9. The front paper feeding part automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.
10. Paper feeding height: 900mm.
11. Mechanical speed: 600 nails/min.
12. One set of dual purpose, can nail single-chip nailed carton, double-chip nailed carton, irregular carton.
13. Reinforced nails, single nails, double rows of nails can be nailed, all at once.
14.The paper feeding department automatically counts, and the finished product is sent out for binding.
15. Suitable for small and medium-sized cartons, fast and labor saving.
16. Adjust the nail distance, use the computer to set the nail distance automatically, the nail distance can be adjusted arbitrarily from 30-150mm;
17. Automatic wire feeding system, 20KG large flat wire, saving time.
18. Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.

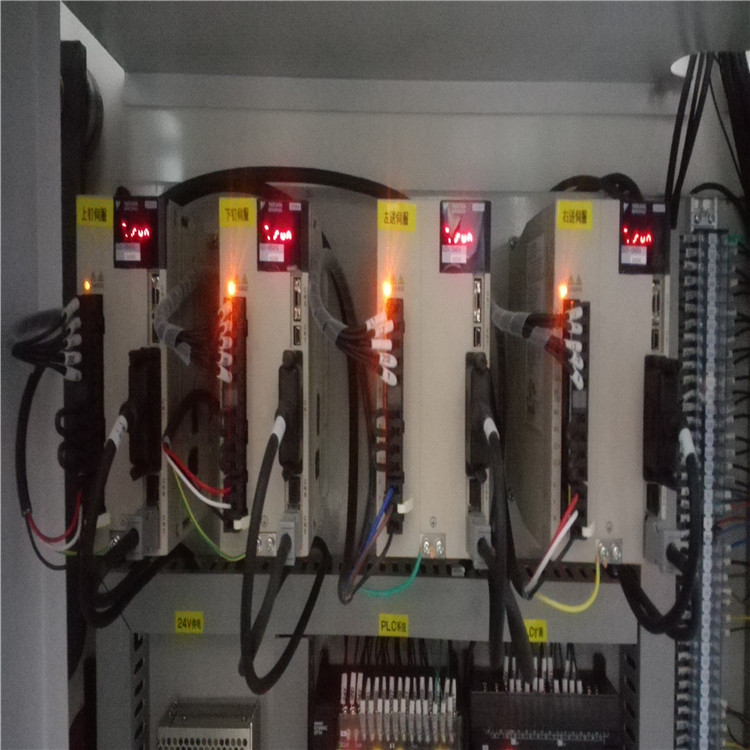

19. This machine uses four servo motors (namely, two head motors and two feeding motors).
20. Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.
21. The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and 1000 orders can be stored.
22. Binding method: double oblique nail or single oblique nail/reinforced nail
|
Model |
1600D |
2000 |
2500 |
|
Max size(A+B)*2 (mm) |
3200 |
4000 |
5000 |
|
Min size(A+B)*2 (mm) |
980 |
980 |
980 |
|
Max lengthA mm |
1480 |
1880 |
2380 |
|
Min length A mm |
370 |
370 |
370 |
|
Max widthB mm |
800 |
1000 |
1250 |
|
Min widthB mm |
120 |
120 |
120 |
|
Max height(C+D+C) (mm) |
2900 |
2900 |
2900 |
|
Min height(C+D+C) (mm) |
400 |
400 |
400 |
|
Max C(mm) |
450 600 |
450 600 |
450 600 |
|
Min C(mm) |
80 20 |
80 20 |
80 20 |
|
Max D(mm) |
2000 |
2000 |
2000 |
|
Min D(mm) |
200 |
200 |
200 |
|
E(mm) |
40 |
40 |
40 |
|
Nail distance mm |
30-150 |
30-150 |
30-150 |
|
Nail number |
2-99 |
2-99 |
2-99 |
1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been making automatic high speed water based printing slotting die cutting machine for more than 25 years.
2. Where is your company located? How can I visit there?
Our factory address: dongguang county, Cangzhou city, hebei province,China. You could go to tianjin airport fist, and then take high speed rail come to cangzhou, we will pick you up.
3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.
4. What’s your advantages ?
--25 years' experience: We have been in making die cutting machine carton box for 25 years.
--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
5. Whats your guaranty time?
We can take 3 years warranty, actually our longest cooperation customer have been using our product for more than 10 years with no problem.
