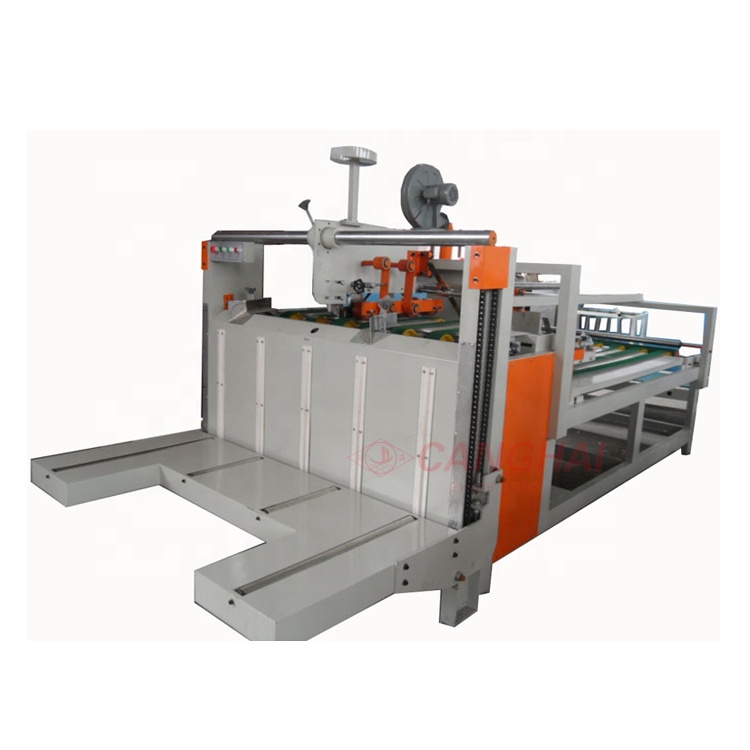

High quality semi auto corrugated cardboard carton box folder gluer machine 28001

ZXJ-B type semi-automatic sticky box machine is in recent years the carton manufacturing of new environmental protection equipment, mainly for the carton adhesion, discard the traditional copper nail binding method, improve the production efficiency, ChanPinXing good quality.

Main frame: frame, lift workstation, conveying equipment, middle recently conveying equipment, pressure and device, finished product middle side output equipment, electrical control equipment.

The product structure:

一、ZXJ-B type semi-automatic sticky box machine adopts sophisticated processing technology and high quality steel processing production, mechanical efficiency is 40 pieces per minute. Using intelligence even Numbers show counter, automatic stacker sided output.

二、The paper sets can finish lifting automatically or by pedal, convenient and quick, improving production efficiency.

三、Glue head uses imported high quality American aluminum, glue wheel adopts high quality stainless steel from Japan; glue rubber adopts high quality Japanese POM steel, the natural pressure is made by high quality stainless steel and give glue by glue barrels

四、Automatic correction department adopts the 180 degrees directly shooting, effectively correcting scissors difference caused by incorrect paper-pressing. Automatic counting and tidy accumulation.

五、Fittings choose:

1. The machine choose 380 v AC, power 2.2 KW, energy saving, high efficiency.

2. Choose imported Italian belt loop seamless butt joint belt.

3. Bearing choose the international famous brand TR bearing.

4. Spiral wire rod, ball screw, nut are chosen for 45 # steel, high quality and quenching processing.

5. With Copper set (ZQSn6-6-3), drops of oil lubrication, wear-resisting and durable.

6. The whole machine are chosen for Taiwan's motor's, low noise, environmental protection, energy saving and low energy consumption.

The main technical parameters

Max size (length+width)*2:	2800mm
Min size (length+width)*2	340mm
Working speed	60m/min
Max size (width+height)	1515mm
Min size (width+height)	260mm
The height of feeding	1000mm
The weight of machine	1500kg
Power	4.0 kw
