Canghai automatic carton box making machine1

Canghai automatic carton box making machine

Paper feeding unit

• Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
• Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
• Brushes and suction device remove dust from board surface.
• Touch screen displays production speed and quantity.
• Adjust the feed interval by manual.

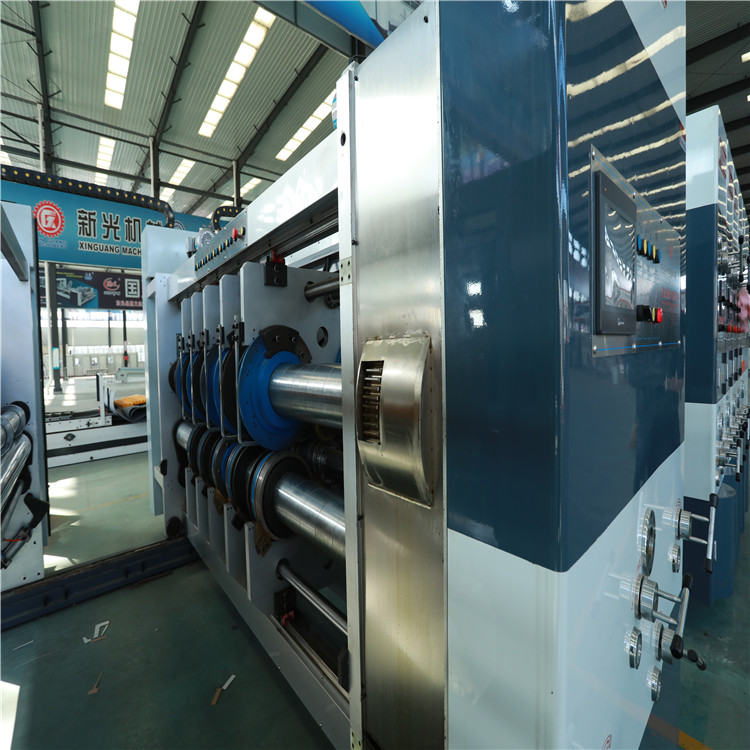

 Printing unit

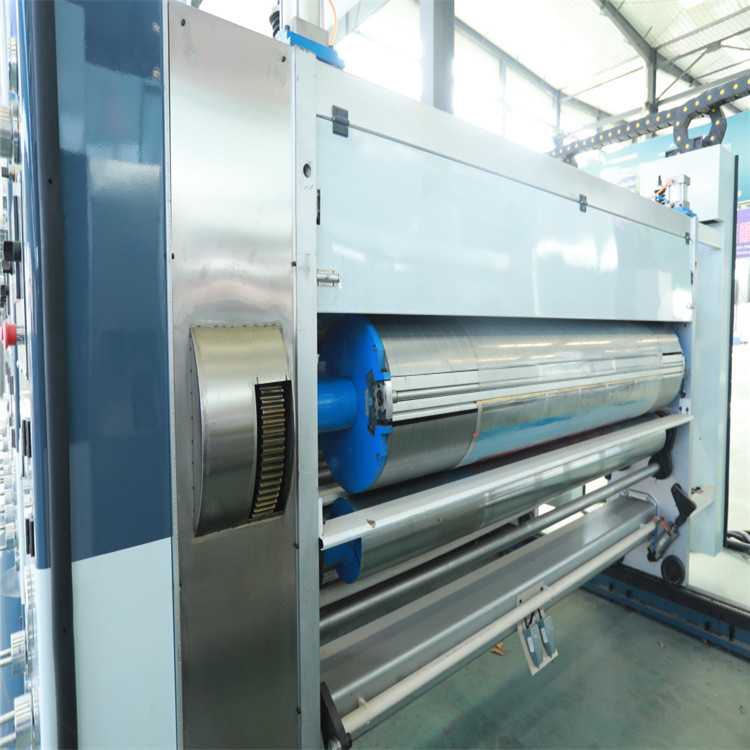

• Both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated.dynamic and static balance correction ensure to run stability.
• Adopt hanging structure,,convenience and fast to set up.
• Installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse
• To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs,the anilox roller goes down to contact with printing plate,while,on contract,leave printing plate.)
• Phase position utilizing electromagnetic clutch locking device, with intelligent zeroing function and can reset in dynamic and static condition.
• Printing phase adopt PLC touch screen and 360 degree electric adjustment.
• Pull roller quick lateral moving mechanism, self-locking gap adjustment device

1.High precision dynamic balance reticulated mottles roller,printing effect is fine.

2.The printing phase is controlled by computer and electric digit with 360°adjustment.

3.The print plate roller is adjusted horizontally with computer and electric digit control ranging from-10mm to +10mm.

4.The interval of transmission roller, paper press roller and glue roller adopt self-lock structure.

5.Brush plate reset, printing ink inspection, fission brake location and water ink clean mechanism.

Has rapid handing plate mechanism

 Slotting Machine

• Unique double slotted structure, elimination of Collision between front and back tool,Processing of large size high carton box.(Type1224/1428)
• The slot knife thickness is 7-8 millimeter,which is from high quality alloy,tooth profile in sharp cutting,high wearable.
• The slot knife with phasing and box height adjustment device, the frequency changer control the dynamic 360 degree adjustment.
• Precision linear slide way , accurate lateral movement with smooth slotting.
• Regards the user’s need it can match the punch device.
• Pre-creaser, creaser, slotting knife holder, self-locking gap adjustment device.
• Spring type single slitting knife with glabrous slitting effect and cost saving.
• Middle knife motorized moving device, fit for each production.
