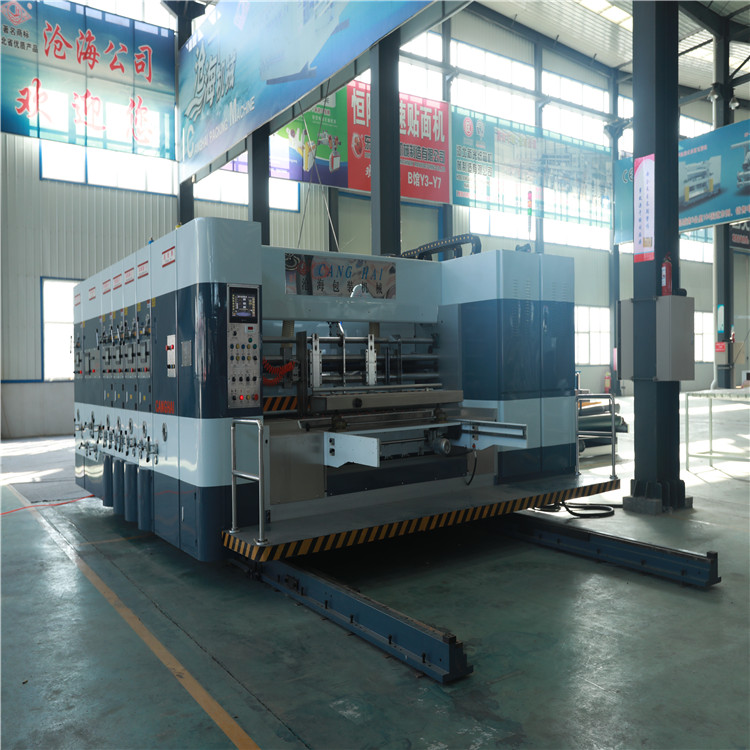

ZYKM1224 series of automatic flexo printer slotter die-cutting carton making machine1

Functions and characteristics

1. Computer adjustment, change order quickly, operation conveniently.
2. Complete machine wall board and other important pieces are all made by high precision process center.
3. All transmission axle and roller are made of high quality steel with high precision dynamic balance, plated with rigid chrome and grinded surface.
4. The transmission gear adopt 20CrMnTi high quality alloy steel which is grinded after heat-treatment hardness HRC58-62, after long use, it still maintains the high topping precision.
5. Whole machine main structure part using the hand-free connecting link, eliminated the link interval, suit to the long term high-speed printing.
6. Machine adopt the spray lubrication style, and have the oil self-balance device.
7. Automatic return zero, and auto reset.
8. SIMENS and SCHNEIDER brand, low-voltage electric appliance, frequency conversion control main machine. Save electric energy 30%.
9. Double axle slotting match with whole machine produce manage computer control system, single axle slotting match with whole machine computer control system.

Main technical parameter

Paper feeding unit

• Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
• Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
• Brushes and suction device remove dust from board surface.
• Touch screen displays production speed and quantity.
• Adjust the feed interval by manual.

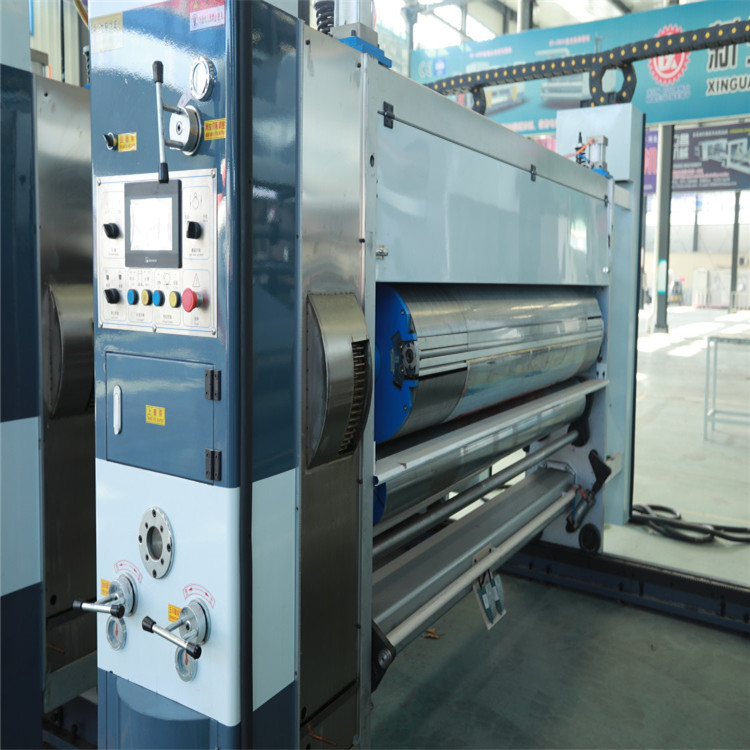

Printing unit

• Both printing cylinder and impression cylinder are made of high quality steel with grounding surface and chrome plated.dynamic and static balance correction ensure to run stability.
• Adopt hanging structure,,convenience and fast to set up.
• Installing and uninstalling printing plate with pedal switch or operation panel to control forward and reverse
• To match with feeding unit the machine with automatic lift anilox, when the feeding unit runs,the anilox roller goes down to contact with printing plate,while,on contract,leave printing plate.)
• Phase position utilizing electromagnetic clutch locking device, with intelligent zeroing function and can reset in dynamic and static condition.
• Printing phase adopt PLC touch screen and 360 degree electric adjustment.
• Pull roller quick lateral moving mechanism, self-locking gap adjustment device.

1.High precision dynamic balance reticulated mottles roller,printing effect is fine.

2.The printing phase is controlled by computer and electric digit with 360°adjustment.

3.The print plate roller is adjusted horizontally with computer and electric digit control ranging from-10mm to +10mm.

4.The interval of transmission roller, paper press roller and glue roller adopt self-lock structure.

5.Brush plate reset, printing ink inspection, fission brake location and water ink clean mechanism.

Has rapid handing plate mechanism

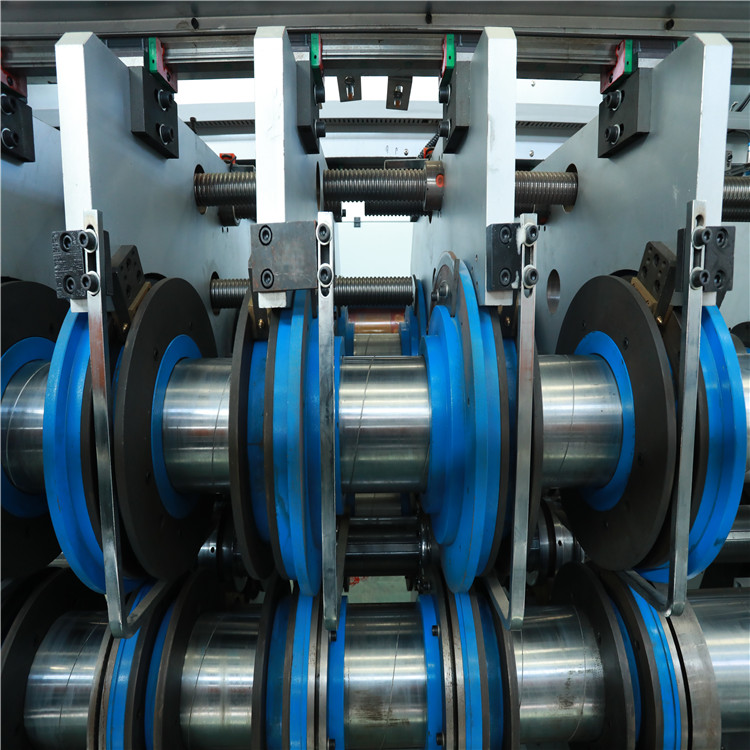

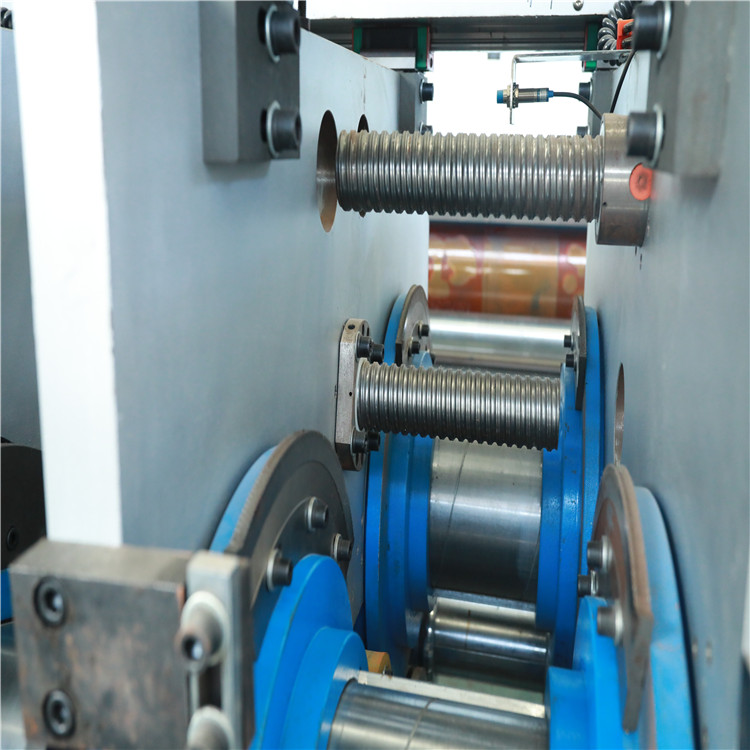

 Slotting Machine

• Unique double slotted structure, elimination of Collision between front and back tool,Processing of large size high carton box.(Type1224/1428)
• The slot knife thickness is 7-8 millimeter,which is from high quality alloy,tooth profile in sharp cutting,high wearable.
• The slot knife with phasing and box height adjustment device, the frequency changer control the dynamic 360 degree adjustment.
• Precision linear slide way , accurate lateral movement with smooth slotting.
• Regards the user’s need it can match the punch device.
• Pre-creaser, creaser, slotting knife holder, self-locking gap adjustment device.
• Spring type single slitting knife with glabrous slitting effect and cost saving.
• Middle knife motorized moving device, fit for each production.

Die cutting unit

• Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
• Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.
• Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
• The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
• Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
• Machine with rubber amend device, the rubber roller can be used after many times amend.
• Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )
