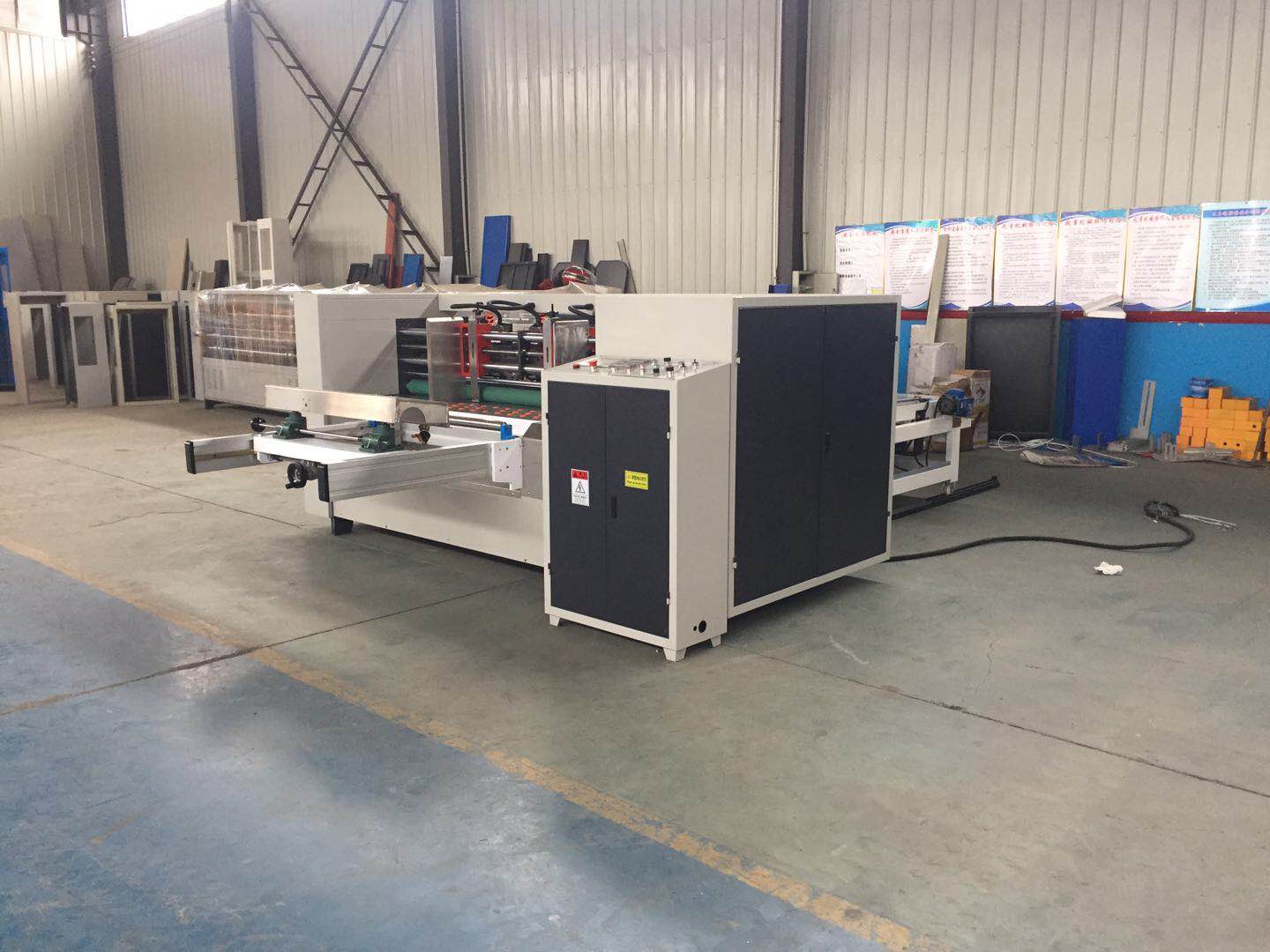

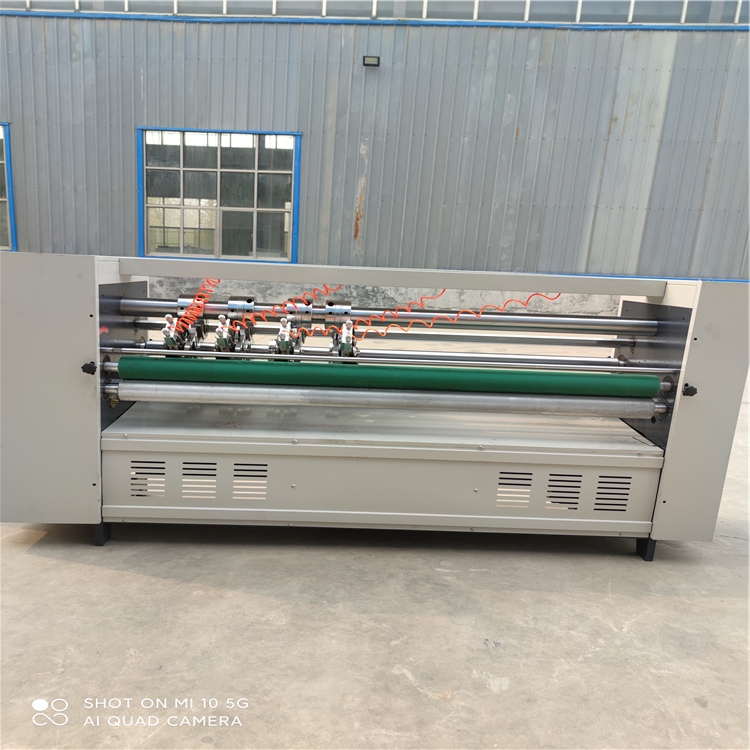

Automatic corrugated slitter scorer machine
Function and Features:
1.Can set the qty. of paperboard,automatic stop the feeding after finishing.
2.Auto suction feeding,assured the safety of workers and decreased the working load.
3.Suitable to a large scale paperboard maching.
4.Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.
5.Electric adjusted the space of slitter blade,auto pneumatic locking,easy to operate,improve the efficiency.
6.Doule guide optical axis,stable operation;inlay PU ring seal,clean and dust-proof.
7.Slitting part:adopt high quality tungsten steel blade,sharp and long work-life,slice
more tidy,non-pressing and non-burr.
8. The former and latter rubber rollers minished the processable paper length.

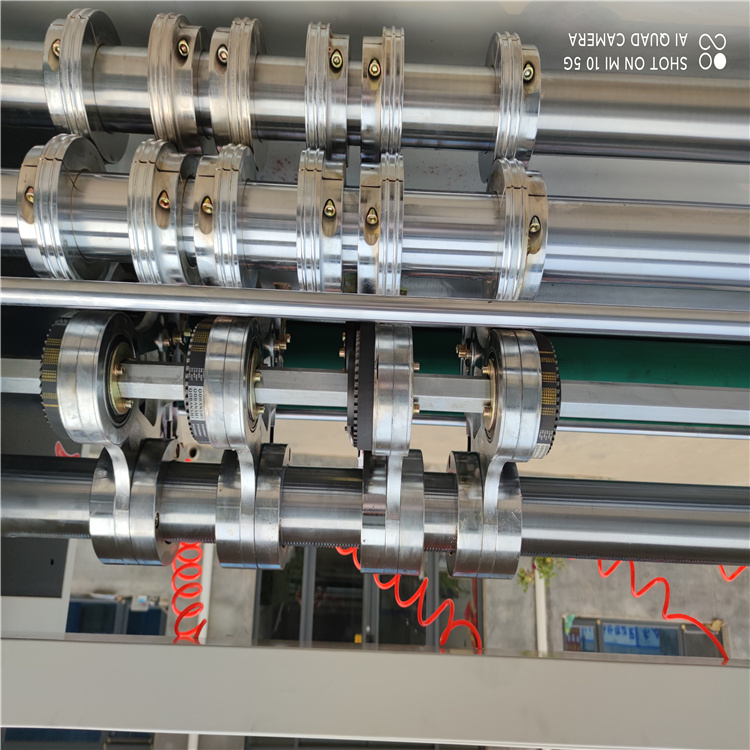

9.Scorer part:adopt 5 points scoring,scoring distance in-phase adjust,blazonry and easy to bend the carton sheet.
|
Model |
SMBD-ZDSL- |
SMBD-ZDSL-2200 |
SMBD-ZDSL- 2500 |
SMBD-ZDSL-3000 |
|
Effective width |
1600mm |
2000mm |
2300mm |
2800mm |
|
Min.sliting length |
300mm |
300mm |
300mm |
300mm |
|
Min.slitting width |
130mm |
130mm |
130mm |
130mm |
|
Min.scorer width |
130mm |
130mm |
130mm |
130mm |
|
Machine dimension |
2430*1120*1400 |
2630*1120*1400 |
2930*1120*140 0 |
3430*1120*1400 |
|
Total power |
5.5kw |
5.5kw |
5.5kw |
7kw |
