Customized SS Duplex Oil Filter

Customized SS duplex oil filter assembly

---Stainless steel material

---up to 1300 L/min

---up to 25/40 bar

---equipped with a ball change-over valve

1. Technical Specifications

1.1 Filter Housing

Construction

SS duplex oil filter assembly is customized and designed in accordance with international regulations. The two sections of the filter housing (each with bolt-on cover plates) are connected by means of a ball change-over valve.

Standard equipment:

*  connections for venting and draining

*  connection for a clogging indicator

*  pressure equalization line

1.2.    Filter Elements

Max. Allowable D.P.:

BN/HC：20bar；   P/HC: 10bar    W/HC: 20bar      V: 30bar

 2.  Description

Mounting                     as inline oil filter

Temperature range    - 10 ℃ ~ + 100 ℃

Pressure setting of clogging indicator △ Pa= 2bar -0.2bar (others on request)

Seals    NBR (=Perbunan)

3.    Notes

*  Filter housings must be earthed.

*  When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

*  Filters must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.

4.    Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

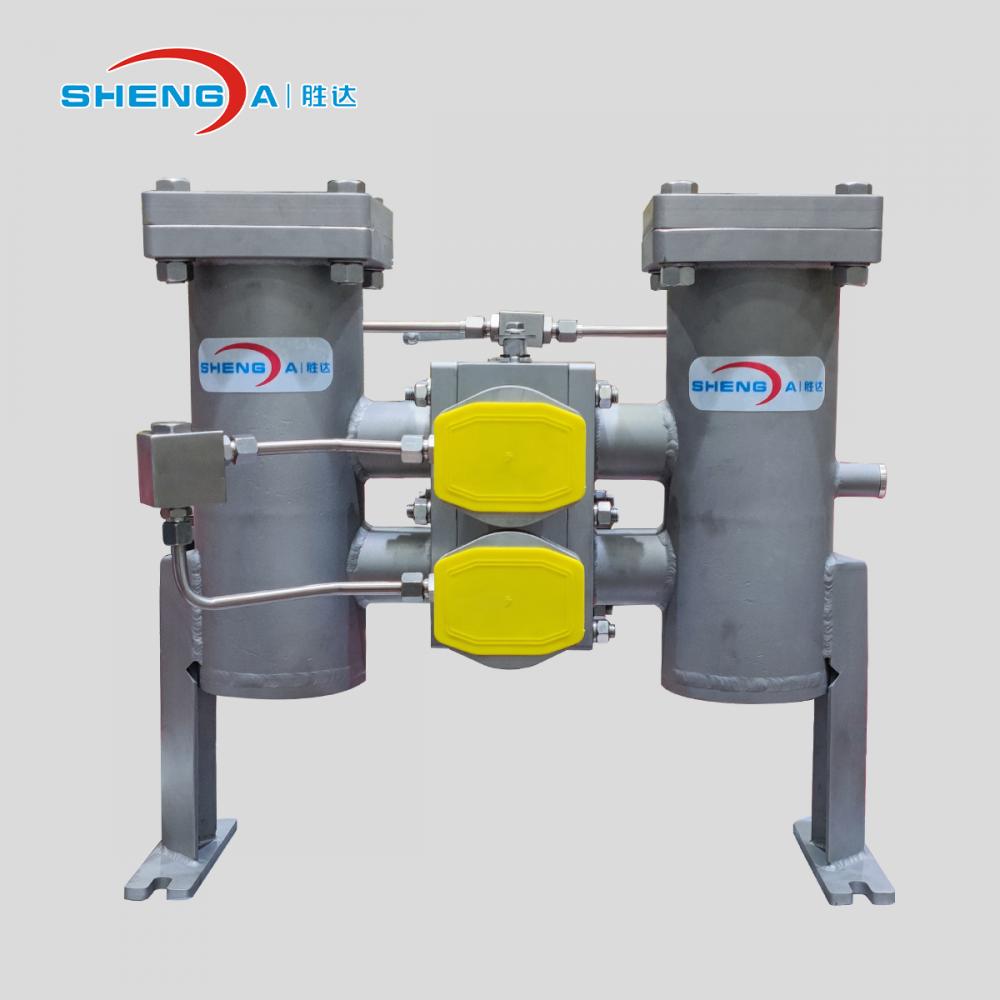

5.   Photos
