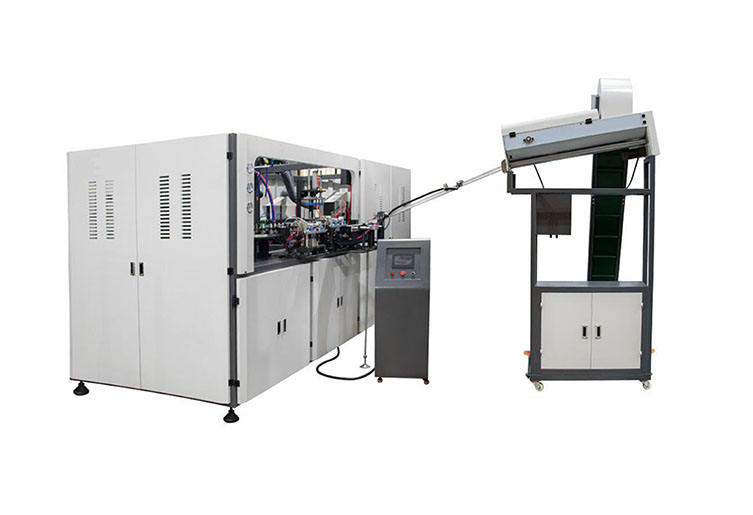

PET Bottle blow molding machine
2 year ago
The fully automatic PET blow molding machine is equipped with state-of-the-art technology for seamless operation and consistent high-quality output. Its advanced features include automatic preform loading, heating and stretching, as well as precise bottle forming and ejection. This means that the entire production process is simplified and optimized, resulting in significant improvements in productivity and cost-effectiveness.
One of the main advantages of fully automatic PET blow molding machines is the ability to produce PET bottles of various sizes and shapes with minimal changeover time. This flexibility makes it an ideal solution for manufacturers requiring versatility in their production processes. Whether it’s small, medium or large bottles, this machine can handle it with ease.
In addition to its impressive performance, the fully automatic PET bottle blowing machine is designed with user-friendly features that make operation and maintenance a breeze. Its intuitive control panel and interface make it easy to program and monitor production processes, while its rugged construction ensures long-term durability and reliability.
Additionally, the machine is designed with energy-efficient components, making it an environmentally friendly choice for sustainable manufacturing practices. By minimizing energy consumption and reducing waste, fully automatic pet blow molding machines can help companies reduce their carbon footprint and operating costs.
The fully automatic PET bottle blowing machine will redefine PET bottle production standards with its cutting-edge technology, versatility, user-friendly design and environmentally friendly features. Whether you are a small producer or a large manufacturing facility, this machine provides the perfect solution to meet market demands while maximizing efficiency and profitability.
In summary, the fully automatic PET blow molding machine is a game changer for the industry, offering unparalleled performance, versatility and sustainability. Its advanced features and user-friendly design make it ideal for businesses looking to increase their pet bottle production capabilities. Embrace the future of manufacturing with a fully automatic PET blow molding machine and experience the difference it can bring to your business.
Advantage
Higher speed
More energy efficient
More stable
Technical parameters
|
|
Model |
Unit |
YW-L2MS |
YW-L3MS |
YW-L4 |
|
Clamping system |
Cavity quantity |
cavities |
2 |
3 |
4 |
|
Clamping force |
KG |
3000 |
3500 |
4000 |
|
|
Mould opening stroke |
mm |
90 |
125 |
90 |
|
|
Stretching rod stroke |
mm |
350 |
350 |
260 |
|
|
Stretching Rod diameter |
mm |
12 |
12 |
10 |
|
|
Bottom Mould Stroke |
mm |
50 |
50 |
50 |
|
|
Pitch distance |
mm |
114.3 |
114.3 |
76.2 |
|
|
Preform holder quantity |
PCS |
58 |
72 |
92 |
|
|
Container Spec |
Max.Container Volume |
ml |
2000 |
2000 |
600 |
|
Max. Container Height |
mm |
350 |
350 |
260 |
|
|
Max. Container Diameter |
mm |
100 |
100 |
70 |
|
|
Max. Preform height |
mm |
100 |
140 |
100 |
|
|
Max. Neck diameter |
mm |
38 |
38 |
38 |
|
|
Productivity for 600ml |
BPH |
3000-3600 |
4000-4200 |
4800-5200 |
|
|
Productivity for 1500ml |
BPH |
2000-2200 |
3400-3600 |
/ |
|
|
Electrical system |
Heating Oven quantity |
Zone |
2 |
4 |
4 |
|
Number of lamp |
PCS |
2*10 |
4*10 |
4*6 |
|
|
Heating power |
KW |
30 |
60 |
36 |
|
|
Installed power |
KW |
36 |
66 |
42 |
|
|
Voltage |
380V,3 phased,50HZ |
||||
|
Actual power |
KW |
15-20 |
30-35 |
20-25 |
|
|
Air system |
Operating pressure |
Mpa |
0.7-0.9 |
0.7-0.9 |
0.7-0.9 |
|
Blowing pressure |
Mpa |
2.5-3.0 |
2.5-3.0 |
2.5-3.0 |
|
|
High pressure air consumption |
L/min |
2.4/30 |
3.6/30 |
3.6/30 |
|
|
Chiller system |
Temperature range |
Degree |
9-13 |
9-13 |
9-13 |
|
Pressure |
Mpa |
0.4 |
0.4 |
0.4 |
|
|
Capacity |
HP |
5 |
5 |
5 |
|
|
Machine |
Machine dimension |
M |
3.2*1.7*2.08 |
3.45*2*2.08 |
3.76*1.7*2.08 |
|
Machine weight |
KG |
3000 |
3500 |
3500 |
|
