NH2P2-Single Point Load Cells

2 year ago

31 0 

Zhejiang Nanhua Electronic Technology Co., Ltd

5 year

Product details

The NH-2P2 is a series of low capacity, aluminium single-point load cells intended fora wide range of industrial applications.

Mainly used in electronic scale, Counting scale,Electronic balance and Industrial weighing system.

Features:

Range: 4-20KG

Suitable for electronic weighing equipment such as electronic scales and packaging machinery

Material: Aluminum alloy material, colorless anodizing treatment;

Appearance: Silicone rubber seal, colorless anodizing treatment of elastomer

Recommended platform size: 200 * 200mm

imension

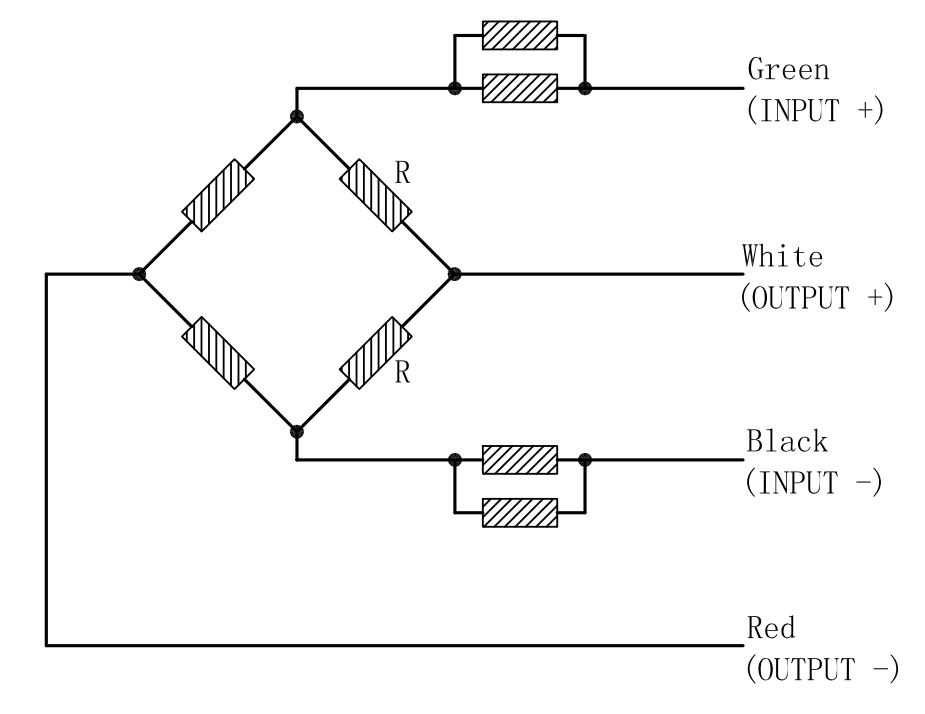

Connection mode

Wps 16

Technical parameter table

PARAMETERS
Sensor Range	KG	4/5/8/10/20	Rated load
Accuracy level		C2&C3
Comprehensive error	FS	±0.03% & ±0.017%	Comprehensive error
sensitivity	mv/v	1.5±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.02	Creep
Zero temperature effect	%FS/10℃	±0.02	Temp.effect on zero
	%FS/10℃	±0.02	Temp.effect on span
Sensitivity temperature influence	FS	±0.02	Non-Linearity
Nonlinear	FS	±0.02	Hysteresis
Hysteresis	FS	±0.02	Repeatability
Input impedance	Ω	350±5	Input resistance
Output impedance	Ω	405±10	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	0.5米Φ4屏蔽线	Cable

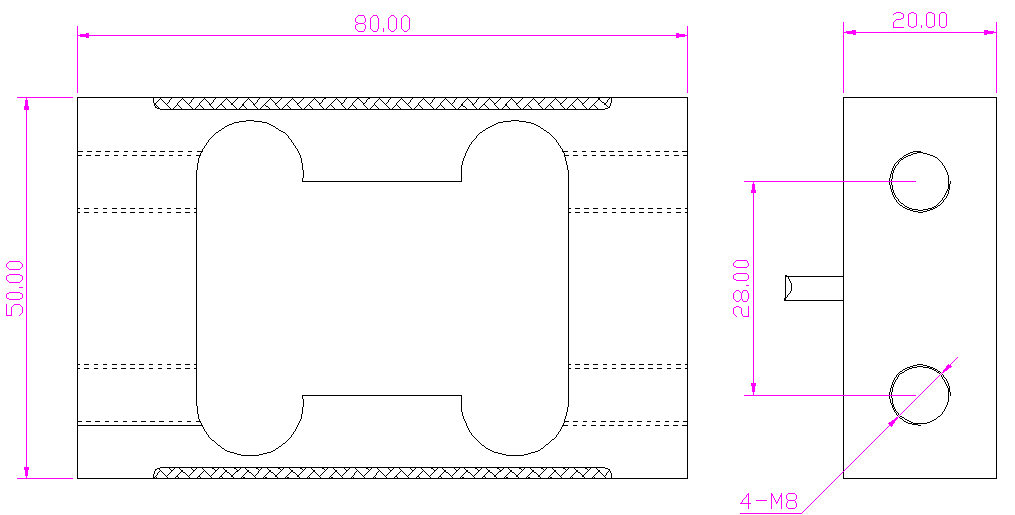

Overall dimensions:

NH2P2.1

1637220790(1)
