YESWITCH 19mm IPX5 S2015E-1-3 Anti-Vandal Lock Key

3 year ago

62 0 

9 year

Product details

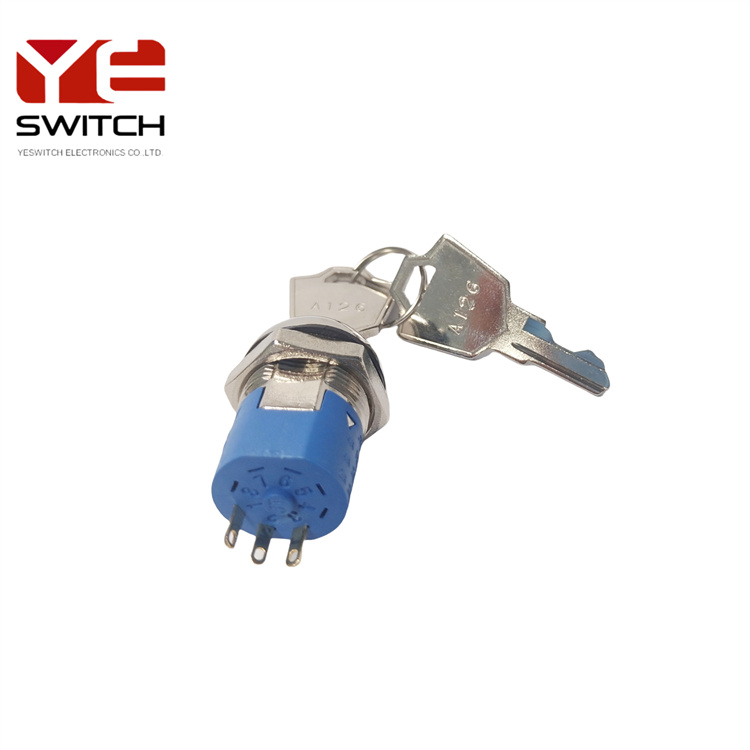

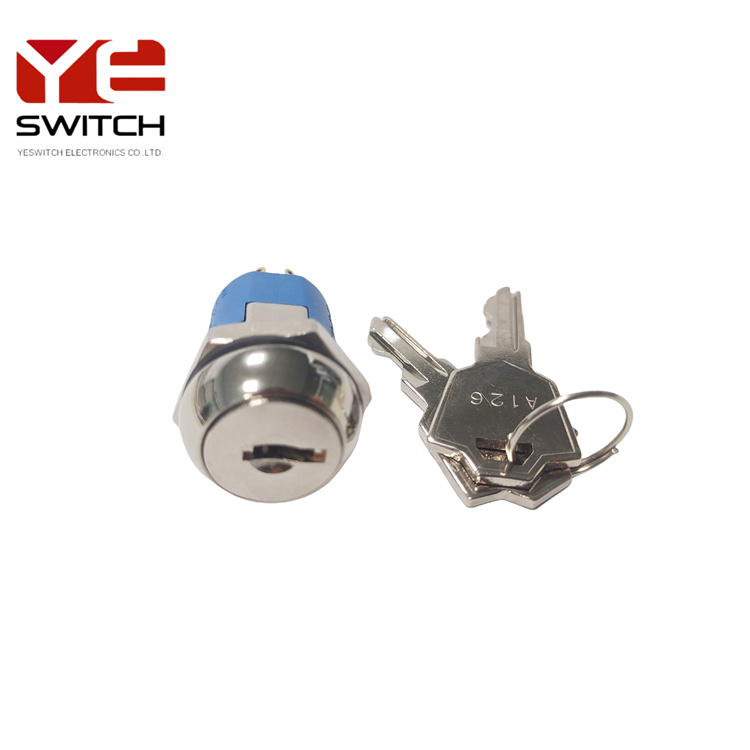

YESWITCH 19mm IPX5 S2015E-1-3 Anti-Vandal Lock Key Switch

YESWITCH S2015E-1-3 19mm key Power lock Switch is made of zinc alloy, which is durable and IPX5 waterproof, even in harsh environments.In addition, it has a very unique design, that is the 3 positions OFF-ON-ON function, which can achieve single and double key pulls, which is very convenient.Most importantly, this key lock switch has a very long service life, reaching more than 6,000 cycles, which can make your vehicle safer and more reliable.And Widely used in buses, cars, motorcycles, ATM and so on.

If you are looking for a practical switch key power lock, then try YESWITCH S2015E-1-3 switch key power lock!

DESCRIPTION

Zinc alloy die cast housing and cylinder.

Bright nickel plated standard.

4 disc tumbler mechanism.

Brass keys, nickel plated.

Various key withdrawals available.

Golden plated contacts and terminals.

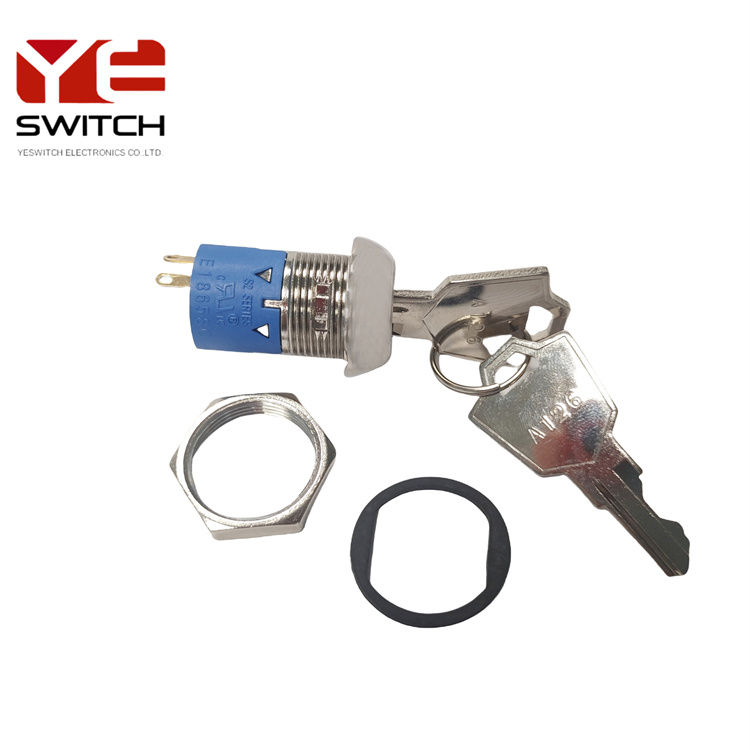

Hex nut or speed clip mounted.

All keyed alike or 20 combinations standard.

SPECIFICATION

Contact Rating: 4A 125VAC, 2A 250VAC,4A 28VDC

Contact Resistance: 50Milli-Ohms Max.

Insulation Resistance: 109 Ohm Min.

Dielectric Strength: 1000 VAC -1 Minute.
