PH Anti-static Rubber Industrial Ribbed Belt
7 month ago

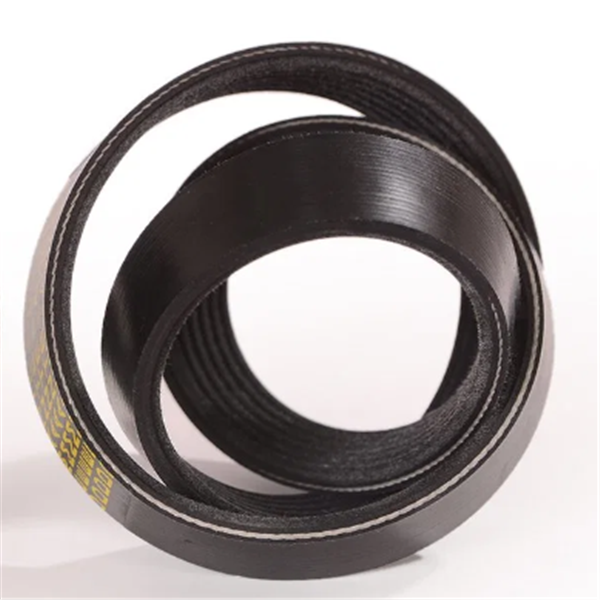

Rubber PH Ribbed Belt Drives
Ribbed Belt, Timing Belt, Transmission Belt and Conveyor Belt all belong to Industrial Belt, which are used widely in mining and construction, power generation units, steel, cement, ceramic, textile, flour mills, oil and petroleum, machine tools and an array of applications.

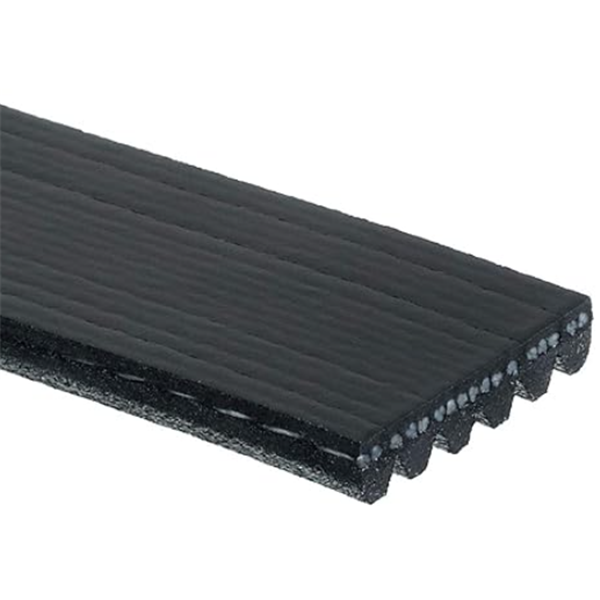

Ribbed Belt also called Multi-Wedge Belt, Multi-groove belt, and Multi Wedge Belt Drive. It is an annular rubber transmission belt with a flat belt as the base body and an inner surface with longitudinal trapezoidal wedges arranged at 40° equal intervals.It is mainly used in the transmission of engines, motors and other power equipment.The main models is: the types currently on the market are: PH, PJ, PK, PL, PM models.
Advantages:
1. The transmission is compact. Under the same transmission power, the space occupied by the transmission device is 25% smaller than that of ordinary V-belts.
2. The back side of the multi-V belt can also be used for transmission, and an automatic tension adjuster can be used to make the transmission safer and more reliable.
Specifications:
|
Type |
Wedge distance(pb) |
Wedge top arc radius( rb), minimum value |
Groove bottom arc radius (rt), maximum value |
Belt Height，approx |
|
PH |
1.6 |
0.3 |
0.15 |
3 |
|
PJ |
2.34 |
0.4 |
0.2 |
4 |
|
PK |
3.56 |
0.5 |
0.25 |
6 |
|
PL |
4.7 |
0.4 |
0.4 |
10 |
|
PM |
9.4 |
0.75 |
0.75 |
12 |
