Reverse Osmosis Membrane
2 year ago

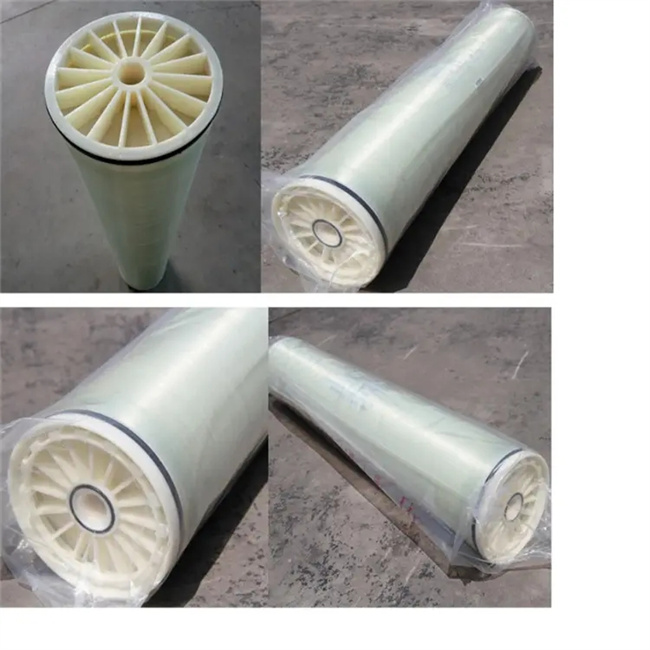

RO Reverse Osmosis Membrane Element
Working Principle
RO Reverse Osmosis Membrane Element work by applying pressure to force water molecules through a semipermeable membrane, thereby separating contaminants from the water. This process effectively removes impurities such as salt, minerals and other dissolved solids, producing pure water. Semipermeable membranes allow only water molecules to pass through while blocking larger molecules and contaminants. RO technology is widely used for water purification in a variety of applications, providing high-quality, clean water for industrial, commercial, and residential use.
Filter Media
Suspensions, colloids, proteins, microorganisms and other molecular substances in solution.
Related Products,Ultra Filtration Equipment,Seawater Desalination Equipment, Reverse osmosis water treatment equipment,Membrane element,Automatic Dosing Device,Demineralized water unit,etc
Related Wastewater Treatment Equipment,Integrated Buried Sewage Treatment Equipment,we also produce Micro Drum Filters,Air Flotation Machine,R
otary Mechanical Grille Cleaning Machine,Screw Press Sludge Dewatering Machine,etc.
Advantage of RO Reverse Osmosis Membrane Element
1. Original import: complete documents, first-class agency.
2. Good stability: high mechanical strength, long service life, and can operate under lower pressure.
3. Filtration precision: A reverse osmosis membrane with a filtration precision of 0.0001 micron can intercept substances larger than 0.0001 micron. It is the most refined membrane separation product, effectively intercepting all dissolved salts and organic matter with a molecular weight greater than 100.
4. The equipment is easy to use: modular design, easy to install, can reduce water and sewage costs, and can be integrated with existing membrane filtration systems or ion exchange systems to achieve up to 80% toilet flushing water recycling.
Technical Parameters of RO Reverse Osmosis Membrane Element
|
Model |
Area m2 |
Capacity GPD m³/d |
Desalination Rate % |
|
HT22-8040 |
37.2 |
10500(39.7) |
99.7 |
|
HT22-8040/31 |
37.2 |
10500(39.7) |
99.7 |
|
HT22-8040-440 |
40.9 |
11500(43.5) |
99.7 |
|
HT22-8040PRO |
37.2 |
11000(41.6) |
99.7 |
|
HT21-4040 |
9.3 |
2800(10.6) |
99.6 |
Application of RO Reverse Osmosis Membrane Element
Mainly used in reverse osmosis pretreatment, drinking water treatment, reclaimed water reuse and other fields.
