Serrated Hex Flange Bolt

12 month ago

13 0 

2 year

Product details

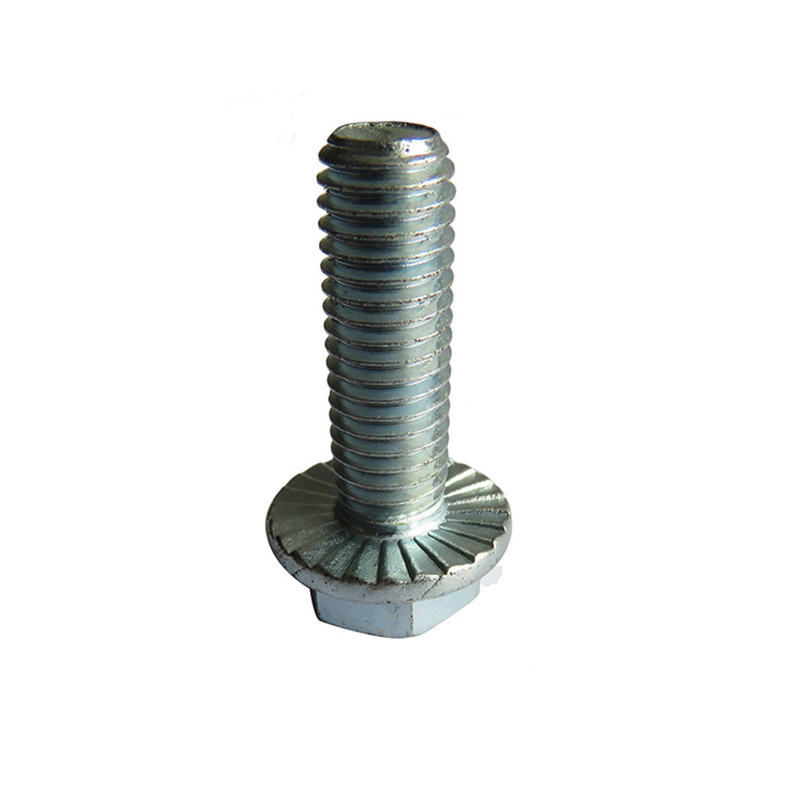

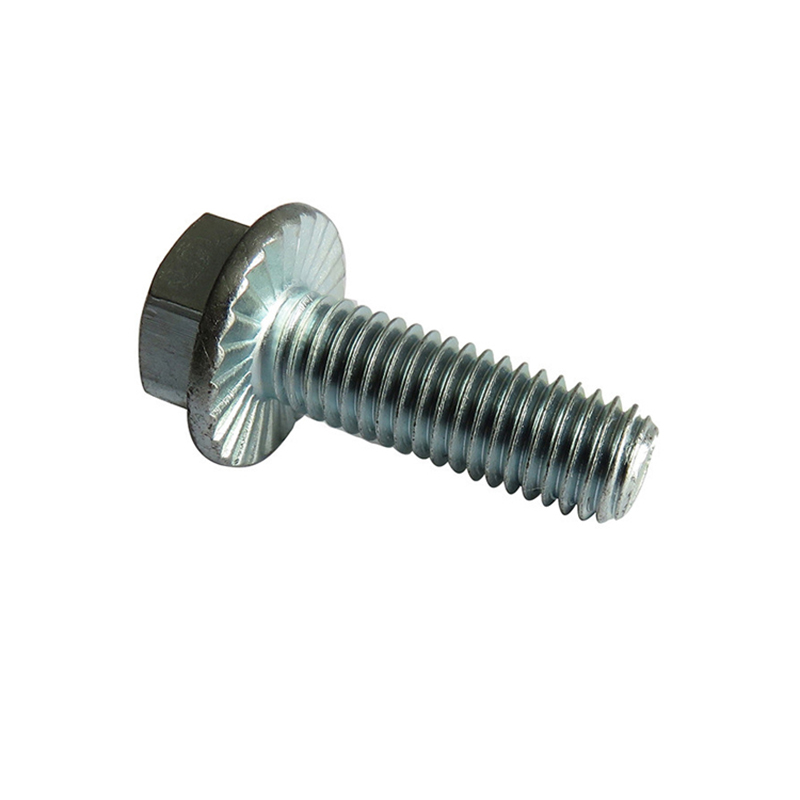

Carbon Steel Zinc Plated Serrated Hex Flange Bolt

Size
M5-M20 / according to your requirement
Material
Carbon Steel,Stainless Steel,Titanium,Aluminum,Brass, Nylon,Plastic,etc
Surface Treatment
Plain, Black, Zinc plated / according to your requirement
Standard
DIN GB ISO JIS BA ANSI
Grade
A2-70, A2-80, A4-80, 4.8, 6.8, 8.8, 10.9, 12.9
Quality Policy
All the parts 100% inspection from OQC before shipping.
Package
Bulk in PE bag or Small boxes.then in carton, pallet
Used
Building industry machinery electronic,etc
Non-standards
OEM is available, according to drawing or samples

d	M5	M6	M8	M10	M12	M14	M16	M20
P	0.8	1	1.25	1.5	1.75	2	2	2.5
b	16	18	22	26	30	34	38	46
K max	5.4	6.6	8.1	9.2	11.5	12.8	14.4	17.1
s	8	10	13	15	16	18	21	27
dc max	11.8	14.2	18	22.3	26.6	30.5	35	43
L	10-200
