ISO7380-2 Socket Button Head Screws with Collar

12 month ago

14 0 

2 year

Product details

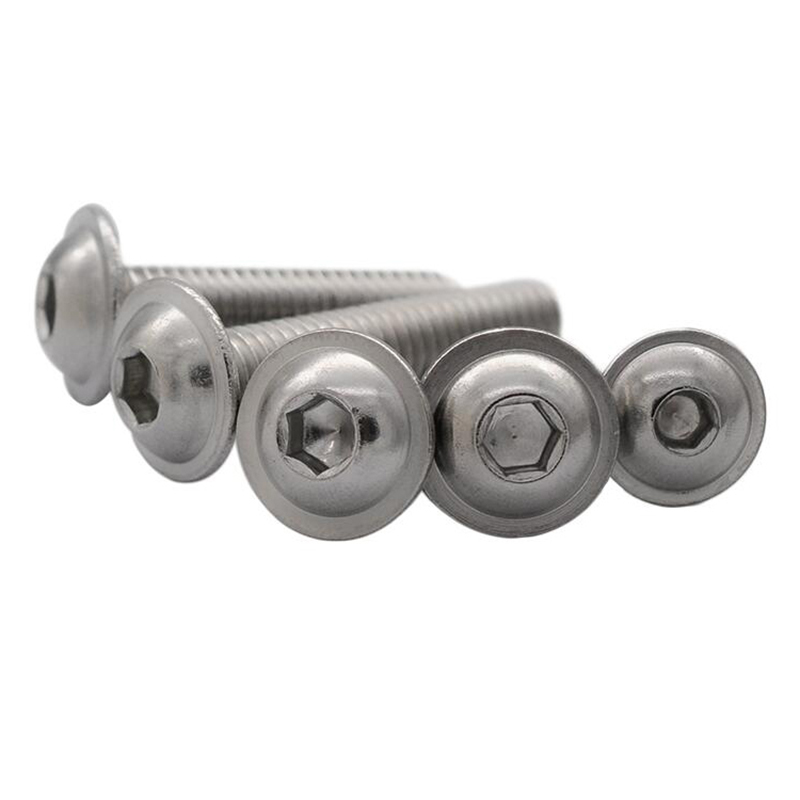

Stainless Steel ISO7380-2 Hexagon Socket Button Head Screws with Collar

Material: Alloy Steel,Brass,Carbon Steel,Stainless Steel
Finish: Anodizing, Black Oxide, Bronze Coated, Chrome Plated, Dacromet Coated, Hot Dipped Galvanizing, Nickel Plated, Passivated, Phosphate, Plain, Zinc Plated, etc.
Customized: Available
Standard: ISO 7380-2
Thread direction: Right
Thread:Coarse Thread,Fine Thread
Nylon Glue Paint：Available on request
The collar distributes pressure across a wide surface, eliminating the need for a separate washer.

d	p	b	h		dc		ds		dk		k		s			t
d	p	b	max	min	max	min	max	min	max	min	max	min	nom	max	min	min
M3	0.5	18	0.7	0.55	6.9	6.32	3	2.86	5.7	5.4	1.65	1.4	2	2.08	2.02	1.04
M4	0.7	20	0.8	0.65	9.4	8.82	4	3.82	7.6	7.24	2.2	1.95	2.5	2.58	2.52	1.3
M5	0.8	22	1	0.8	11.8	11.1	5	4.82	9.5	9.14	2.75	2.5	3	3.08	3.02	1.56
M6	1	24	1.2	1	13.6	12.9	6	5.82	10.5	10.07	3.3	3	4	4.095	4.02	2.08
M8	1.25	28	1.5	1.25	17.8	17.1	8	7.78	14	13.57	4.4	4.1	5	5.14	5.02	2.6
M10	1.5	32	2	1.7	21.9	21.06	10	9.78	17.5	17.07	5.5	5.2	6	6.14	6.02	3.12
M12	1.75	36	2.4	2.1	26	25.16	12	11.73	21	20.48	6.6	6.24	8	8.175	8.025	4.16
M16	2	44	2.8	2.5	34	33	16	15.73	28	27.48	8.8	8.44	10	10.175	10.025	5.2

Product Name	Stainless Steel ISO 7380-2 Hexagon Socket Button Head Screws With Collar
Surface Finishing	Plain
Material	Stainless steel 304/316
Head Style	Flange Washer Hexagon Socket Button Head
Standard	DIN, GB, ISO, JIS, BA, ANSI, Non-standard
Length	6mm,8mm, 10mm, 12mm, 14mm,16mm, 20mm, 25mm, 30mm etc
Thread Size	M3 M4 M5 M6 M8
Grade Available	A2-70/A4-70
OEM/ODM	YES
Application Industry	Electronics, electrical appliances, electromechanical devices, small appliances, drones, instruments, high-speed rail, motor, furniture, medical, sports equipment and other industries etc.
Material Available	Stainless Steel, Brass, Carbon Steel, Aluminum OEM according to your request
Delivery	5-20days
Packing	PE/PP Bag + Carton, or as per client's requirement
