Application

The ZFJ series pulverizer machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness ,softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.

Working method

The grinding machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor. discharging gate, fans, collection box, dust collection box and etc, Any raw material, being fed into the grind chamber through the upper feeder, is pulverized by high speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The milling machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

Advantages

1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.

2 Automatic operating :just press button.Easy to clean,usually use water cooling and air compressor is ok .

3 Final powder size range from 60mesh -250mesh,just adjust the gap between knives.

4 Machine has water cooling system to reduce working temperature,so can working long hours.

TECHNICAL DATA

Model	200	300	400
Capacity（kg/h）	10-150	60-300	100-500
Size of input granules（mm）	≤5	≤12	≤15
Fineness of products（mesh）	60-250
Grinding power（kw）	5.5	7.5	11
Dust absorption power（kw）	1.1	2.2	3
Overall size（mm）（LWH）	1000×800×1600	1200×850×1780	1500×900×1950
Weight（kg）	320	650	800

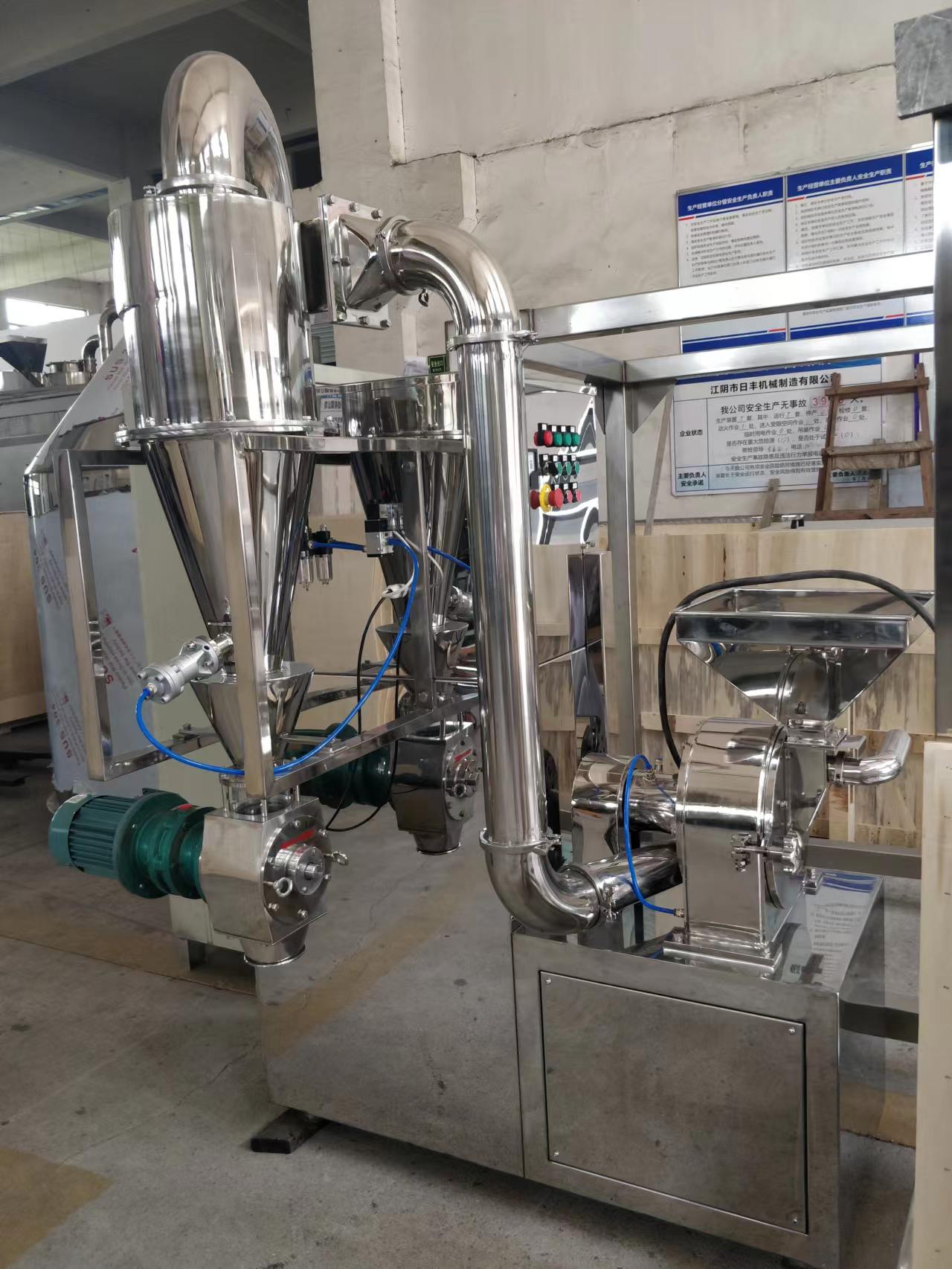

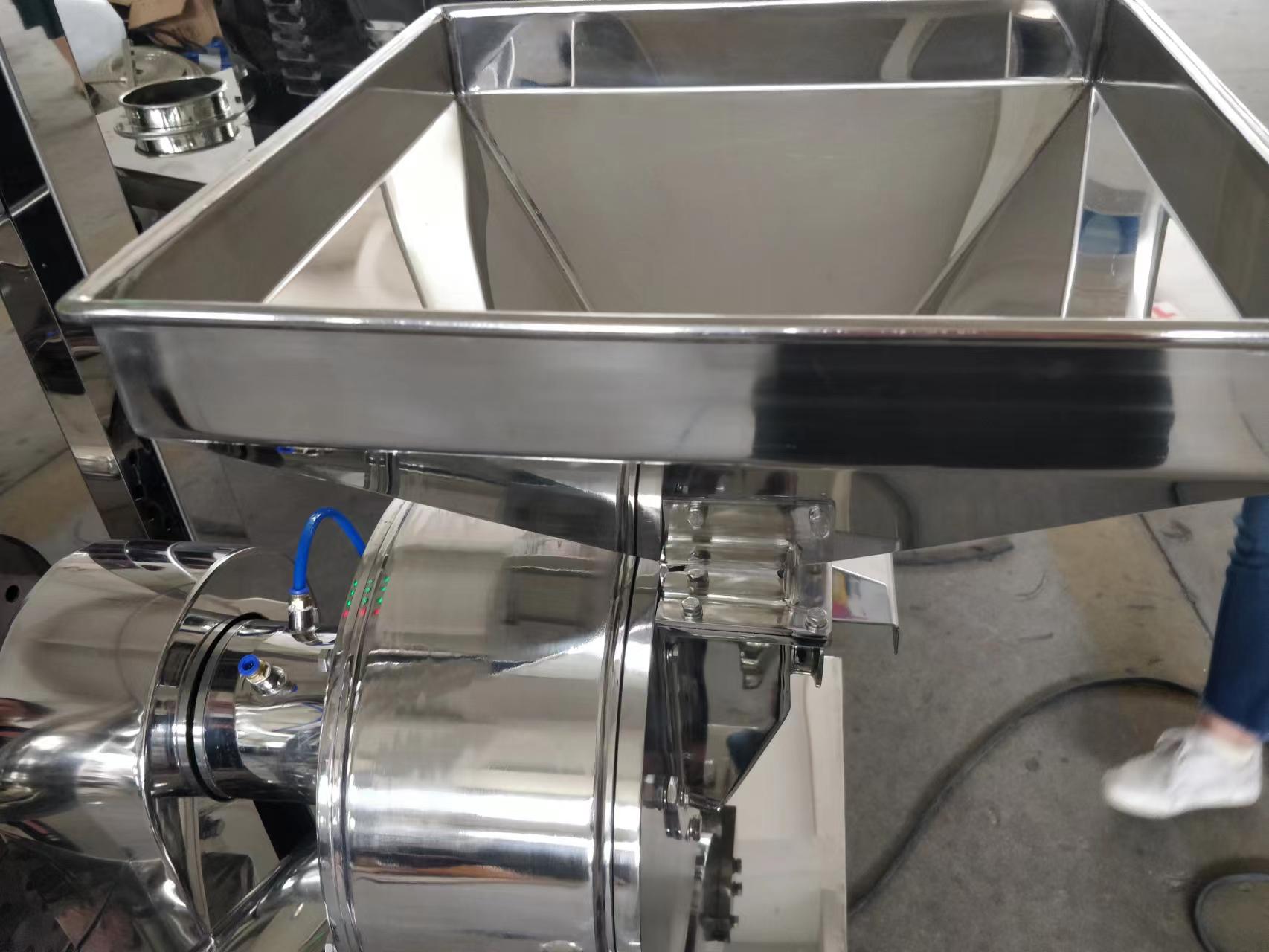

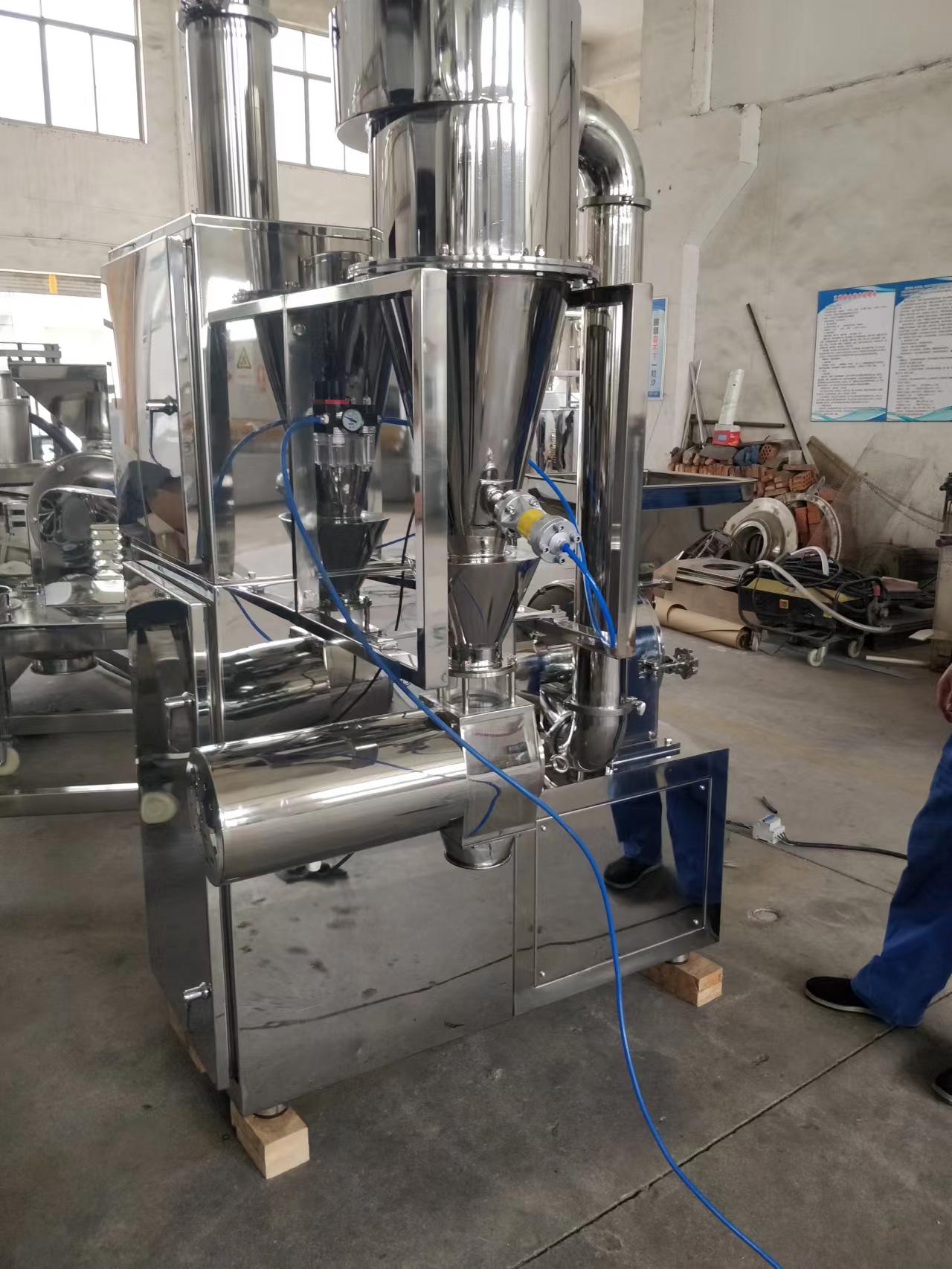

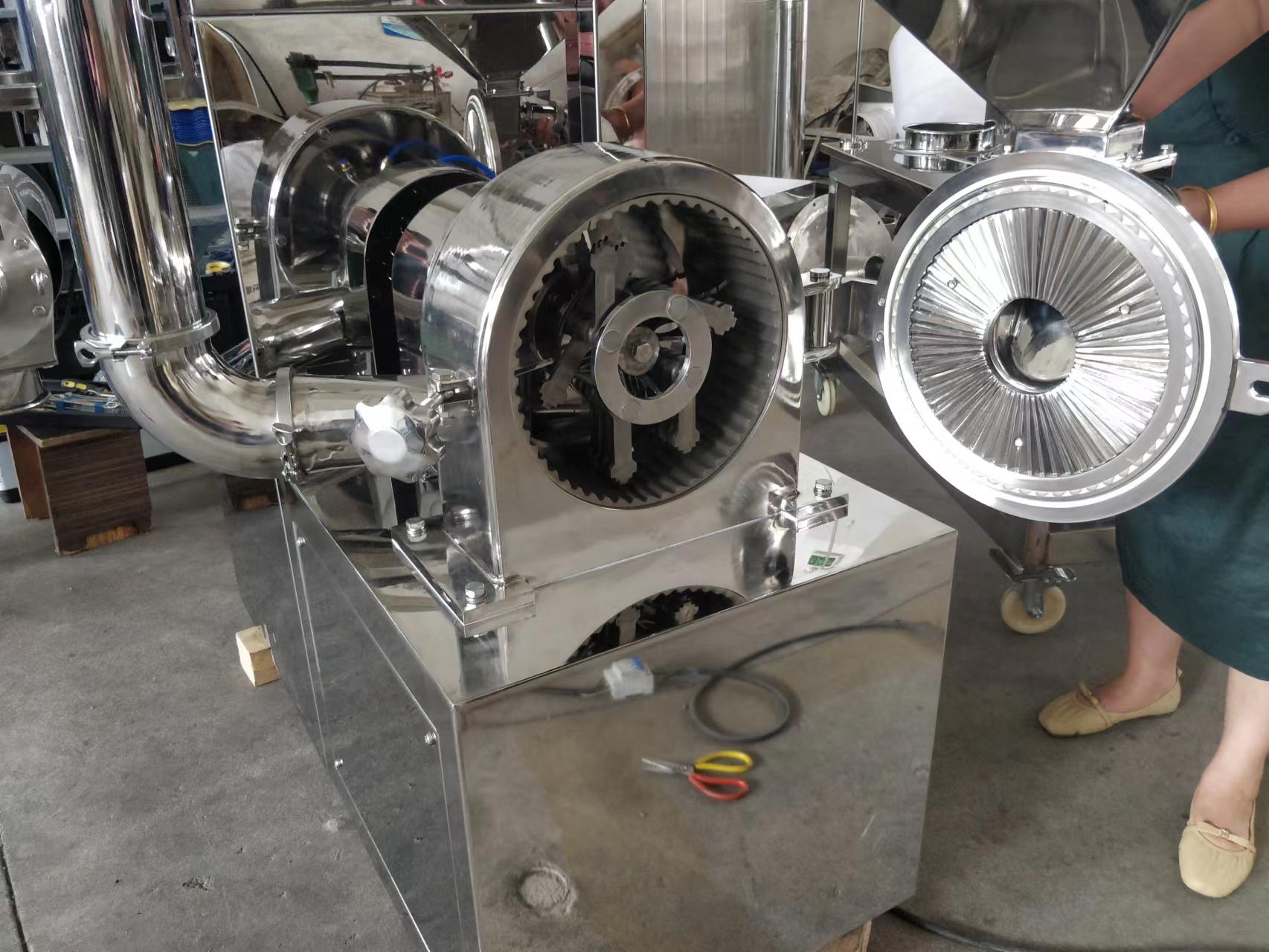

Product Display
