Phillips Pan Head Self Tapping Screw

11 month ago

11 0 

2 year

Product details

Stainless Steel Phillips Pan Head Self Tapping Screw

The cross head screw adopts a cross shaped thread design, which allows the screw to provide better grip during fixation, increasing the stability and reliability of the connection.

The screw head is designed with a round head, which allows the screw to provide a wider contact area during fixation, thereby evenly distributing the force at the connection points and reducing pressure concentration on the material.

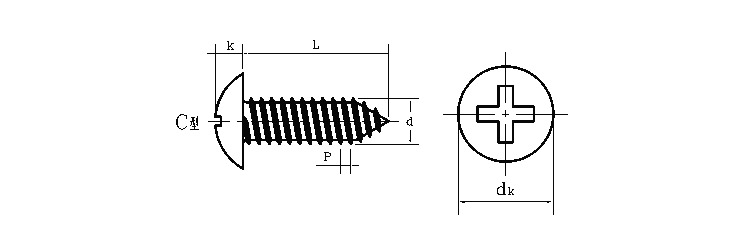

d	P	dk		k		Slot number
d	P	max	min	max	min	Slot number
ST2.2	0.8	4	3.7	1.6	1.4	0#
ST2.9	1.1	5.6	5.3	2.4	2.15	1#
ST3.5	1.3	7	6.64	2.6	2.35	2#
ST4.2	1.4	8	7.64	3.1	2.8
ST4.8	1.6	9.5	9.14	3.7	3.4
ST5.5	1.8	11	10.57	4	3.7	3#
ST6.3	1.8	12	11.57	4.6	4.3	3#
