Electric excavator KS12-9
2 year ago
Product description
Rhinoceros New Energy machine Recommend by Jessie Du as below:
2. 300kg Electric mini dumper
3. 1.2 ton electric mini excavator
Please kindly contact me to get more if you're interested in the new energy machine.
Products Description

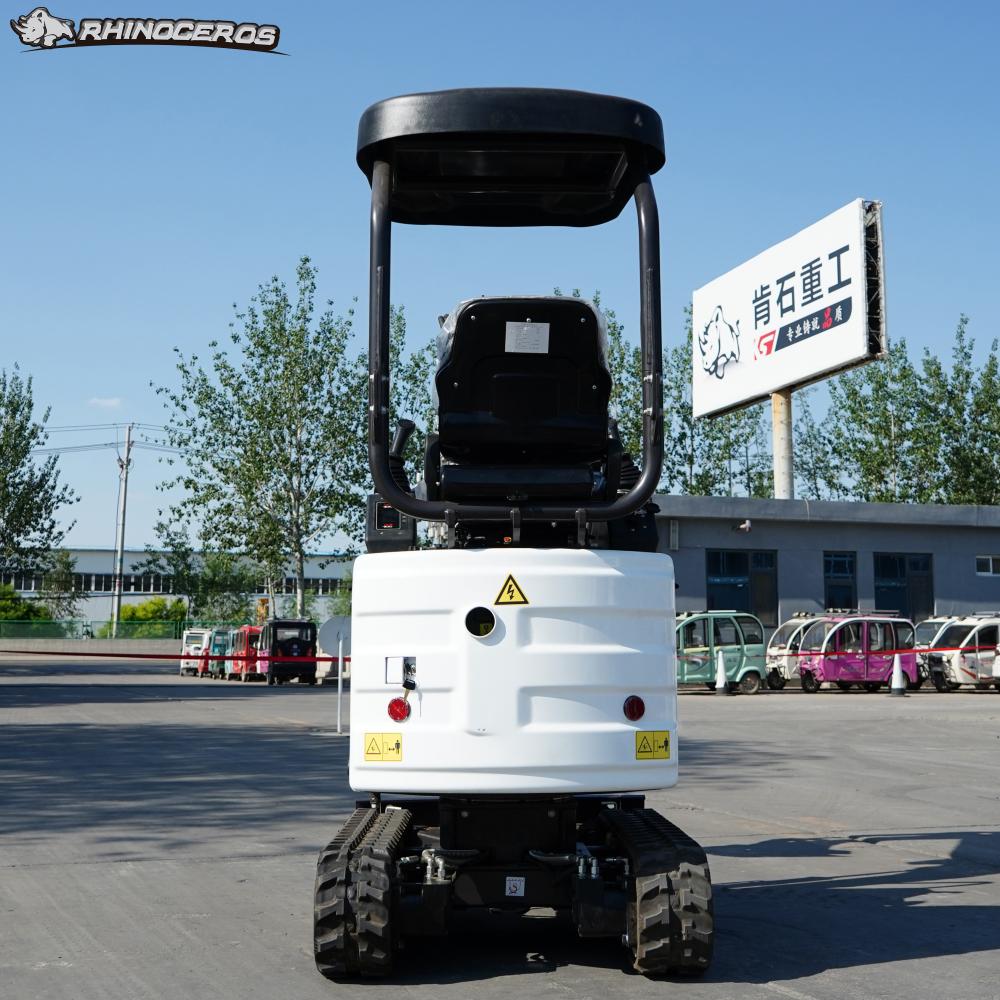

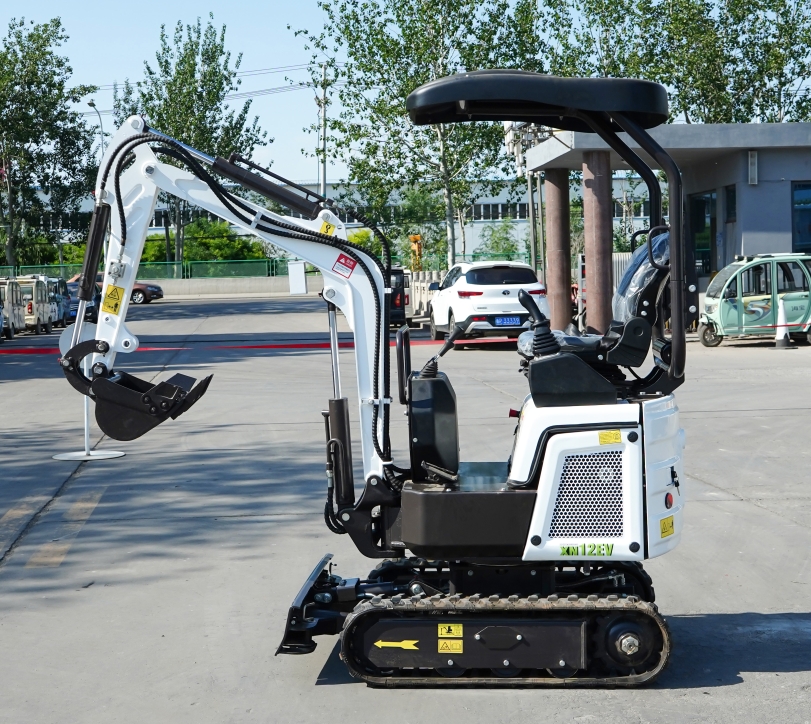

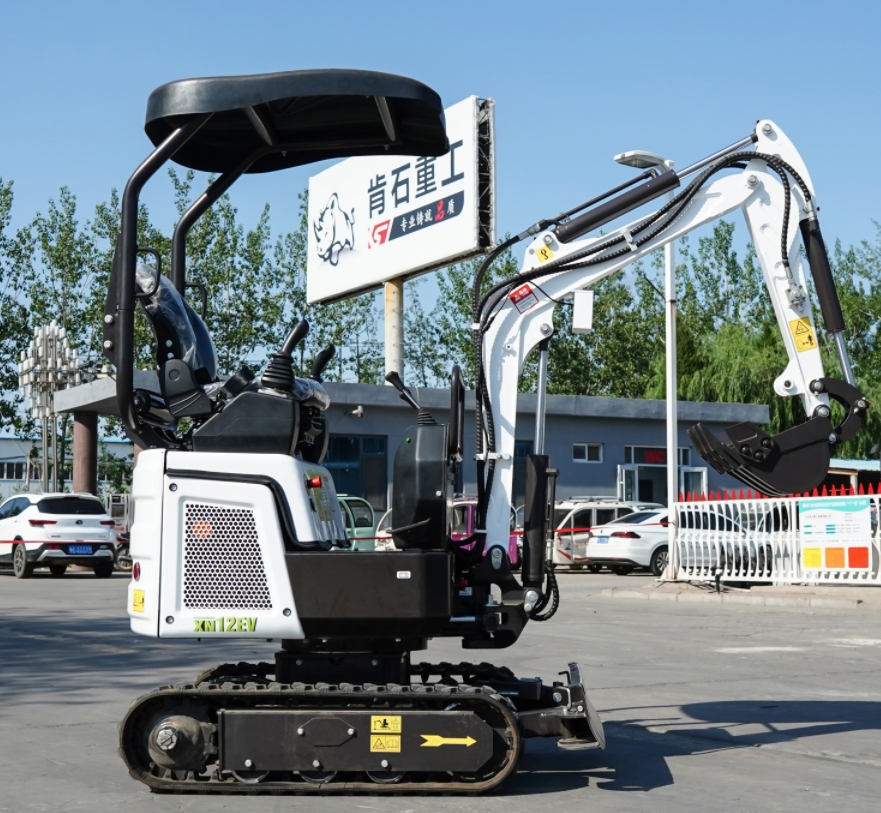

The mini electric excavator KS12-9EV main information:
2. Ferrous lithium phosphate
3. Max digging depth :USD 1580mm; Max. digging height:2620mm
4. Working time : 4-6 hours
5. Charging time : 2-6 hours
Advantages of electric excavators:
(2) "Safe and reliable" The three-electrical technology of the whole machine adopts new energy vehicle technology, with "insulation detection", "voltage detection", "temperature detection", "pre-charge protection", "charging safety detection", "high voltage interlock", "fault intelligent diagnosis" ” and other automotive-grade protective measures. Protect the property and personal safety of customers.
(3) "Quiet and environmentally friendly" The use of an all-electric power system not only achieves "0" emissions, but also bids farewell to the noise trouble of fuel engines, perfectly matching low-noise trial scenarios such as residential operations and urban operations.
(4) Fast charging: high-power charger is used, and the charging gun is easy to use and unplug.
(5) Long battery life: The large-capacity lithium-ion battery is being developed, and the battery life is 4-6 hours after charging for 2.5 hours in pure battery working mode.
(6) Ultra-low cost of use: The annual oil and electricity price difference and maintenance cost can save 50% of the user's use.
With its excellent performance, forward-developed core configuration and comfortable driving experience, electric excavators will surely create greater value for customers by virtue of their excellent performance.
| SPECIFICATION | METRIC | |
| Operation weight | 1240kg | |
| Standard bucket capacity | 0.02cbm | |
| Working device form | Backhoe | |
| Electric motor | Model No. | TZXQD112-6-1.0T-9 |
| Rated power | 4kw | |
| Max. torque | 38N.m | |
| Rated speed | 2100rpm | |
| Speed and digging force | Swing speed | 10rpm |
| Max. grade ability | 30% | |
| Max. traveling speed | 1.5km/h | |
| Track | Ground pressure | 30.11Kpa |
| Track material | rubber | |
| Tensioner type | Screw | |
| Battery | Battery capacity | 16.56kwh |
| Hydraulic and liquid capacity | Pump type | Gear pump |
| Pressure | 16Mpa | |
| Flow rate | 16L/min | |
| Hydraulic oil tank capacity | 13L | |
| MAIN DIMENSION | METRIC | |
| A Max. digging radius on ground | 3038mm | |
| B Max. digging radius | 3136mm | |
| C Max. digging depth | 1522mm | |
| D Max. digging height | 2650mm | |
| E Max. dumping height | 1880mm | |
| F Max. vertical digging depth | 1328mm | |
| G Min. swing radius | 1510mm | |
| H Max. blade lifting height | 140mm | |
| I Max. blade lifting depth | 230mm | |
| MAIN DIMENSION | ||
| a | Wheelbase | 910 |
| b | Track length | 1235 |
| c | Upper chassis ground clearance | 458 |
| d | Tail swing radius | 695 |
| e | Chassis width | 800/950 |
| f | Track width | 180 |
| g | Track height | 320 |
| h | Transport length | 2170/2820 |
| i | Seat to ground height | 1589 |
| j | Overall height | 2295 |
| k | Boom swing-left | 49° |
| I | Boom swing-right | 56° |
| m | chassis Length | 1078 |
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q: Can you provide customization options for mini dumpers?
A: Yes, we can offer customization options for mini dumpers based on specific requirements. This includes modifications in engine power, load capacity, dumping mechanisms, and additional features such as cabin enclosures or specialized attachments.
Q: What is your minimum order quantity (MOQ)?
A: Our MOQ is one unit.
Q: What is the lead time for orders?
A: Normally 7-10 days or 15-25 days upon receiving the advance payment.
Q: What are your accepted payment terms?
A: We typically accept payment by bank transfer (wire transfer) or letter of credit (L/C).
Q: Do you provide product warranties?
A: Yes, normally 1 year OR 2000 hours.

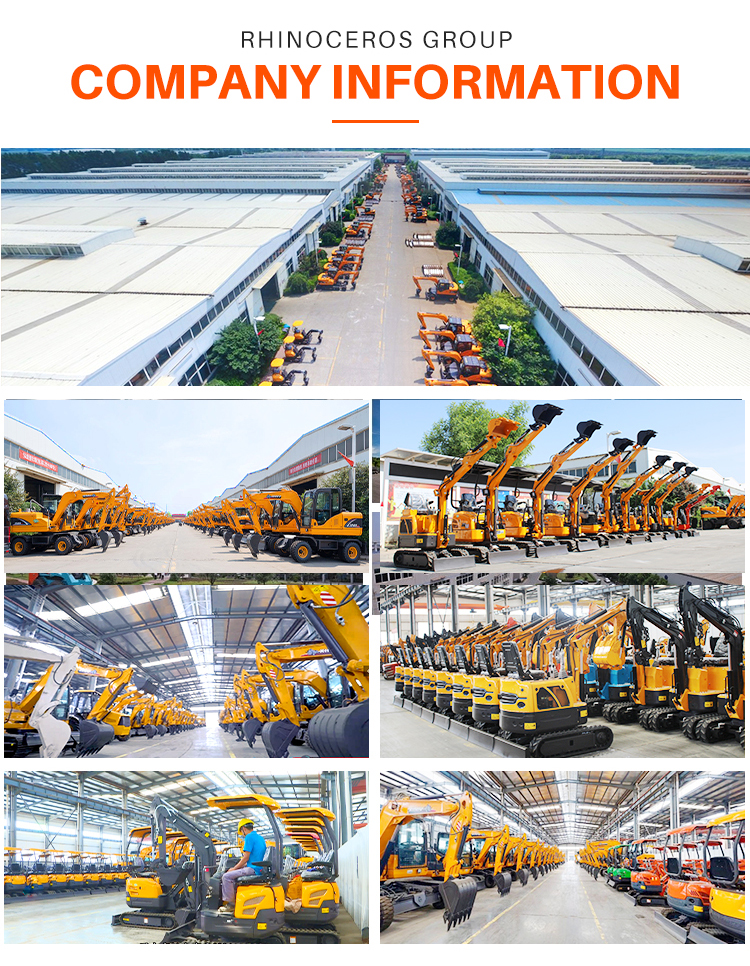

Company Overview:
Shandong Ken Stone specializes in manufacturing construction machinery, including wheel excavators, crawler excavators, mini excavators, and wheel crawler excavators weighing less than 20 tons.
The company operates on a large area of over 17,000 square meters and has a workforce of over 600 employees, which includes an impressive R&D team of more than 40 members. Ken Stone has achieved significant growth in the international market, exporting mini excavators to over 100 countries and regions. To ensure excellent customer service, we have established multiple agent offices and service points across Europe, Oceania, North America, South America, and other regions.
- Certified Quality Control Experts ensuring compliance with CE standards.
- Extensive customization options for both OEM and ODM needs.
- Robust production capacity to meet your specific requirements.
- Trustworthy international service guaranteeing customer satisfaction.
