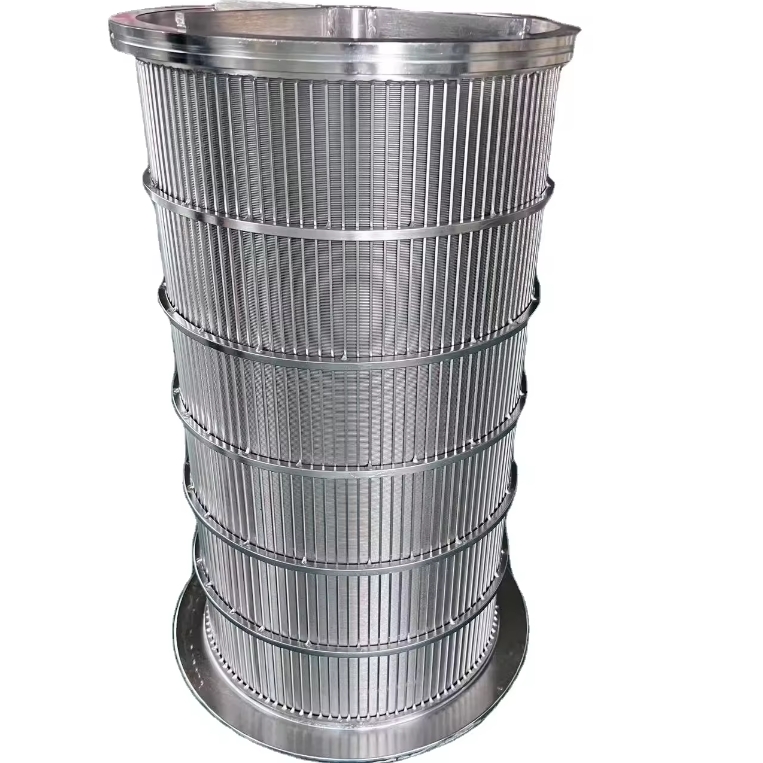

Wedge mesh T-wire winding sieve barrel

Product Introduction:

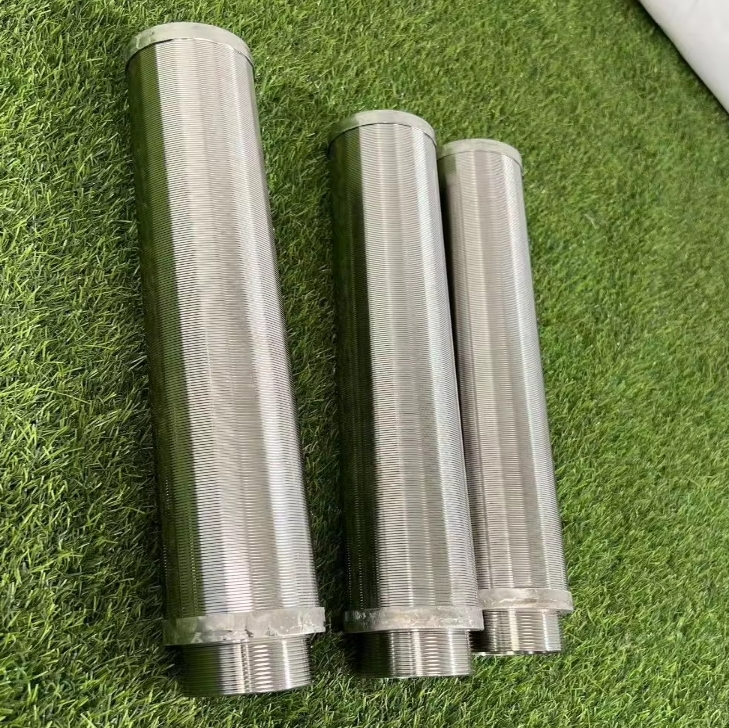

Stainless steel wire gap filter element is also called stainless steel wedge filter element or wire tube filter element, which is composed of "V" shaped stainless steel wire or round wire and "T" type stainless steel support bar welding. The main body of the wedge mesh filter element adopts V-shaped wire in the continuous welding of automatic programmed precision machinery, and then installs various types of interfaces according to customer requirements. The wedge mesh filter element has various forms, and can be made into wedge mesh seam screen plate, screen sheet, screen tube, etc. And can be customized according to the needs of the industry gap size, wire diameter thickness and other relevant data. The wedge mesh filter core produced by our company has uniform gap, smooth and smooth appearance, high filtration accuracy, strong and durable, where the products purchased in our company provide maintenance services, and provide free solutions for the problems used by the majority of users.

The smooth surface of the stainless steel wire gap filter element is the filter surface, and the gap is a strip shape, which belongs to the surface filter form. The filtered liquid passes through the pores between the metal wires, enters the interior, and then flows out from the upper pore. This stainless steel wire gap filter element has simple structure, large circulation, high strength, smooth surface, not easy to hang, easy to high-pressure backwash, and can be reused.



Stainless steel wire gap filter element classification:



Welded mineral screen, screen tube, screen plate, screen basket, vibrating screen, slit screen, cylinder screen, special filter element.



The screen can be divided into approximate round and pure round according to the shape, and the approximate circle is polygon, which does not affect the filtration. Pure circle is the standard circle, the production accuracy is higher, and it is commonly used to replace foreign products and for occasions requiring high precision.



Stainless steel wire gap filter element raw materials: SUS304, SUS304L, SUS316, SUS316L, etc.



Parameters: Filter gap 0.02mm-60mm, diameter 25-1000mm, length 6000mm or less.



Interface: threaded interface, flange interface (other interfaces can be customized)



At present, we produce stainless steel wire clearance filter (also known as wire wound filter, wedge mesh filter) wire clearance accuracy can reach 0.02mm, small error, uniform line clearance, high welding strength. The filtration accuracy of the stainless steel wire clearance filter element can be customized according to the requirements of customers.



Line gap filter ordering instructions: please be sure to explain the flow direction, material, interface form, can be customized to the drawing sample.



Stainless steel wire gap filter element advantages: high filtration accuracy, strong structure, high temperature resistance, corrosion resistance, good mechanical properties, simple structure, large flow permeability.



Stainless steel wire gap filter element application field:



Widely used in chemical, petrochemical, beverage, pharmaceutical, biotechnology, water treatment, solid-liquid separation and so on.
