DUC2-NH4 Online Digital NH4-N Ammonium Controller
2 year ago
Product details
Ammonia nitrogen refers to the total nitrogen content of ammonia and amino compounds in water. In the process of sewage treatment, ammonia nitrogen is a very important indicator, because it can reflect the degree of decomposition of organic matter and the content of nitrogen in sewage. Therefore, sewage plants need to monitor the value of ammonia nitrogen to ensure the quality and effect of sewage treatment. In the sewage treatment process, the monitoring of ammonia nitrogen is mainly concentrated in the water inlet, water outlet and various links in the treatment process. At the water inlet, monitoring the value of ammonia nitrogen can help the sewage plant understand the content and pollution degree of pollutants in the raw water, so as to carry out targeted treatment. At the water outlet, monitoring the value of ammonia nitrogen can help the sewage plant understand the treatment effect and ensure that the effluent meets national and local discharge standards. During the treatment process, monitoring the value of ammonia nitrogen can help the sewage plant understand the effect of each link in the treatment process and adjust the treatment plan in time. The DUC2-NH online ammonia controller developed and produced by daruifuno has 2 SPST relays, which can be connected to the control equipment to adjust the ammonia nitrogen value in the water. The NH351 online ammonia sensor used in conjunction with the controller adopts the ion selection method and the measuring range is 0~1000mg/L.
Features of Ammonia Controller
● Compatible with all DRFN digital ammonia sensors;
● Time and historical data recording function;

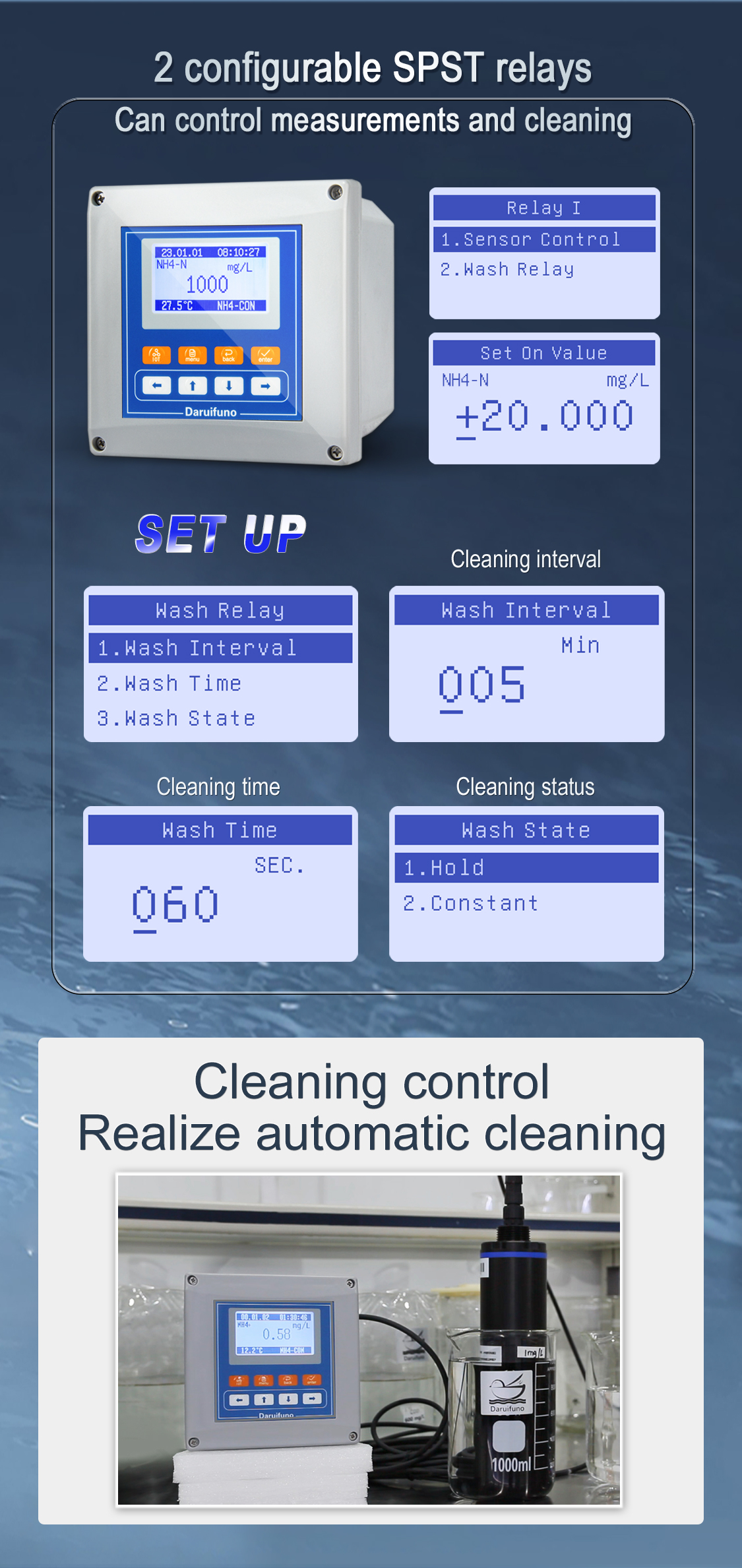

● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof protection grade;
● The ammonia controller supports a variety of installation methods.
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof protection grade;
● The ammonia controller supports a variety of installation methods.
Specification of Ammonia Controller
| Product Name | Ammonia analyzer |
| Product Model | DUC2-NH |
| Brand Name | Daruifuno |
| Display Rang | 0-1000mg/L |
| Resolution | 0.01mg/L |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA active current loop outputs, max load 1000Ω |
| Communication Method | RS485 interface; MODBUS RTU |
| Display Screen | 128*64 LCD, adjustable backlight mode, adjustable display rate |
| Configuration Information | Power off protection, parameters are retained indefinitely |
| Time/Data Record | Record 10000 historical data |
| Maintenance Records | Last 100 |
| Operating Environment | 0～60℃，RH<95% ( no condensation) |
| Storage Environment | -20～70℃, RH<55% ( no condensation, precision instruments) |
| Shell Material | Enhanced ABS |
| Protection Grade | IP66 |
| Dimension | 144*144*120mm |
| Mounting Method | Wall mounting, pipe clamping, panel (hole size 138*138 mm) |
| Electrical Interface | The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm |
| Power Supply | 100~240V AC 50/60Hz or 18~36VDC |
| Power Consumption | 7W |
| Weight | 800g |
