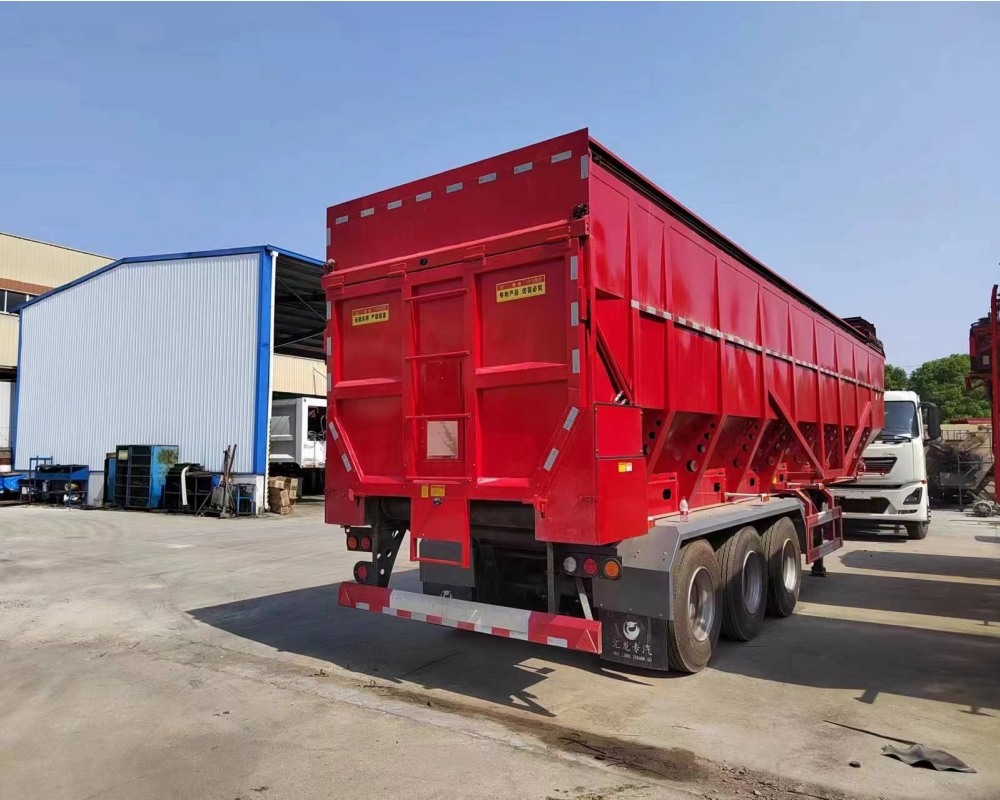

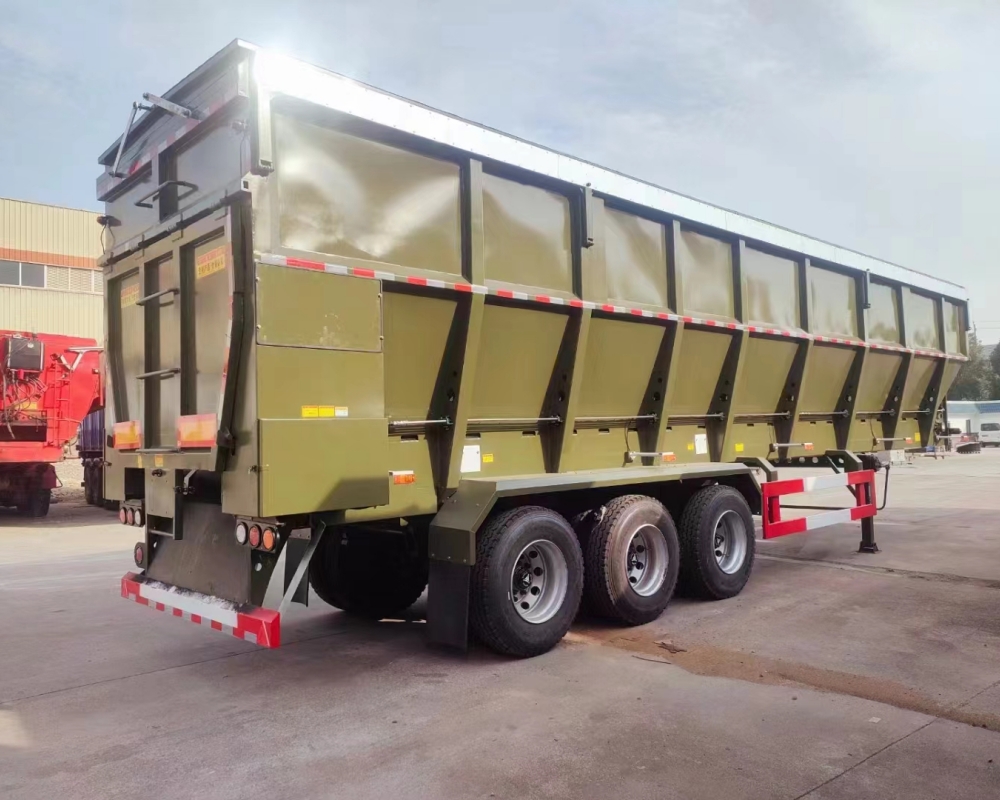

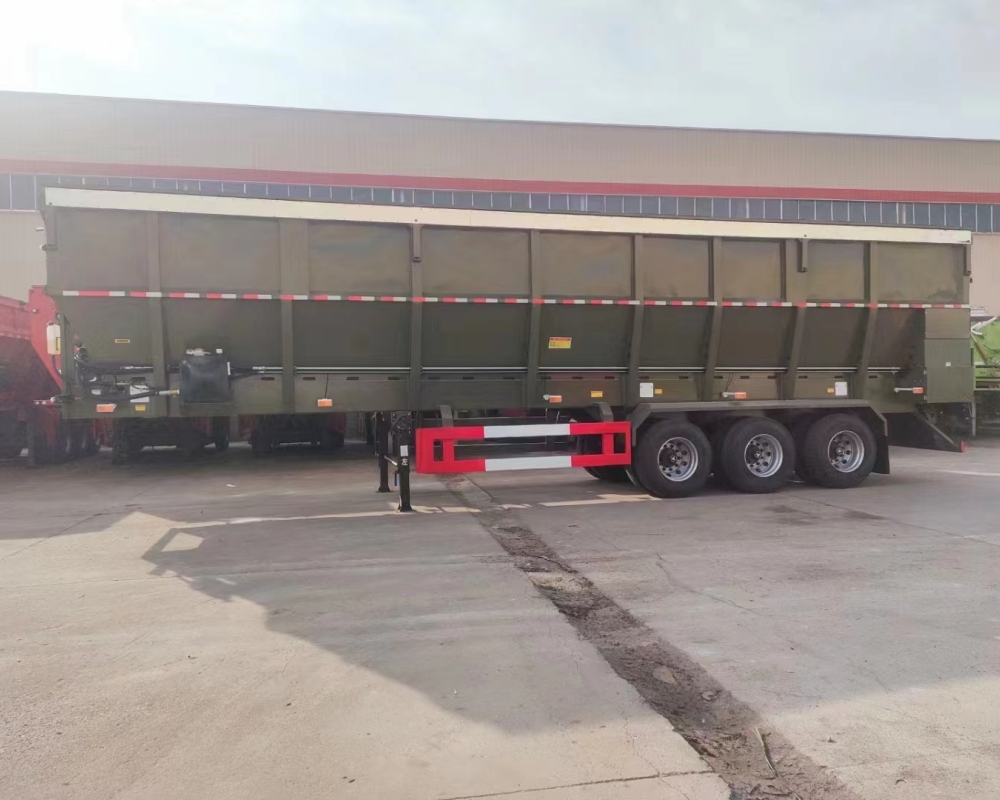

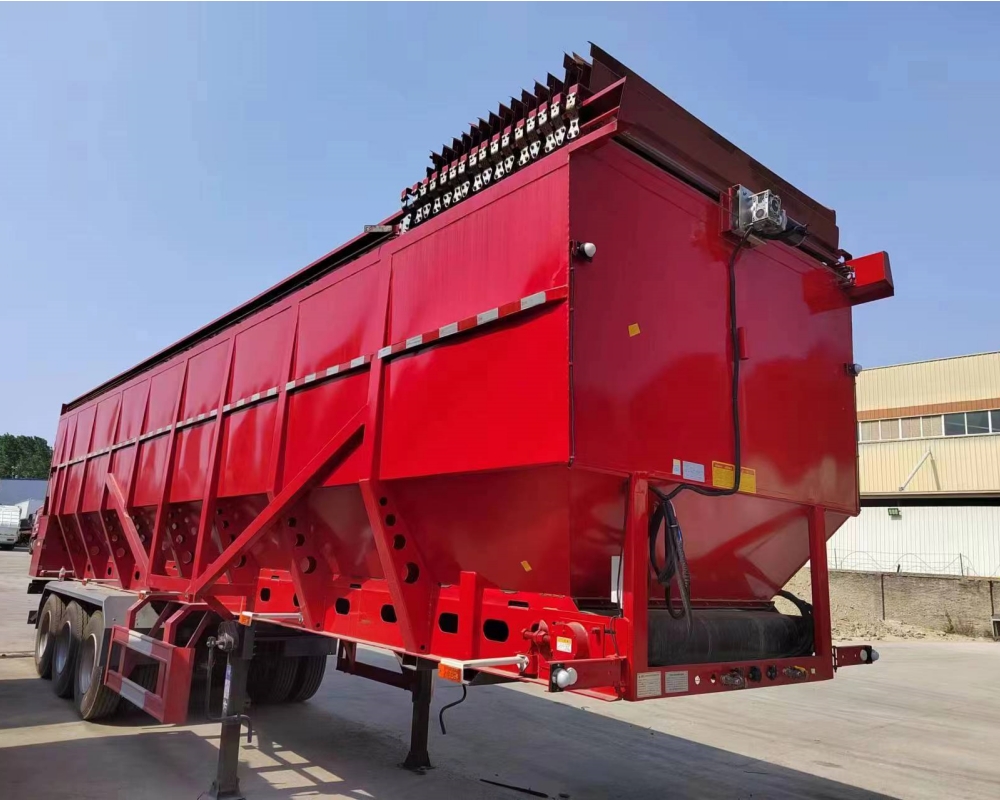

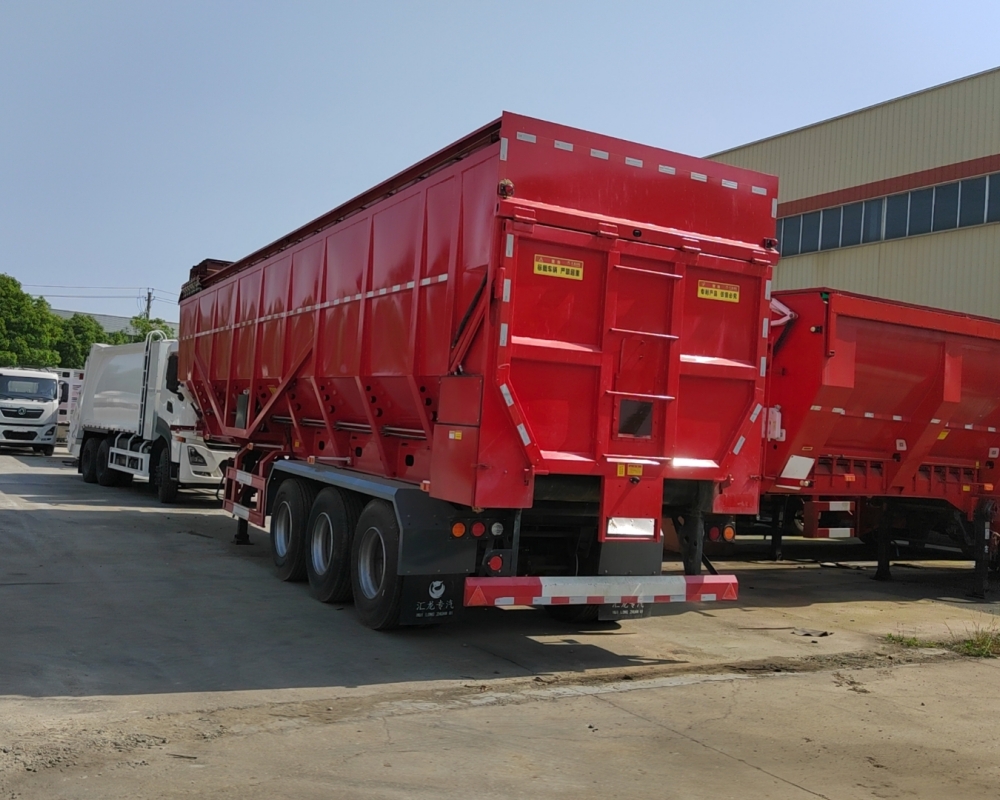

Rear 3 Axles Crawler type dump semi trailer
11 month ago
About us:
The company‘s main products include: crawler type semi trailer transport vehicles, compressed garbage truck series, washing and sweeping vehicle series, aluminum alloy transport vehicle series, etc. The company‘s crawler type semi trailer has more than 40 patents. The company adheres to the path of strong product market adaptability, advanced technology, clean and safe, lightweight materials and structures, energy conservation, and high added value. It is mainly used for transporting grain, soil, and coal mines。
| Overall dimensions(mm) | 9500,9000,8500×2550,2500×3950,3750,3550,3350 |
| Cargo size (mm) | 9300,8800,8300×2400,2350×2200,2000,1800 |
| Front/rear suspension (mm) | -/1720,-/1500,-/1300 |
| Wheelbase (mm) | 3710+1310+1310,3680+1310+1310,3380+1310+1310 |
| Tire size | 425/65R22.5,385/65R22.5 |
| Approach angle/departure angle (°) | -/26,-/32 |
| Total mass (Kg) | 40000 |
| Rear wheelbase (mm) | 2040/2040/2040 |
| Unloading method | conveyer belt |
| Rated load capacity (Kg) | 32900,32200 |
