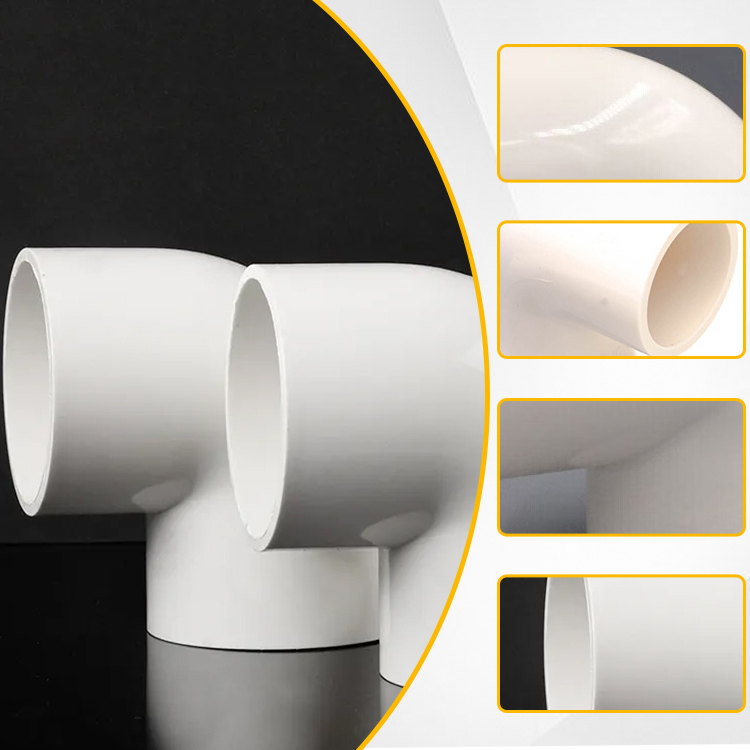

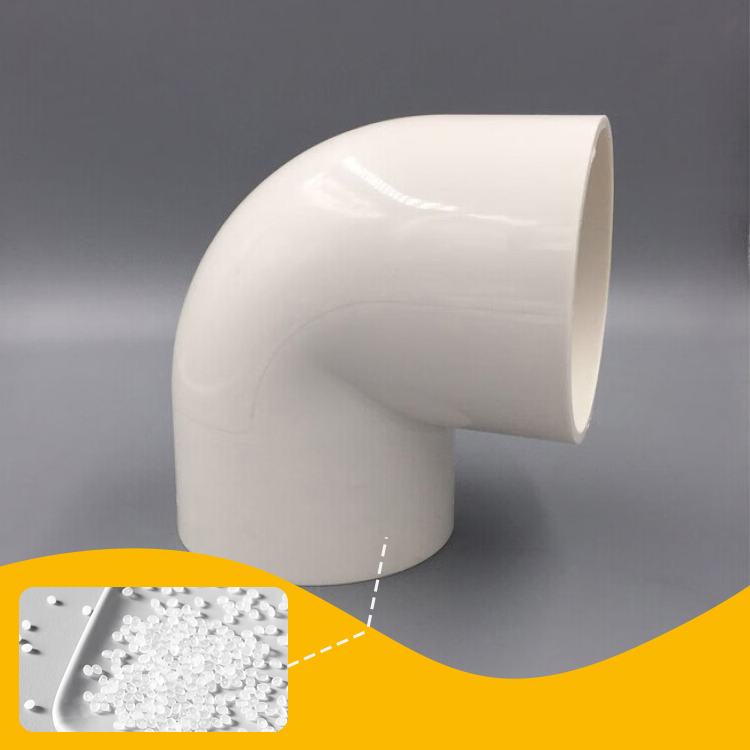

90 Degree PVC Elbows

PVC (polyvinyl chloride) 90 degree elbow is a commonly used pipe accessory used to change the direction of pipes, typically used at bends in pipeline systems. The design of this elbow allows the fluid to smoothly turn 90 degrees inside the pipeline, reducing flow resistance and avoiding turbulence, thereby protecting the integrity and efficiency of the pipeline system.

Design features:
1. The 90 degree design of PVC pipe fitting ensures the smoothness of pipeline turning and reduces pressure loss.
2. The internal smoothness of the elbow helps to reduce fluid friction and increase flow velocity.
3. Usually equipped with standard size interfaces for easy connection with other pipes or fittings, such as PPR pipe, HDPE pipe, PEX pipe, etc.

Installation steps:
1. Measure and determine the installation position and angle of the elbow.
2. Use appropriate tools to cut the pvc pipe to the required length.
3. Clean the pvc water pipe ports to ensure that there are no impurities affecting the sealing effect.
4. Apply an appropriate amount of PVC adhesive to the interface between the pipeline and elbow.
5. Quickly and accurately insert the elbow into the pipeline and maintain it for a period of time to ensure that the adhesive solidifies.

Main application scenarios
1.Construction engineering (houses, construction sites, steel building, etc.): In construction engineering, PVC 90 degree elbows are mainly used in drainage and ventilation systems. They can connect the bends of the pipeline to ensure smooth flow and avoid blockage or damage caused by bending.
2.Industrial sector: In the industrial sector, PVC 90 degree elbows are used in pipeline systems for conveying liquids and gases, such as in industries such as chemical, petroleum, and pharmaceuticals. They can withstand high pressure and corrosive media, maintaining the integrity and safety of pipeline systems.
3.Agriculture: In agricultural irrigation systems, PVC 90 degree elbows are used to connect the bends of pvc irrigation pipe, ensuring smooth water flow, reducing water loss, and improving irrigation efficiency.

4.Wire and cable protection: In wire and cable laying, transparent PVC 90 degree large elbows can replace traditional 90 degree right angle small elbows because they have a large curvature and no dead corners, making them easy to pull and reducing cable damage.

    In short, PVC 90 degree elbows, as a common pipeline accessory, are designed and applied to meet the demand for changes in fluid flow direction in pvc pipe systems. Choosing and installing 90 degree elbows pvc pipe fitting correctly not only ensures the normal operation of the pipeline system, but also effectively extends the service life of the entire system. When carrying out relevant engineering design and construction, full consideration should be given to the characteristics of PVC materials and the applicable range of elbows to ensure the best effect.
