pengangkut buah sawit MT18
2 year ago

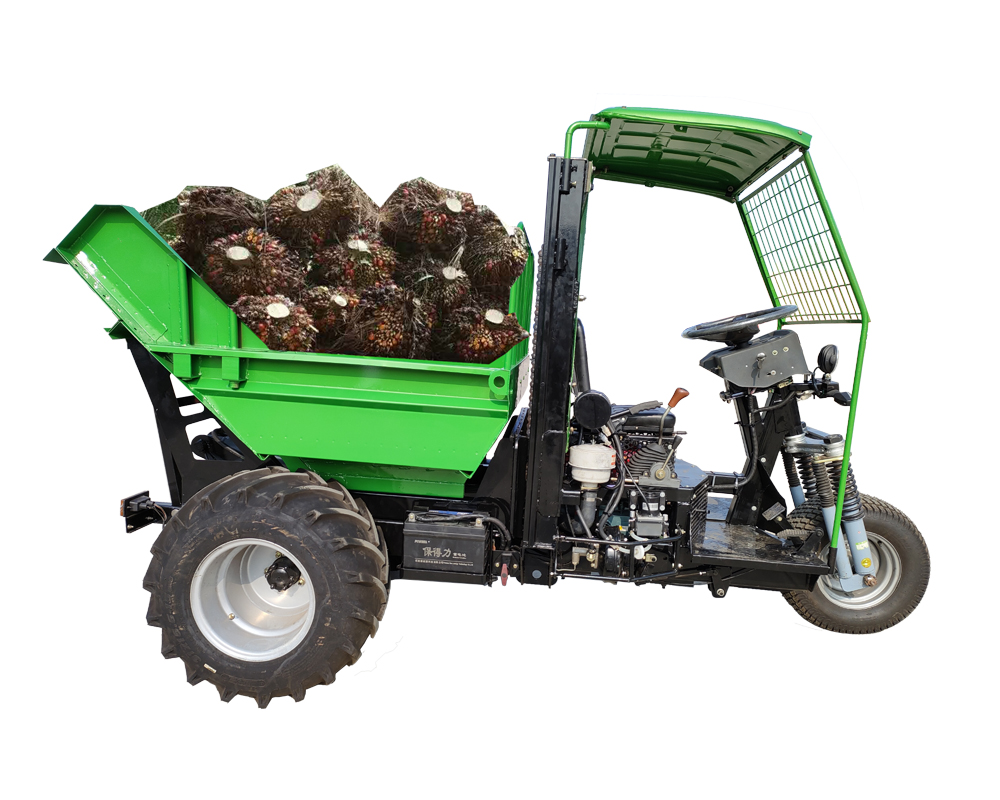

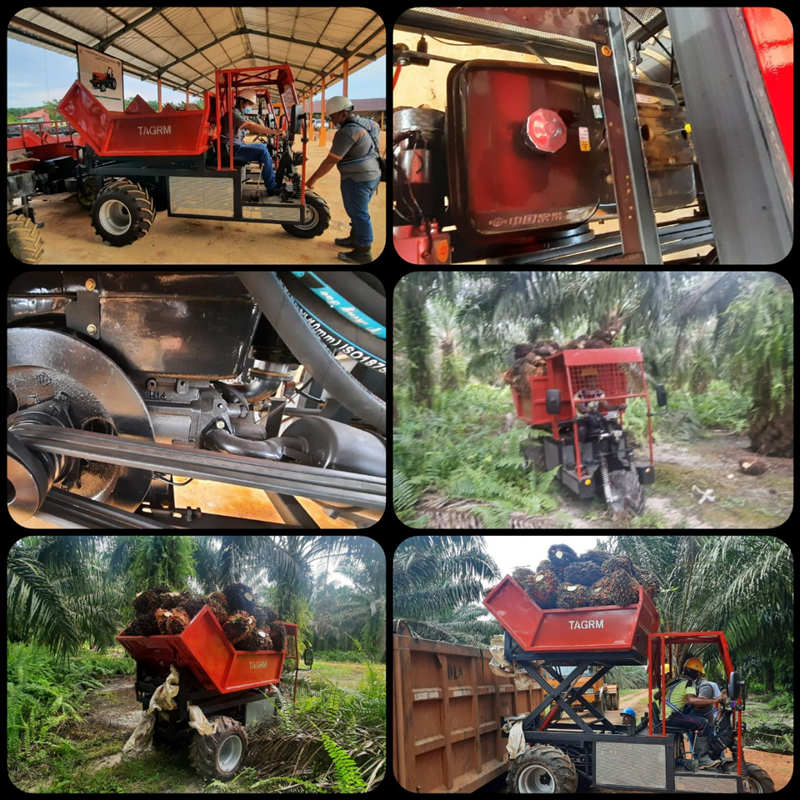

MT30 mini dump truck（Traktor kelapa sawit） with small size, body strong, flexible, strong horsepower and other characteristics. The utility model is especially suitable for transporting crops on non-hardened roads such as farmland, sugarcane forest, palm fields, etc.. It is economical, durable, reliable, simple to maintain, and convenient to operate. The hydraulic lifting car body can be loaded with up to 3000 kg of goods, greatly improving transport efficiency. With deep-grain wide tires, not easy to skid, and not afraid of the muddy road. It is very popular in the orchards of Southeast Asia.
At the same time, TAGRM Co., Ltd. adheres to the principle of quality first, small profits but quick turnover, and provides our customers with adequate preferential treatment.
|
Model |
MT30 |
Brake system |
Oil brake |
|
Drive model |
Rear-wheel drive /
Four-wheel drive
|
Hydraulic |
Multi-way valve |
|
Engine power |
42KW |
Engine model
|
YN490
|
|
Engine model |
CG18M-2 |
Gradeability(°) |
35 |
|
Fuel consumption(g/kw.h) |
≤225 |
Min ground clearance(mm) |
260 |
|
Fuel tank capacity(L) |
50.00 |
Gear shift |
3+1*2 LOW-HIGH |
|
Staring Method |
Electric |
Low shift (Km/h) |
L1:4/L2:9/L3:16/R:5.0 |
|
Oversize(mm) |
5100*2220*2430 |
High shift (Km/h) |
H1:10/H2:26/H3:45/R:14 |
|
Rate Payload(kg) |
3000 |
Rear Tire |
12.5/80-15.3IMP
|
|
Structural weight(kg) |
2990 |
Front Tire |
12.5/80-15.3IMP
|
|
Wheel base(mm) |
3000 |
Cargo box size(mm) |
410×1575×1306
|
|
No loading axle load(kg) |
Front :400 Rear:860 |
Cargo volume(m³) |
0.574 |
|
Rear tread(mm) |
1386 |
Height of discharge (mm) |
1350 |
