zinc fume extraction equipment

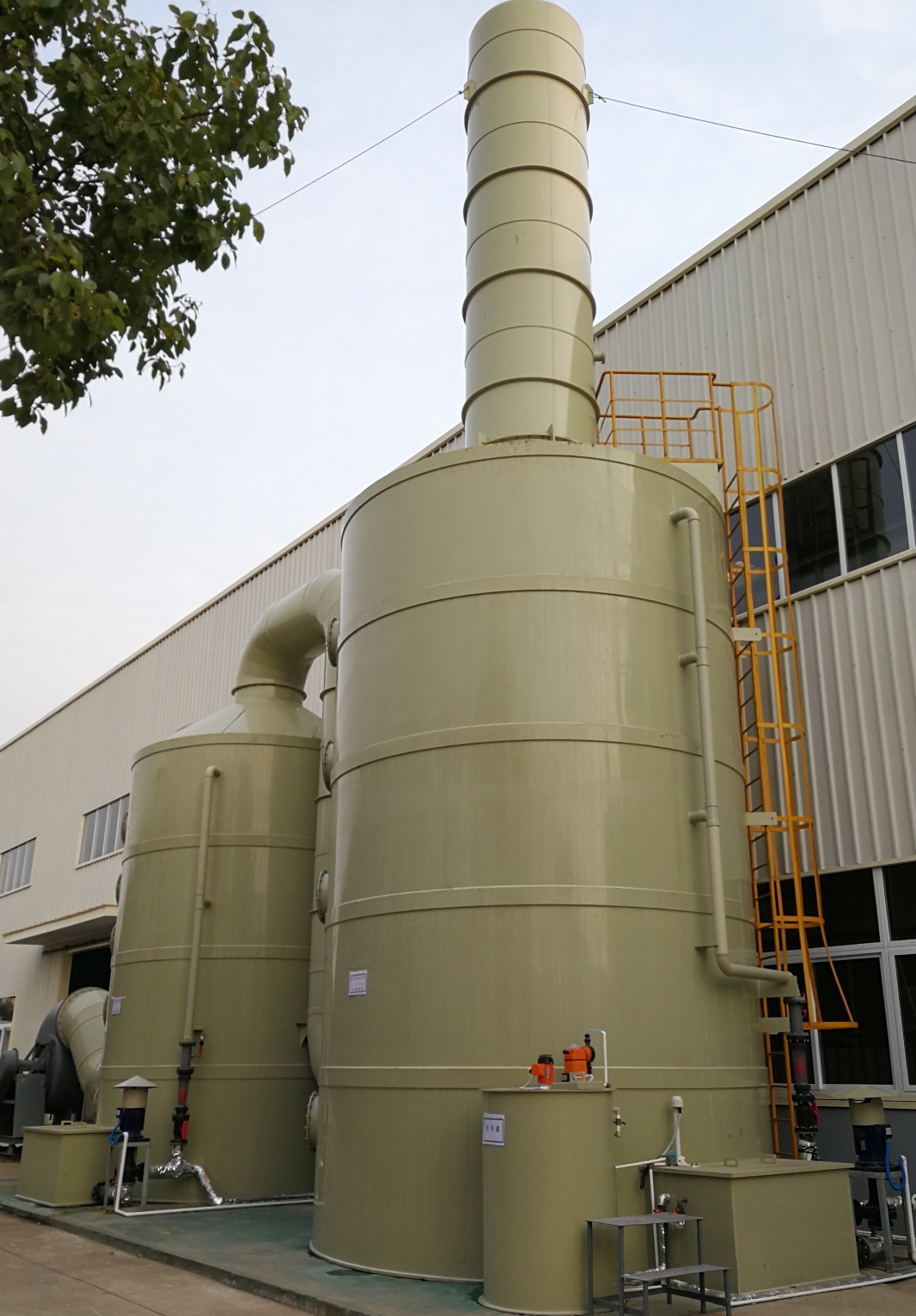

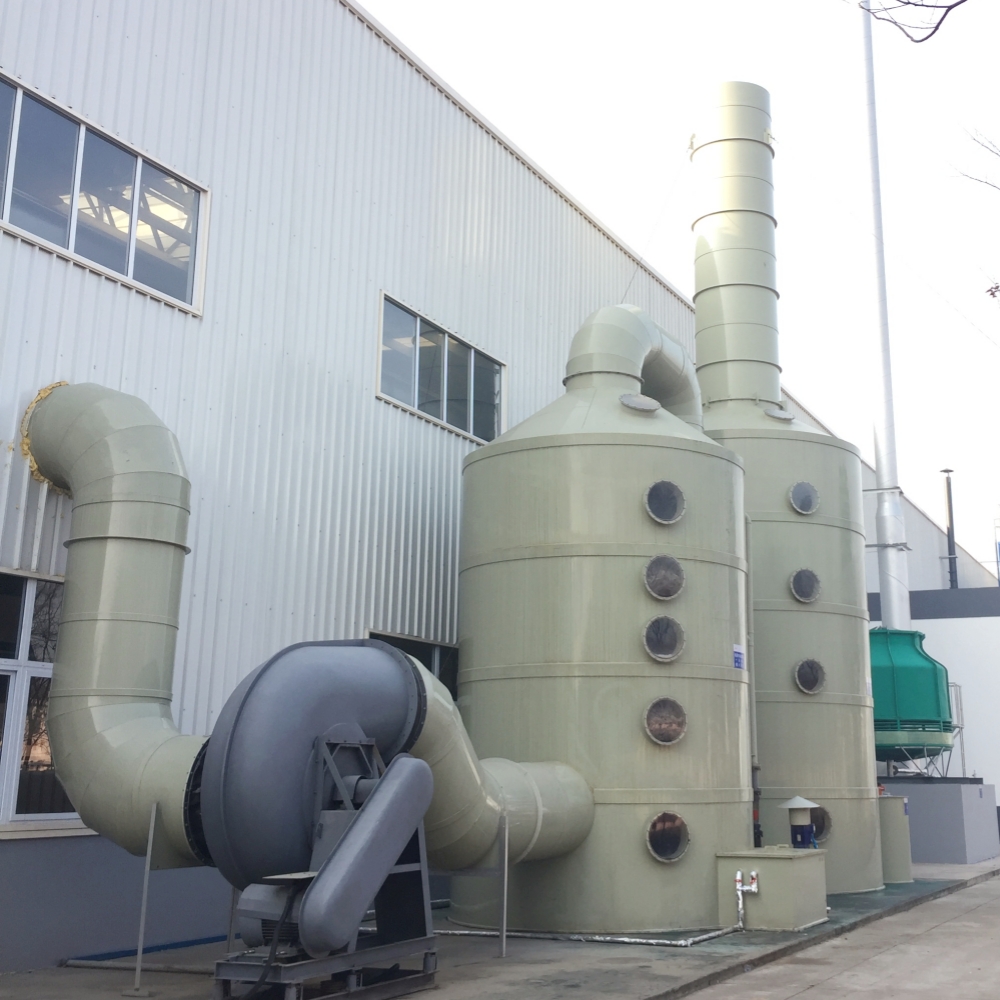

The integrated zinc fume and acid mist treatment equipment is an environmental protection equipment specially used to treat zinc fume, acid mist and other waste gases generated during the hot-dip galvanizing process. This equipment combines a variety of technologies, including absorption, electric capture, spraying, etc., to achieve the purpose of efficiently removing harmful substances in waste gas.

Following the principle of high-voltage discharge, the air is broken down in the "electric capture chamber" by direct current high voltage electricity, so that the surface of zinc fume and acid mist droplets is charged. Under the action of the electric field of the "electric capture chamber", the surface charged acid mist droplets and zinc fume dust are captured and collected on the anode plate, and then the plate is desorbed and rinsed by circulating solution to complete the capture and collection of zinc fume and acid mist. The desorbed and collected circulating liquid is regularly discharged to the transfer pool, and the ratio is used as a plating liquid tank liquid for resource replenishment and reuse.
