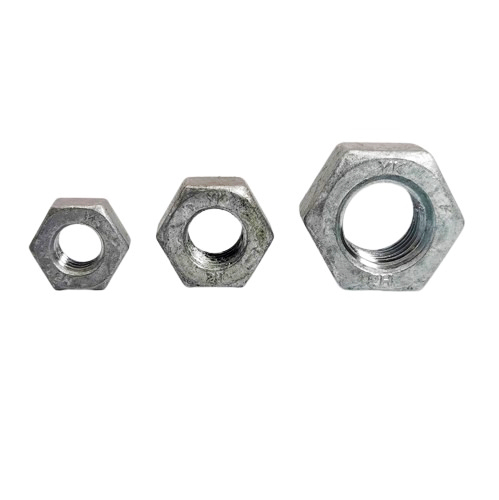

ASTM A194/A563 Heavy Hex Nut
Yokelink Hex nuts are used to fasten attachments to machine bolts, carriage bolts, insulator pins and other bolts. Galvanized hex nuts are tapped oversize to compensate for the corrosion resistant coating on the bolts.
The ASTM A194 specification covers carbon, alloy, and stainless steel nuts intended for use in high-pressure and/or high-temperature service. Unless otherwise specified, the American National Standard Heavy Hex Series (ANSI B 18.2.2) shall be used. Nuts up to and including 1-inch nominal size shall be UNC Series Class 2B fit. Nuts over 1-inch nominal size shall be either UNC Series Class 2B fit or 8 UN Series Class 2B fit. High strength ASTM A194 grade 2H nuts are common in the marketplace and are often substituted for ASTM A563 grade DH nuts due to the limited availability of
DH nuts in certain diameters and finishes.

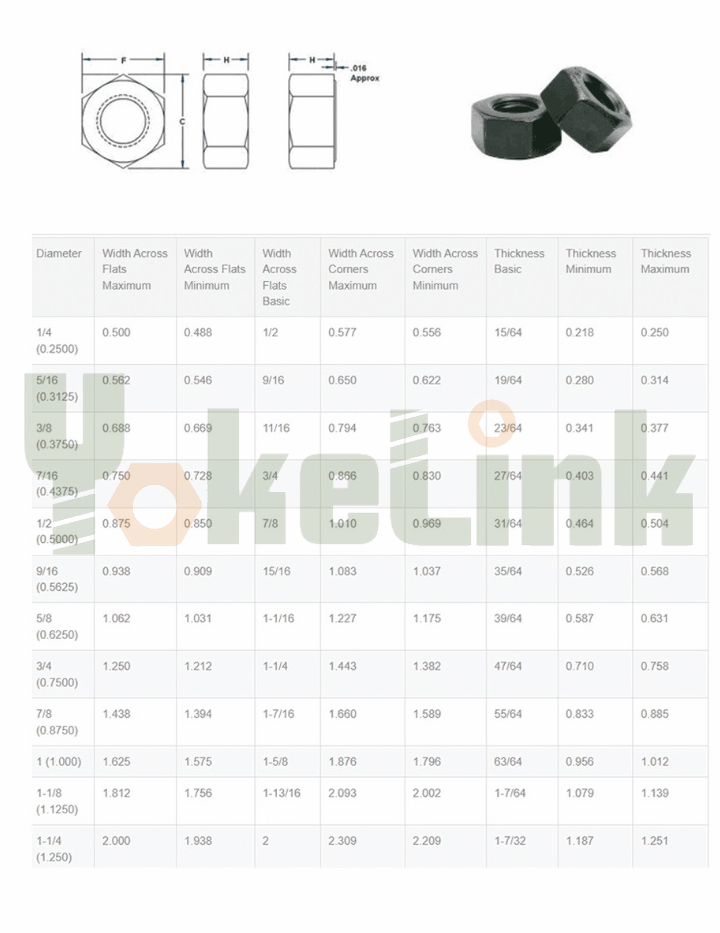

ASTM A194 Grade 2H Nut Dimensions

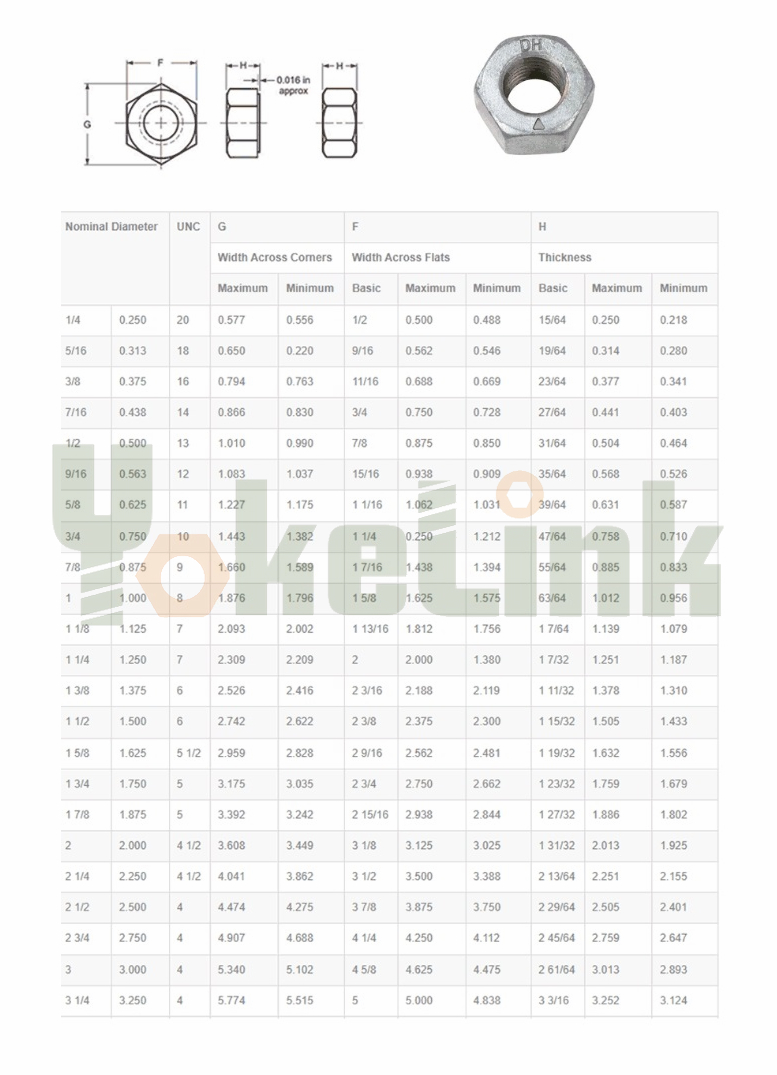

ASTM A563 DH Nut Dimensions
Other size and fine thread square nuts are available. 304 & 316 Stainless Steel square nuts are available per the request. When you need square nuts refer to above our catalog. We offer them in a full selection of sizes, provide the size, diameter or part number to get a quote on these bolts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
