J6412 N100 Fanless Mini PC with Dual HDMI DP

Product Details

CPU: Intel Celeron J6412 (4 core 4 threads, 1.5M Cache, 2.00GHz, up to 2.60GHz, TDP: 10W)
          Intel Celeron J6413 (4 core 4 threads, 1.5M Cache, 1.80GHz, up to 3.00GHz, TDP: 10W)
          Intel N100 (4 cores 4 threads, 6M Cache, up to3.40GHz, TDP: 6W)
BIOS: American
Memory(RAM): 1* Single Channel DDR4,1*260-pin SO-DIMM, Max Up to 16GB/32GB DDR4
Hard Disk: Support 1* M2 NVME 2280 SSD +1*mSATA SSD + 1* 2.5 inch SATA SSD / HDD
Triple Display: Support 4K, 2* HDMI + 1* DP
Ethernet port: 2x GbE RJ45 Realtek 8111H
I/O Ports: 2* USB 2.0+2* USB 3.0 2* DB9 RS232 1* Power on/off, 2* HDMI +1* DP 2* RJ45 1* SPK+ 1* MIC 1* DC-IN
WIFI: 1*M.2 2230 for WiFi 6& BT
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V 3A/5A
OS Supported: Win 11/10/8 / Linux, Ubuntu, Centos, etc.
Custom Supported: DC 24V, Din Rail, Chassis Color, etc.
Features: Support WiFi, 3G/4G LTE, Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC power loss(Auto Power on).
Operating Temperature: -20~60℃
Storage Temperature: -30~70℃(15℃-35℃ Recommended)
Relative Humidity: 10%~90% ℃ Relative humidity, No condensation

Gallery

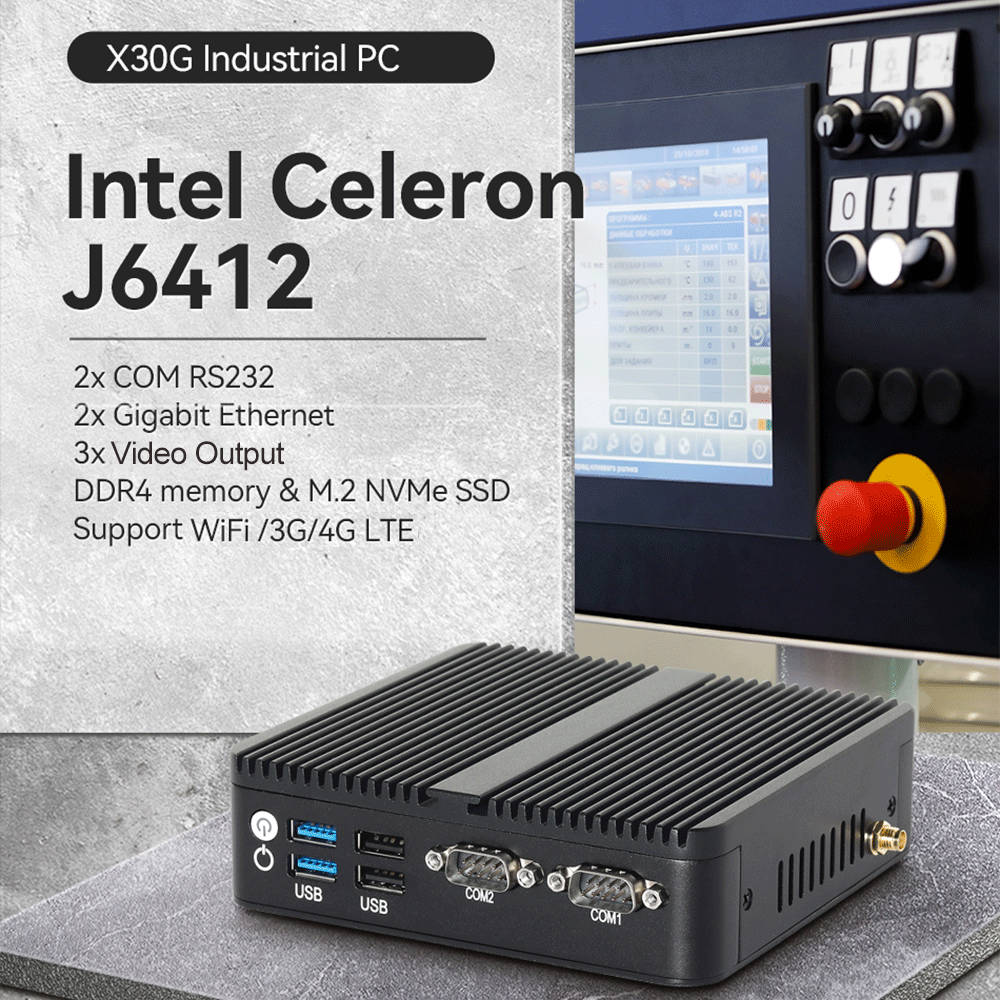

This dual LAN dual COM mini PC comes with Intel Celeron J6412, J6413, or N-series N100. It delivers high-performance
but with a lower power draw than the larger traditional desktops.

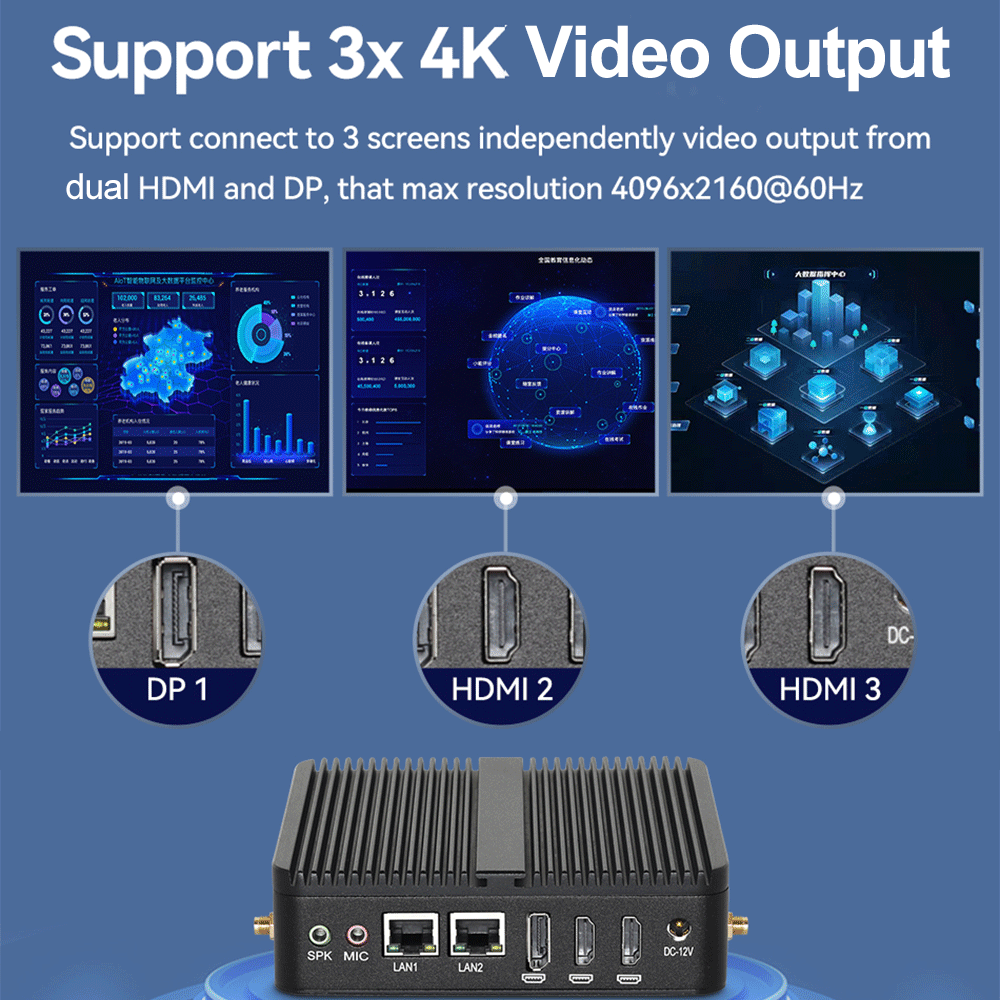

This small industrial computer comes with 2*HDMI and 1* DP ports, which support connecting 3 screens with
three-line synchronous or independent display. The maximum resolution is 4096x2160 60Hz.

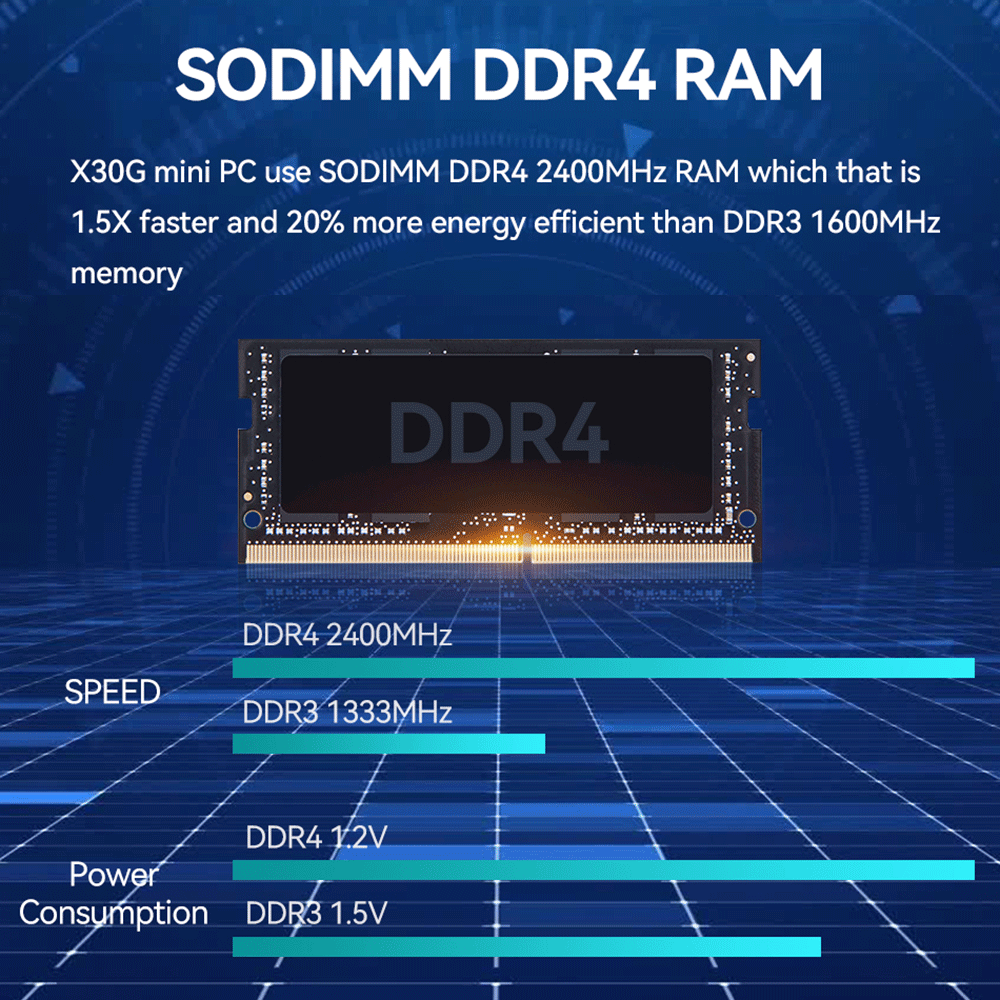

There is a DDR4 SODIMM slot on the motherboard. It supports 2400MHz RAM which is 1.5X faster and
20% more energy efficient than DDR3 1600MHz.

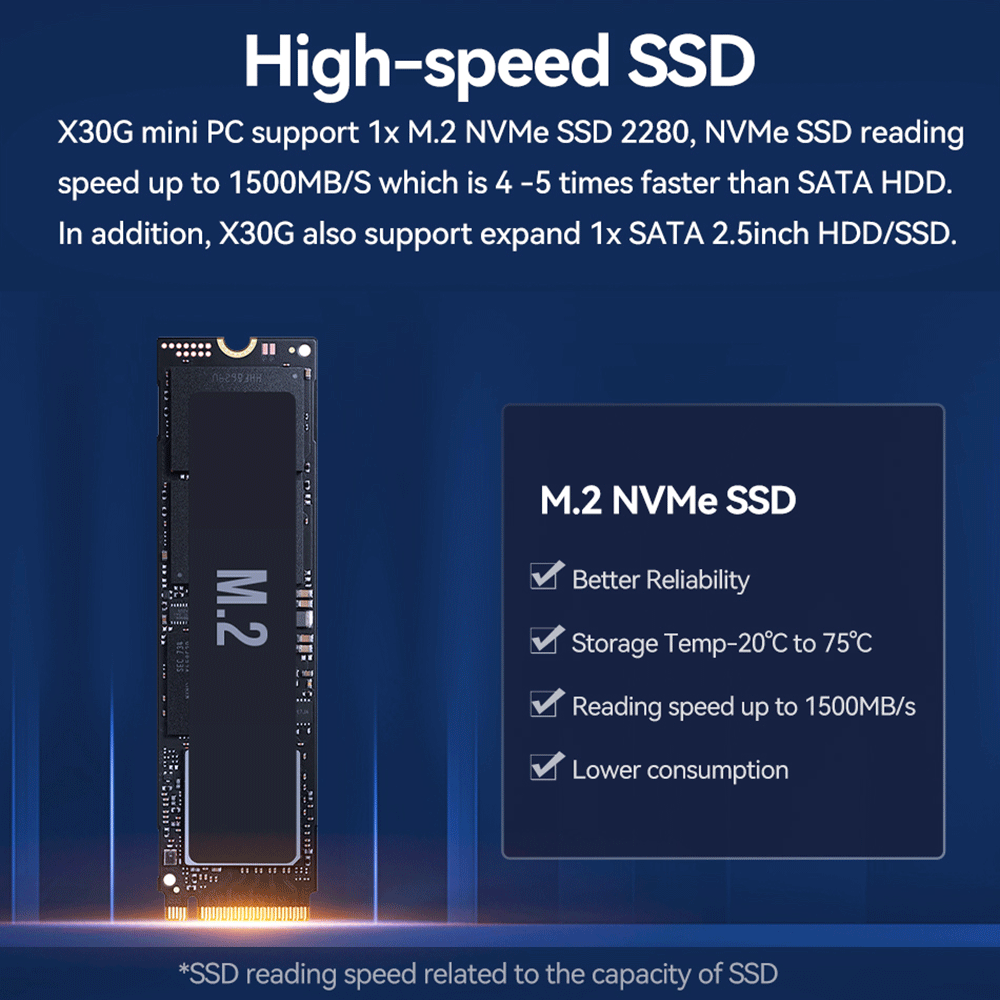

This J6412 N100 Mini PC supports 1x M.2 NVMe 2280 SSD. NVMe SSD reading speed can be up to 1500MB/S which
is 4-5 times faster than mSATA SSD. In addition, an extra 2.5-inch SATA can be installed.

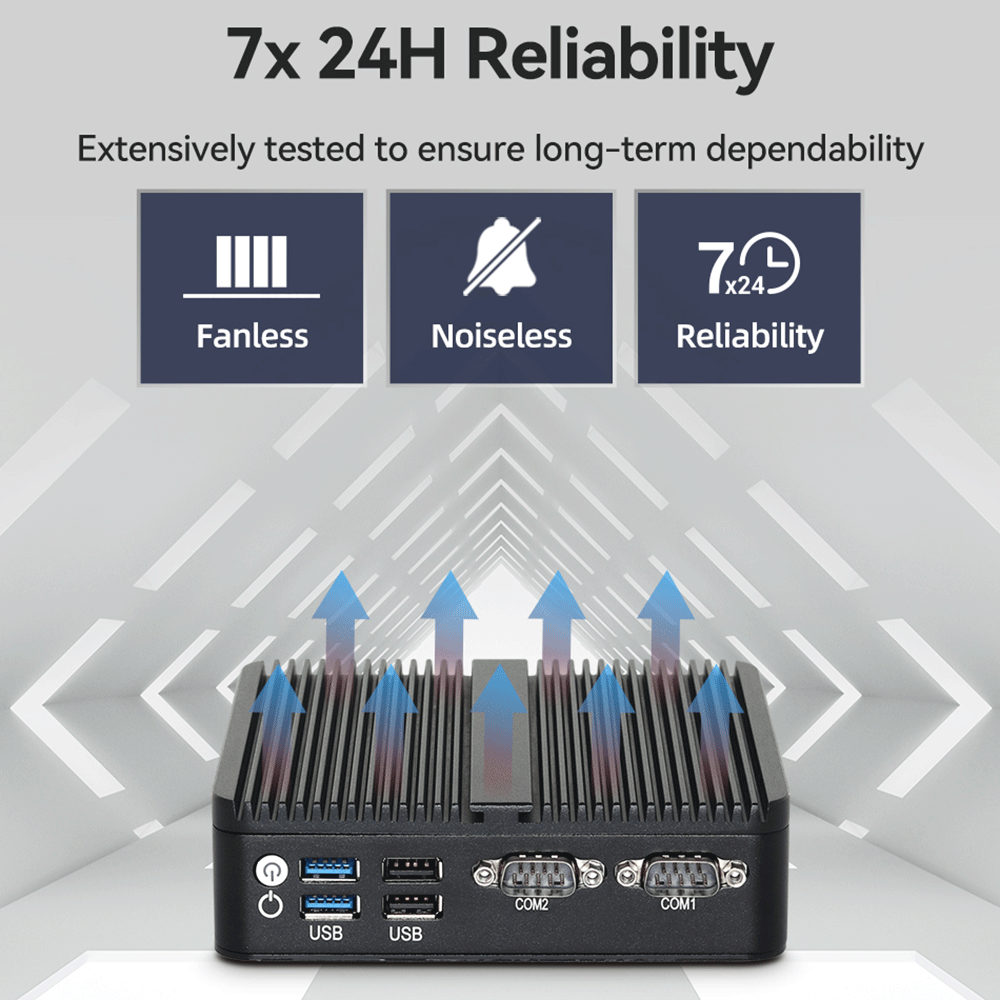

The cooling system for this mini PC is fanless passive cooling, which makes it work quietly compared to traditional computers, so it is suitable for environments where noise levels need to be kept low, such as libraries, bedrooms, or home theaters. And it supports 7/24 hours running.
